KVM extender Transmitter & receiver ROLINE 14.01.3363 HDMI Wired 20000 m

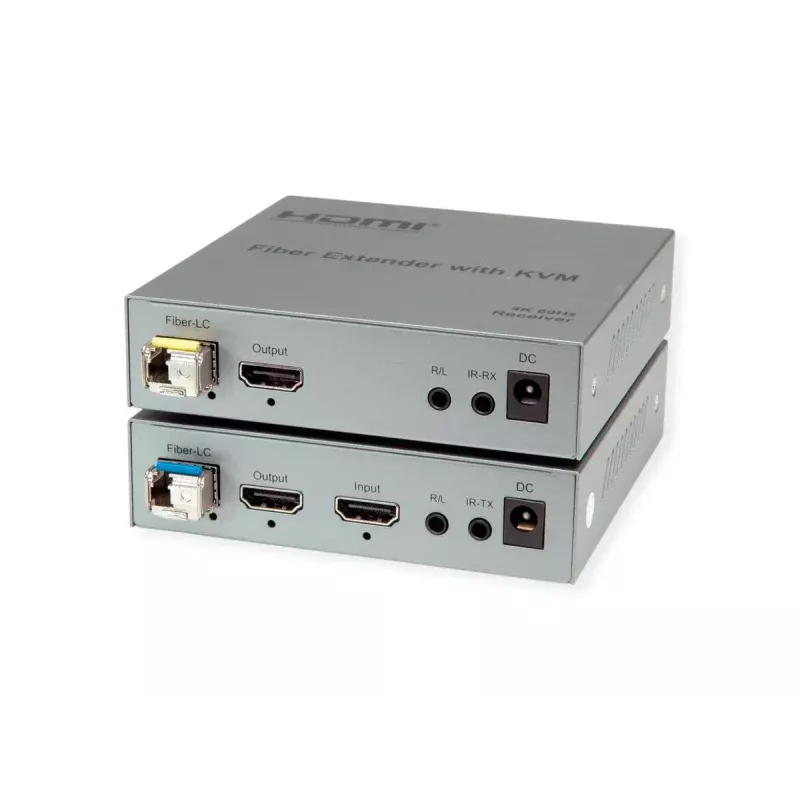

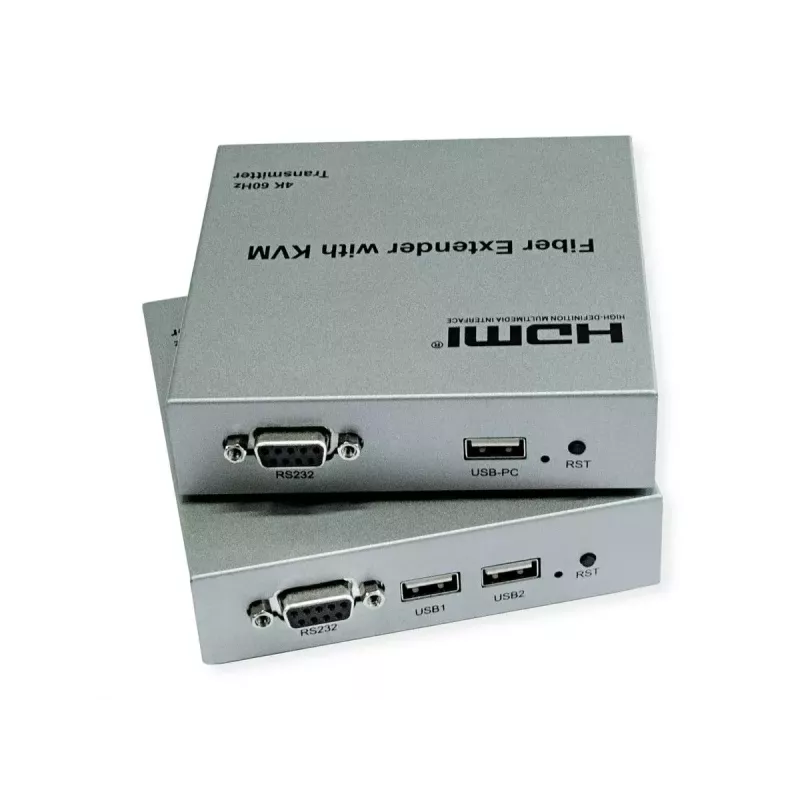

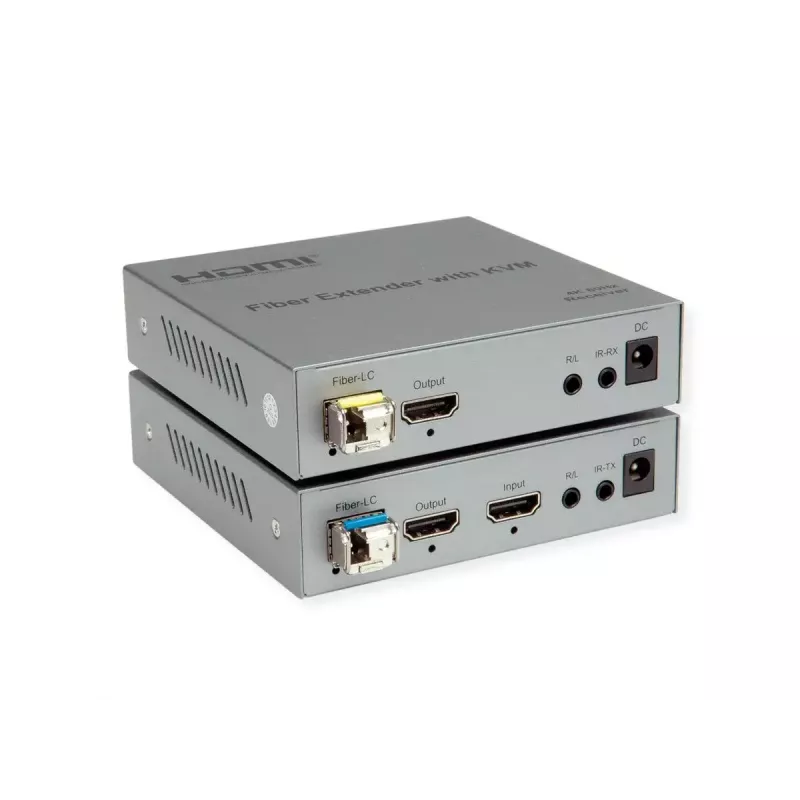

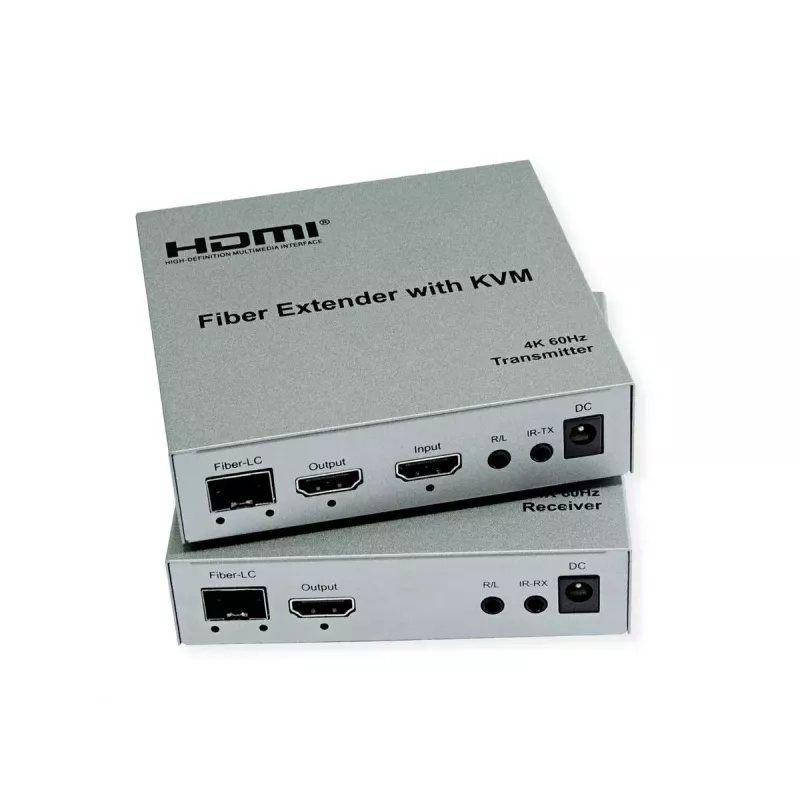

The ROLINE 14.01.3363 KVM extender transmits HD audio and video together with USB signals over a single bidirectional fiber optic cable up to 20 km. It comprises a transmitter and a receiver with HDMI connectors and supports remote control of a computer system from a distance using an HDMI 4K monitor, a USB keyboard and a USB mouse. The transmitter has a compact footprint (10.6 cm x 10.6 cm x 1.7 cm) for easy integration into installations that require long-distance KVM extension.

Advantages

This wired KVM extender delivers high-quality HDMI video and audio alongside USB signal transmission over a single fiber link, enabling control of a host computer up to 20,000 m away. The solution uses bidirectional fiber optics to preserve signal integrity across long distances while the compact transmitter design simplifies installation in constrained spaces. HDMI connectivity on both transmitter and receiver ensures compatibility with standard 4K HDMI displays.

Suitable for

• Remote server or workstation control in data centers
• Control rooms and broadcast facilities requiring long-distance signal extension
• Industrial and security environments where equipment must be isolated from operator consoles
• Audio-visual installations needing centralized source control over fiber

Key specifications

• Model: ROLINE 14.01.3363 (Transmitter & Receiver)

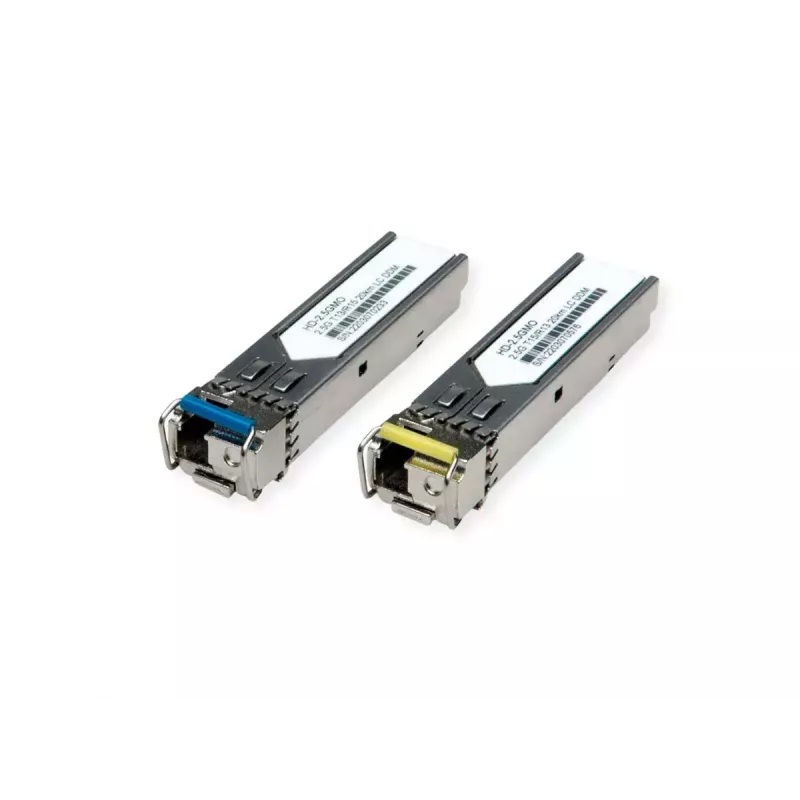

• Maximum range: 20,000 m (20 km) over single-fiber bidirectional optic cable
• Video/audio: HDMI (supports up to 4K displays)
• USB: USB keyboard and mouse support via USB signal extension
• Transmitter dimensions: 10.6 cm x 10.6 cm x 1.7 cm
• Connectivity: HDMI on both transmitter and receiver
• Brand/MPN/EAN: ROLINE / 14.01.3363 / 7630049631977

How to use

Install the transmitter near the host computer and connect its HDMI output to the computer’s video output and USB ports to the keyboard/mouse USB ports if required. Connect the receiver to the remote console’s HDMI display and USB peripherals. Link the transmitter and receiver using a compatible bidirectional single-fiber optic cable rated for the required distance. Power both units according to the manufacturer’s instructions and verify video, audio and USB connectivity from the remote console to the host system.

Recommendations

For reliable performance, use single-fiber bidirectional cables and components specified for long-distance HDMI/USB extension, keep fiber connectors clean, and follow ROLINE’s installation and grounding guidelines. Verify cable type and quality to match the 20 km distance and ensure endpoint equipment supports required HDMI resolutions.
