KVM Console Digitus 17 inch HD LCD 8-Port VGA German Keyboard

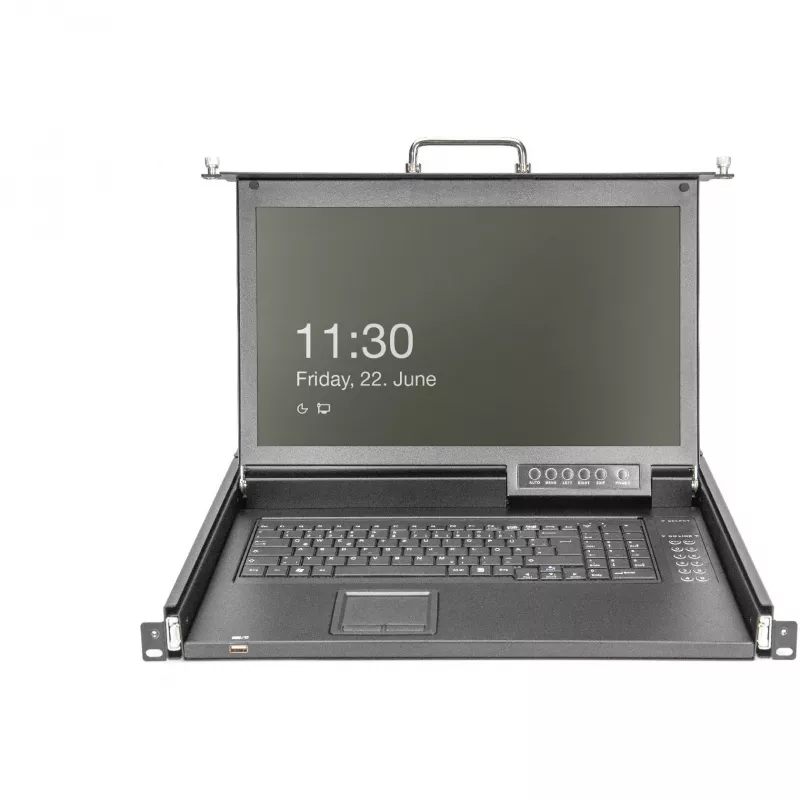

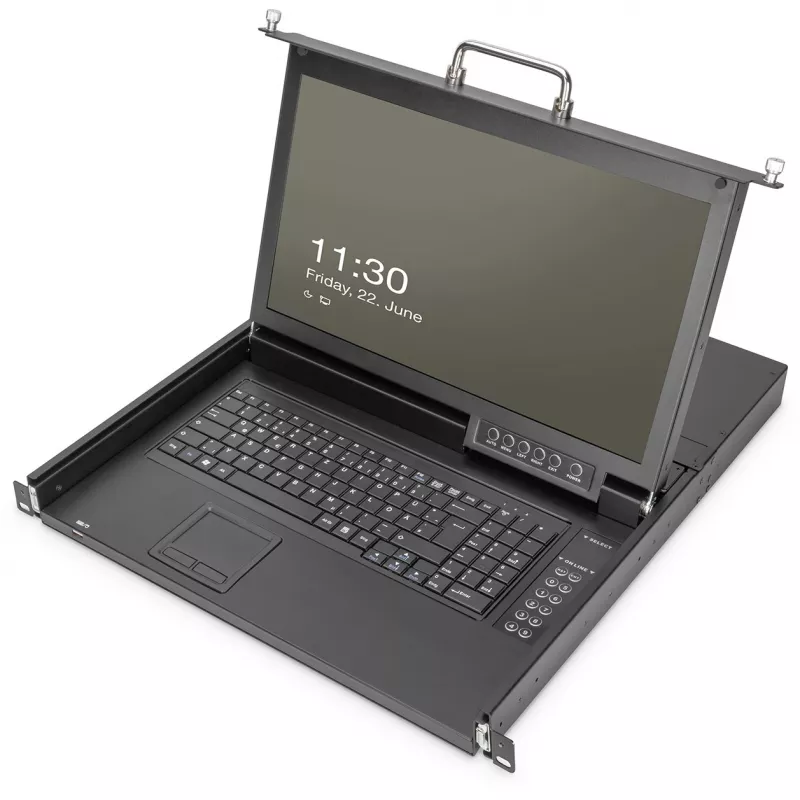

The Digitus 17" HD LCD KVM console provides a space-saving, rack-mountable solution for managing multiple servers from a single unit. It features a 43.2 cm (17") TFT monitor with anti-reflective, shatter-proof protective glass, Full HD 1080P resolution, a contrast ratio of 1000:1 and support for 16.7 million colors. The console supports cabinet depths from 800 mm to 1200 mm, can be fully pulled out of the rack and the display can be tilted by up to 120 degrees. All necessary KVM cables are included and the unit includes a German-layout keyboard, a touch-board mouse with two function keys and an 8-port VGA adapter.

Advantages

The Digitus console combines a high-resolution 17" TFT panel with rugged protective glass and a compact, pull-out rack design to maximize usable rack space by up to 85%. Integrated status LEDs and a USB peripheral port in the console area simplify connection monitoring and peripheral attachment. The device is modular and can be cascaded for expanded control of additional systems.

Suitable for

• Server rooms and data centers managing multiple servers
• Racks with depths between 800 mm and 1200 mm
• Environments that require a compact, rack-mounted KVM solution
• IT administrators needing centralized console access with VGA-connected systems

Key specifications

• Model: KVM Console Digitus 17" HD LCD (DS-72220-2GE)
• Display: 43.2 cm (17") TFT with anti-reflective, shatter-proof protective glass
• Resolution: Full HD 1920 x 1080 (1080P)
• Contrast ratio: 1000:1
• Color support: 16.7 million colors
• Compatibility: Fits cabinets 800–1200 mm depth
• Connectivity: 8-port VGA adapter included, LED status indicators
• USB: 1x USB peripheral port in console area; USB keyboard and mouse ports
• Keyboard: German layout
• Weight: 13.91 kg
• Color: Black
• MPN / EAN: DS-72220-2GE / 4016032483328

How to use

Install the console into a compatible server rack (800–1200 mm deep) and secure it according to rack-mounting instructions. Pull the console out of the cabinet to access the keyboard, touch-board mouse and display; tilt the TFT screen up to 120 degrees for a comfortable viewing angle. Connect the included KVM cables from the 8-port VGA adapter to the target servers and use the LED indicators to verify connections. Attach USB peripherals to the console’s USB port as needed. Use the keyboard and touch-board mouse to navigate connected systems and switch between targets using the KVM switching method provided by the 8-port adapter.

Recommendations

For reliable operation, mount the console in a rack with the specified depth range, ensure adequate ventilation around the unit, and handle the display glass with care. Use the included KVM cables and the provided 8-port VGA adapter to maintain signal integrity; if cascading multiple consoles, follow manufacturer guidance to prevent configuration conflicts.
