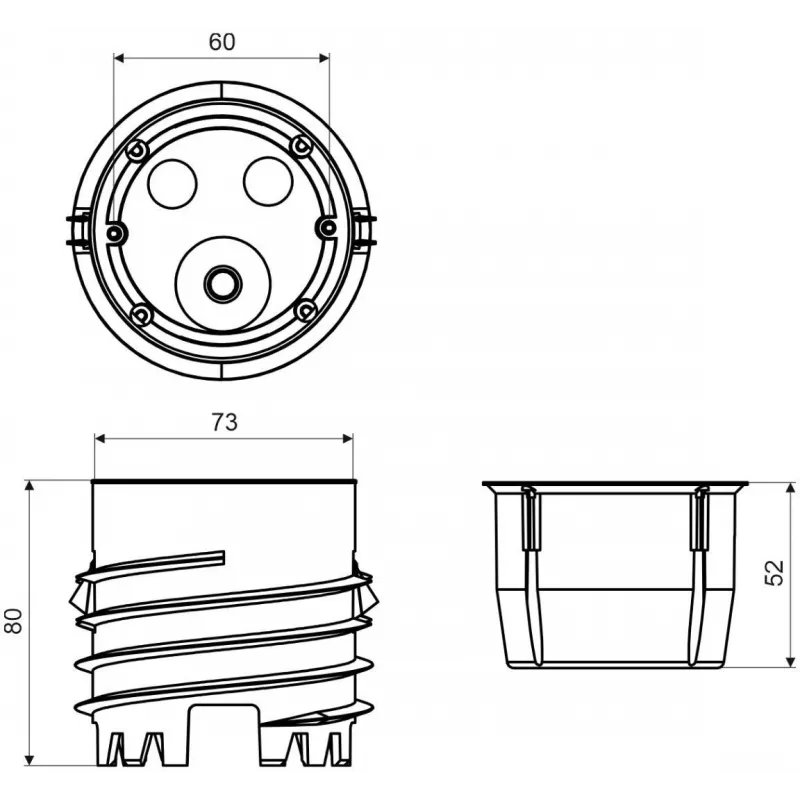

KOPOS KEFZ 80 KB Electrical Installation Box for Cable Termination, IP65, Black

The KOPOS KEFZ 80 KB is a high-quality electrical installation box designed for cable termination and final insulation. Manufactured from durable polypropylene (PP), this box offers excellent protection for cable joints and terminations in demanding environments. With an IP65 rating, it is dust-tight and protected against water jets, making it suitable for both indoor and outdoor applications. The box features four membrane cable entries accommodating cables up to 18 mm diameter, and a snap-on lid for quick and secure closure. It is UV-resistant, halogen-free, and self-extinguishing, ensuring long-term reliability and safety.

Advantages

Robust polypropylene construction provides high impact resistance and durability. IP65 protection ensures reliable performance in wet or dusty conditions. Membrane glands allow easy cable entry without the need for additional sealing. Snap-on lid simplifies installation and maintenance. UV-resistant material prevents degradation from sunlight exposure. Halogen-free composition reduces toxic smoke emission in case of fire.

Suitable for

• Cable termination and final insulation in electrical installations
• Junction boxes for lighting, power, and control circuits
• Outdoor and indoor applications requiring IP65 protection
• Industrial, commercial, and residential environments

Key specifications

• Product Type: Electrical Installation Box
• Application: Cable Termination / Final Insulation
• Ingress Protection: IP65
• Material: Polypropylene (PP)
• Colour: Black (RAL 9005)
• Number of Cable Entries: 4
• Cable Entry Type: Membrane Glands
• Max Cable Diameter: 18 mm
• Temperature Range: -25 °C to +60 °C
• UV Resistance: Yes
• Halogen-Free: Yes
• Flame Retardancy: Self-extinguishing
• Mounting Type: Surface Mount
• Lid Type: Snap-on / Push-on
• Internal Depth: 45 mm
• Standards: EN 60670-1, EN 60670-22

Recommendations

For optimal performance, ensure cables are properly stripped and inserted into the membrane glands. The box should be mounted on a flat surface using appropriate screws (not included). Suitable for use with cables up to 18 mm diameter. Always follow local electrical codes and regulations.
