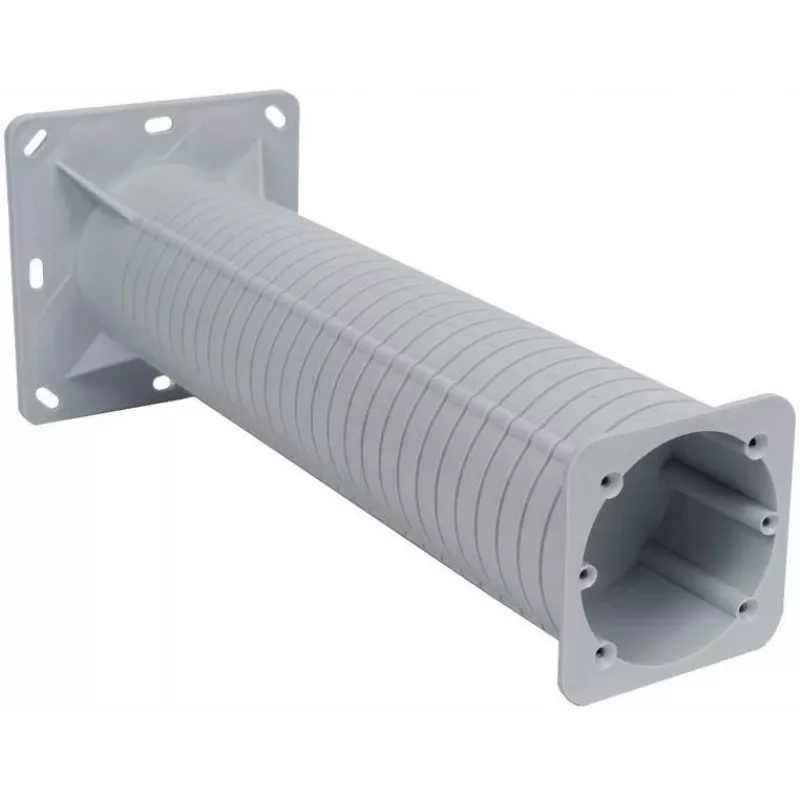

KOPOS KEZ-300_KB Flush-Mounted Junction Box for Thermal Insulation Systems (ETICS/EIFS) - Orange, 300mm Insulation Thickness

The KOPOS KEZ-300_KB is a professional flush-mounted junction box designed specifically for use in External Thermal Insulation Composite Systems (ETICS/EIFS). Manufactured from halogen-free polypropylene, this box provides a secure and durable enclosure for electrical installations within thick insulation layers. With a maximum insulation thickness of 300 mm and adjustable depth, it offers flexibility for various construction requirements.

Advantages

This junction box ensures reliable performance in demanding environments. Its halogen-free material composition enhances safety by reducing toxic smoke emission in case of fire. The box is UV-stable, making it suitable for long-term outdoor exposure. Pre-drilled cable entries (4x Ø20mm, 2x Ø25mm) simplify installation, while the IP30 rating (before sealing) provides basic protection against dust and moisture.

Suitable for

• Flush-mounted electrical installations in ETICS/EIFS facades
• New construction and renovation projects with thick insulation layers
• Applications requiring halogen-free and UV-stable components
• Installations where adjustable depth is needed to match insulation thickness

Key specifications

• Brand: KOPOS
• Model: KEZ-300_KB
• Material: Halogen-free Polypropylene (PP)
• Max Insulation Thickness: 300 mm

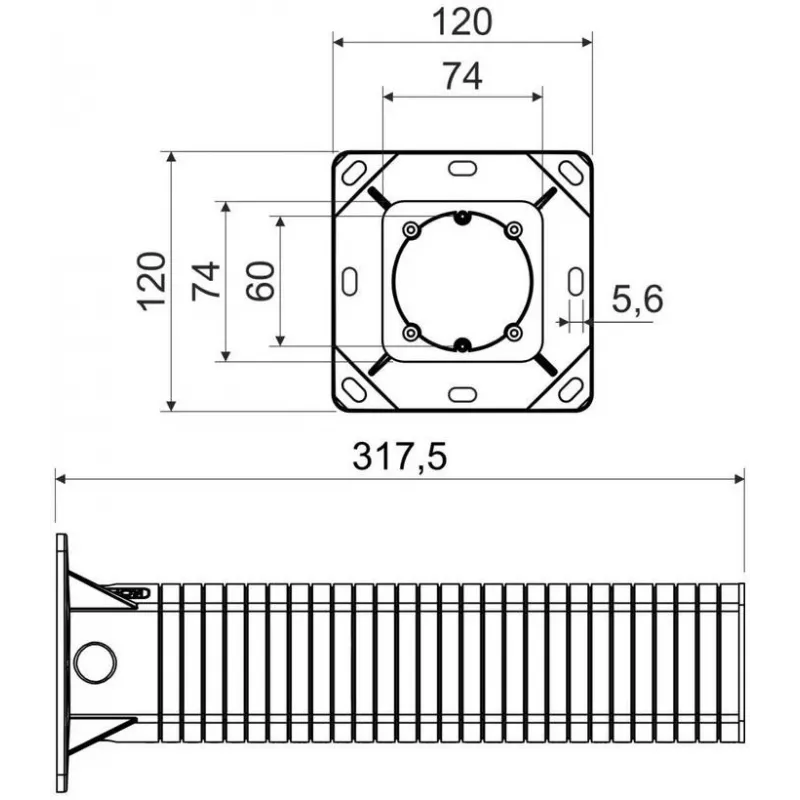

• External Dimensions: 120 x 120 mm
• Internal Usable Dimensions: 110 x 110 mm
• Protection Rating: IP30 (before sealing)
• Temperature Resistance: -25 °C to +60 °C
• Glow-wire Test: 850 °C
• Load Capacity: 40 N
• Cable Entries: 4x Ø20mm, 2x Ø25mm (pre-drilled)
• Adjustable Depth: Yes
• Colour: Orange
• Halogen-free: Yes
• UV Stability: Yes
• Standards: EN 60670-1, EN 60670-22

Recommendations

For optimal performance, ensure proper sealing after installation to achieve the desired IP rating. This junction box is ideal for use with KOPOS compatible accessories and should be installed by qualified electricians following local regulations.
