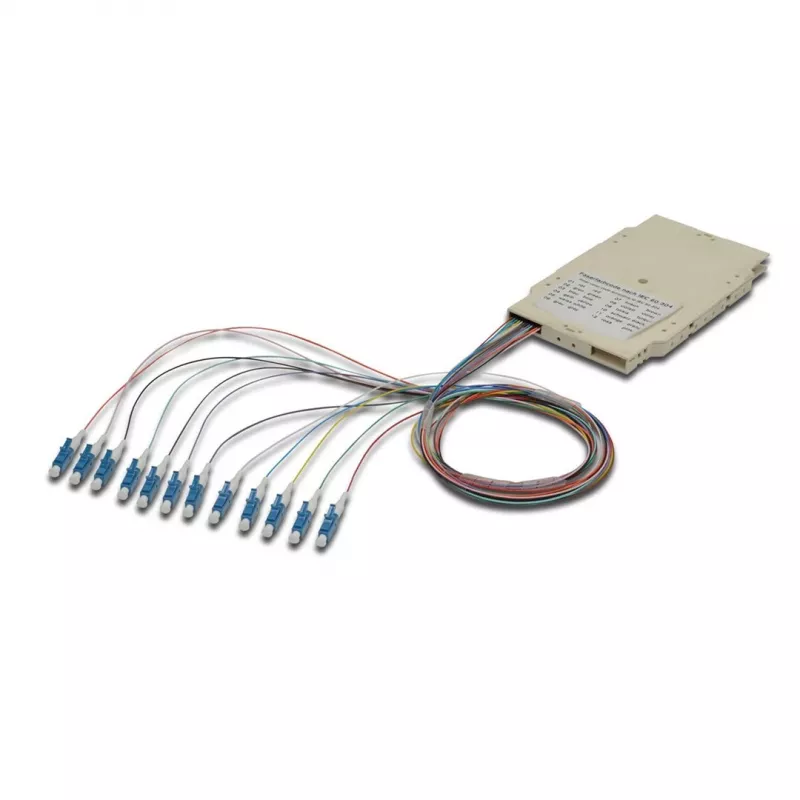

Splice cassette with 12 pigtails Digitus A-96533-02-UPC-4

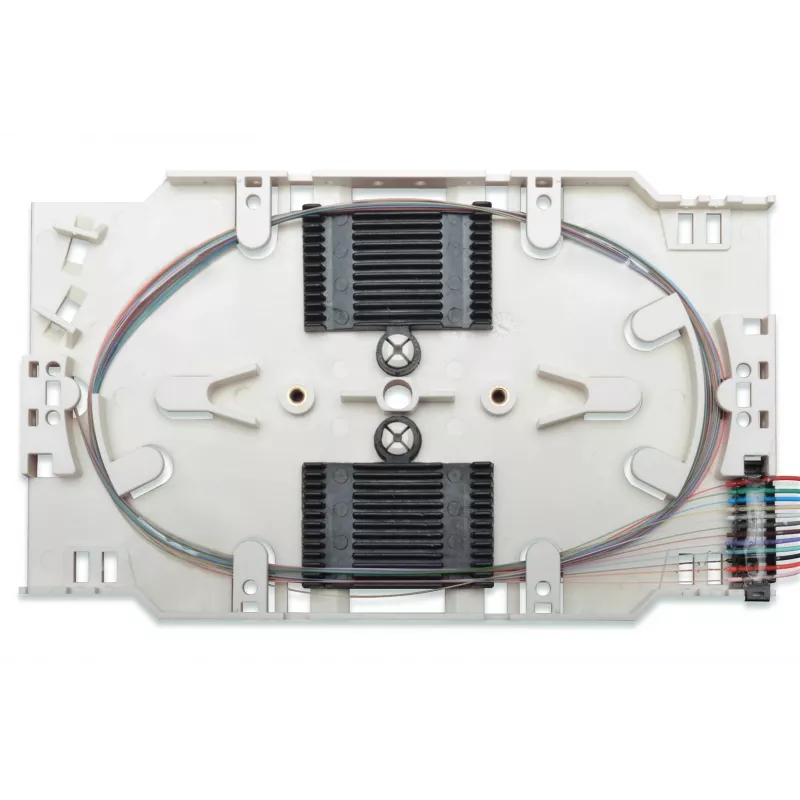

Pre-assembled pigtail cassettes provide fast installation and simplified fiber management. Each cassette includes pigtails cut to the correct length and arranged according to IEC 60304 color code, with a top sticker indicating the used color code. One test protocol for the pigtail set is included in every cassette to document quality and performance.

Advantages

Pre-assembled pigtails reduce installation time and minimize on-site preparation. Color-coded arrangement per IEC 60304 improves identification and reduces wiring errors. The included test protocol documents measured quality and ensures consistent performance for network connections.

Key specifications

• Pre-assembled pigtail cassette
• Pigtail length: factory-cut to correct length
• Color code: IEC 60304 (sticker on top indicates code)
• Documentation: one test protocol included per cassette

How to use

Install the cassette into the rack or enclosure following the cabinet manufacturer’s instructions. Route and connect the pre-assembled pigtails to the transceivers or patch panels, using the color code shown on the cassette sticker for correct matching. Verify connections against the included test protocol and perform any additional site acceptance tests as required.

Recommendations

Store cassettes in a dry, dust-free environment before installation and handle fiber pigtails carefully to avoid bending beyond recommended radii. Use the included test protocol to confirm performance after installation.
