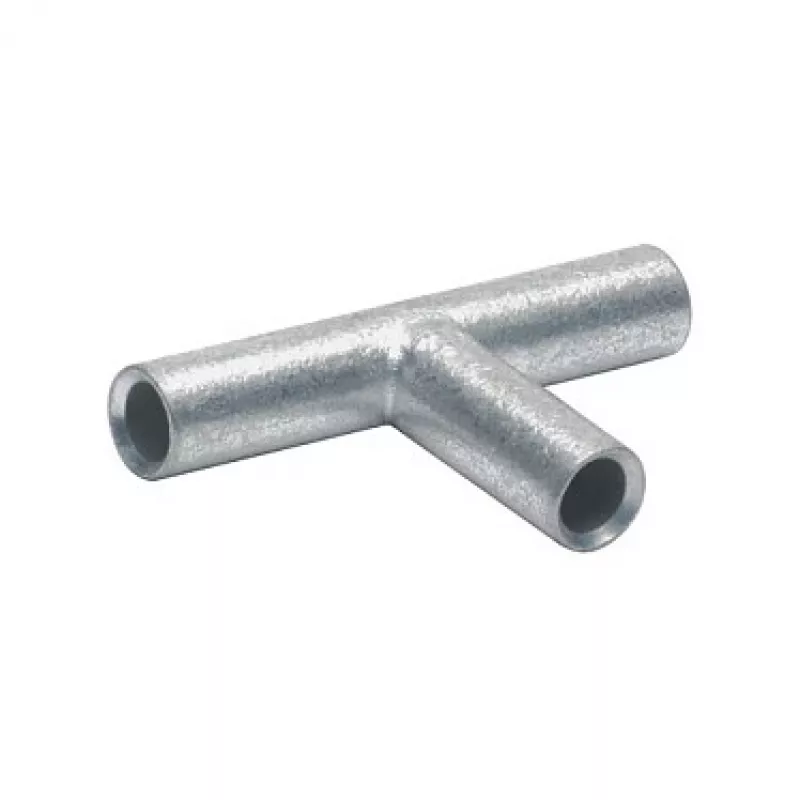

KLAUKE T-Connector TV16 16 mm² Crimp Branch Connector, Tinned Copper, Uninsulated

Branching conductors in electrical installations often requires a reliable, low-resistance connection that maintains integrity under load. The KLAUKE T-Connector TV16 solves this by providing a robust crimp solution for 16 mm² copper conductors, ensuring a secure T-junction without soldering or complex tooling.

Who is it for

This connector is ideal for electricians, panel builders, and maintenance technicians who need to create branch circuits in distribution boxes, control panels, or cable harnesses. It suits fine-stranded and multi-stranded copper conductors (Class 5 & 6) commonly found in industrial and commercial wiring.

Main features

• T-shaped design for branching one main conductor into two directions
• Accepts 16 mm² conductors on all three connection points
• Made of electrolytic copper with galvanic tin plating for corrosion resistance
• Uninsulated body allows custom insulation after crimping
• Compliant with DIN EN 61238-1 for mechanical and electrical performance
• Halogen-free and RoHS compliant
• Temperature resistance up to 105°C

Specifications

• Brand: Gustav Klauke GmbH
• Model: TV16
• MPN: TV16
• EAN: 4012078052061
• Connector type: T-Connector / Branch Connector
• Connection method: Crimp
• Conductor cross-section (main): 16 mm²
• Conductor cross-section (branch): 16 mm²
• Material: Electrolytic copper, tinned
• Insulation: Uninsulated
• Number of connection points: 3
• Temperature resistance: up to 105°C
• RoHS compliant: Yes
• Halogen-free: Yes
• Standard compliance: DIN EN 61238-1

Tips

Use a proper crimping tool with suitable dies for 16 mm² connectors to ensure a gas-tight connection. After crimping, apply heat-shrink tubing or insulating tape to cover the uninsulated body if required. For best results, verify conductor class compatibility (Class 5 or 6) before installation.
