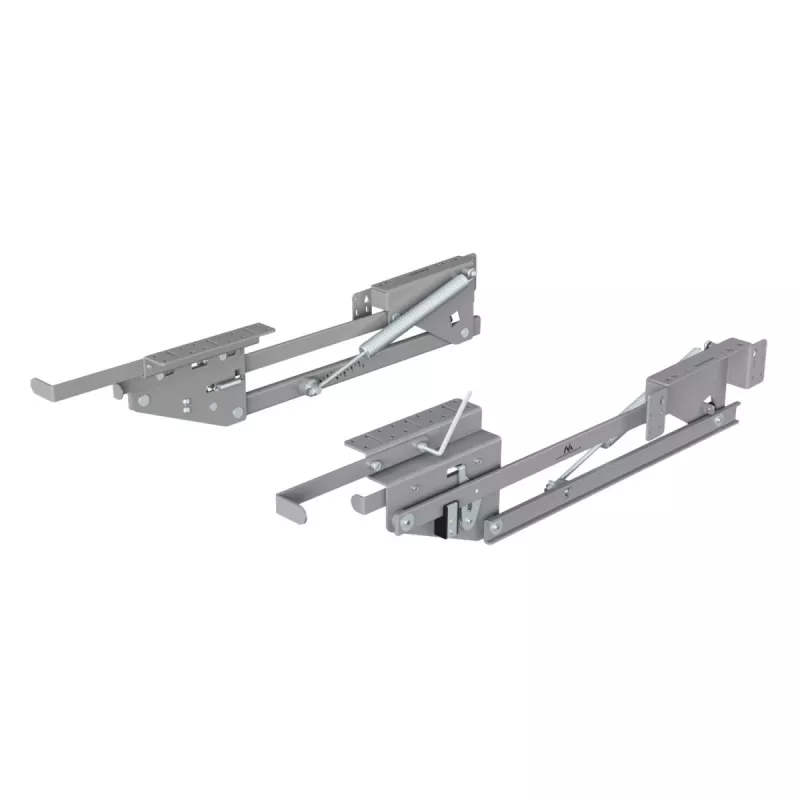

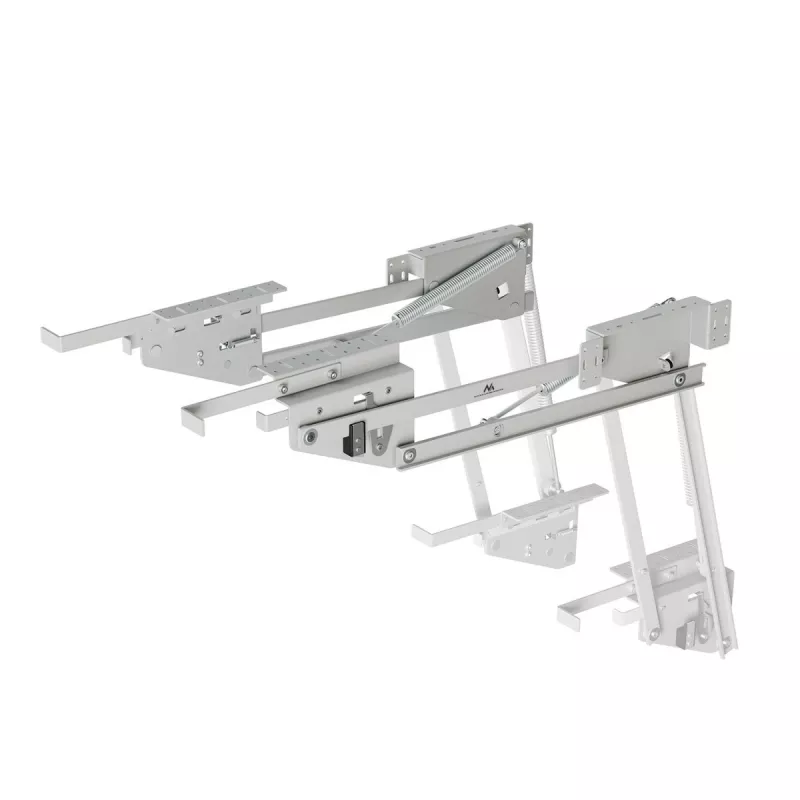

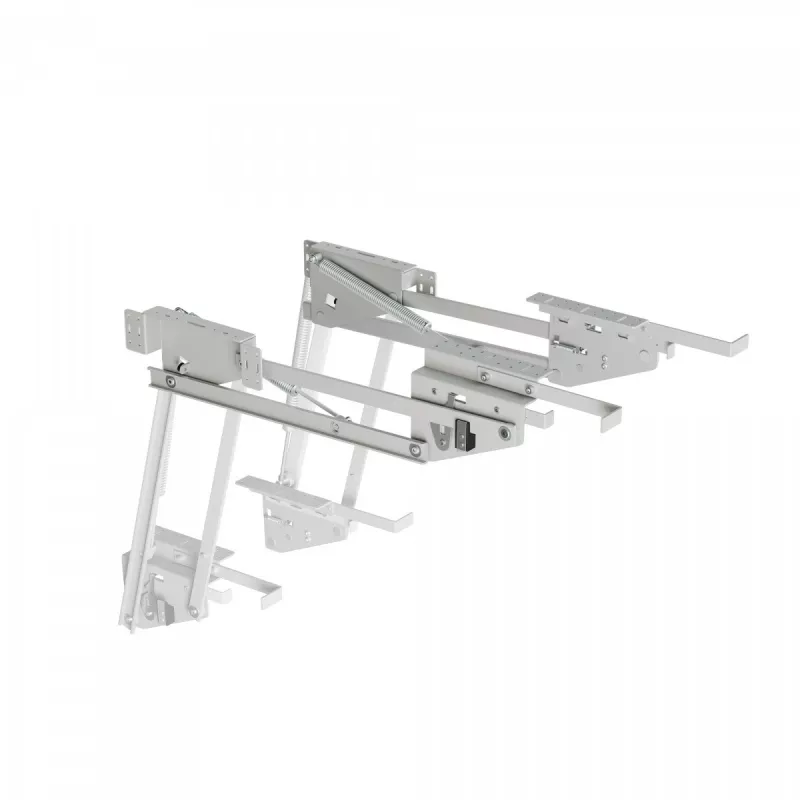

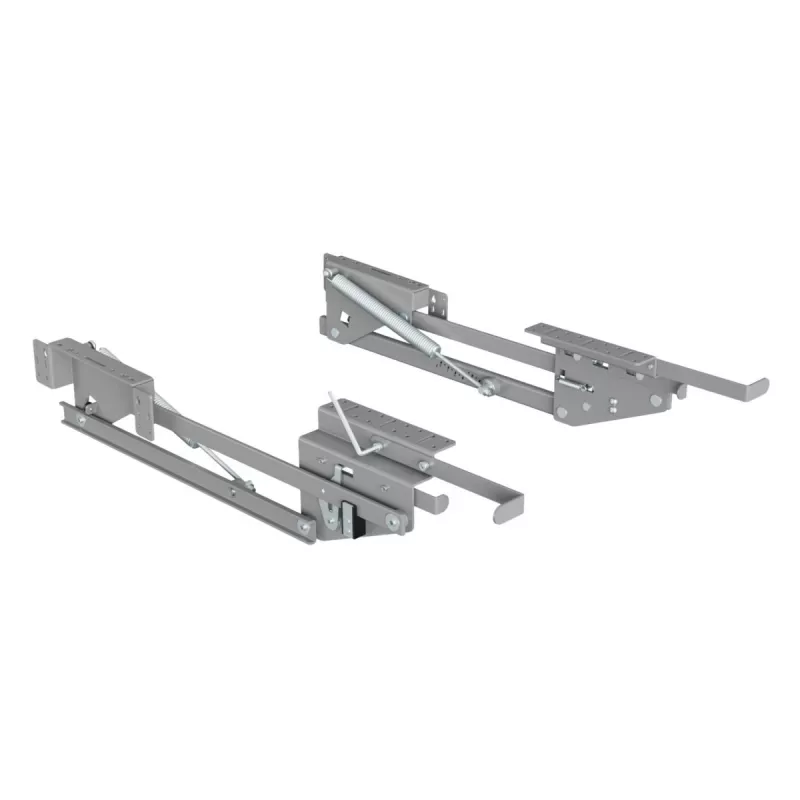

Kitchen cabinet extension MACLEAN MC-497 elevator for overhead cabinets, pull-up mechanism

The MACLEAN MC-497 kitchen cabinet extension is an elevator (pull-up) mechanism engineered for overhead cabinets. Designed to be fitted inside wall-mounted kitchen cupboards, this lift-up system enables the cabinet front to move smoothly upward and hold open, improving access to stored items and enhancing ergonomic use of upper storage. The mechanism is suitable for both retrofit projects and new installations where a lift-up door solution is preferred, and it helps optimize functionality in compact or busy kitchen environments.

Advantages

The pull-up mechanism provides controlled, quiet lifting and lowering of the cabinet front, reducing the need for reaching above shoulder level. Its compact design fits typical overhead cabinet interiors and integrates with standard door panels to preserve cabinet aesthetics. The system offers stable hold-open performance so doors remain accessible without manual support, and the mechanism's construction supports frequent daily use in a kitchen setting.

Suitable for

Key specifications

How to use

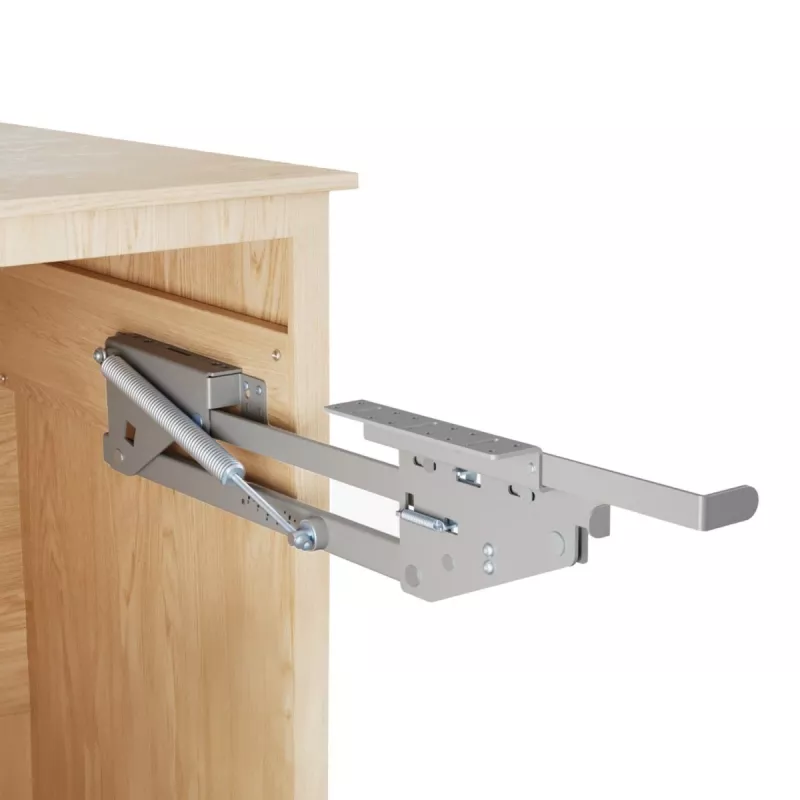

Install the mechanism inside the upper cabinet according to the cabinet internal dimensions and the door panel size, ensuring secure attachment points and correct alignment so the door opens upward without obstruction. After mounting, test the lift action and adjust mounting positions if necessary to achieve balanced movement and a stable hold-open angle. Operate the cabinet by pulling the front upward until the mechanism engages the hold-open position; lower the door gently to close.

Recommendations

For reliable performance, check that the cabinet door weight and dimensions are within the mechanism's supported range and follow manufacturer instructions for fastening and adjustment. Regularly inspect fittings and fasteners for tightness and ensure the mechanism is free of heavy grease or debris that might impede smooth motion.
