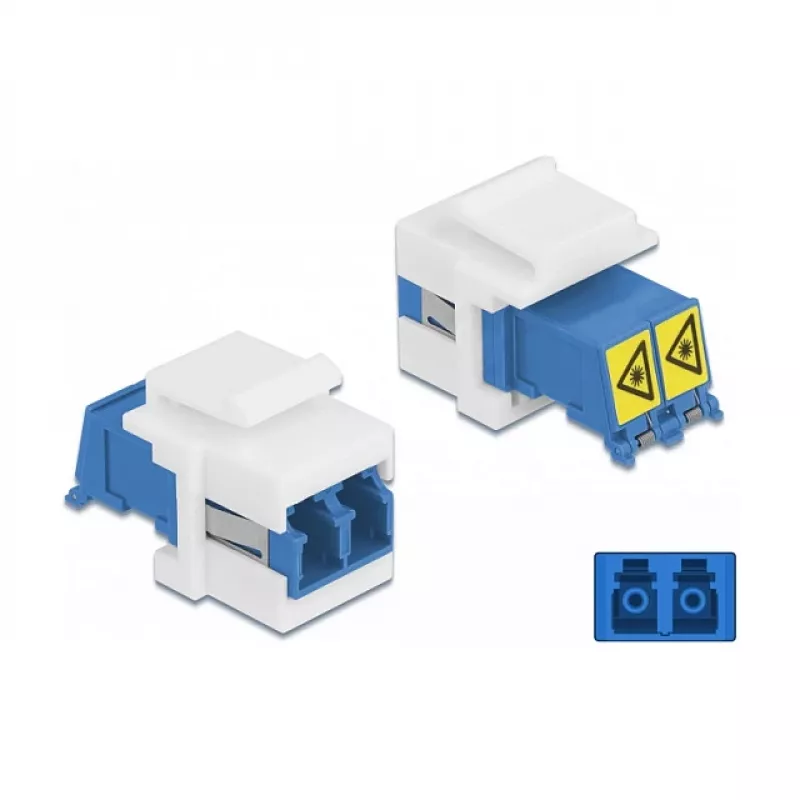

Keystone Module LC Duplex female to LC Duplex female DeLOCK 86834

This Keystone module LC Duplex female to LC Duplex female by DELOCK (model 86834) provides a compact, flat coupling for joining two LC Duplex optical fiber connectors. It is intended for installation in keystone patch panels, faceplates or surface-mount boxes and includes a dust cap to keep the sleeve clean.

Advantages

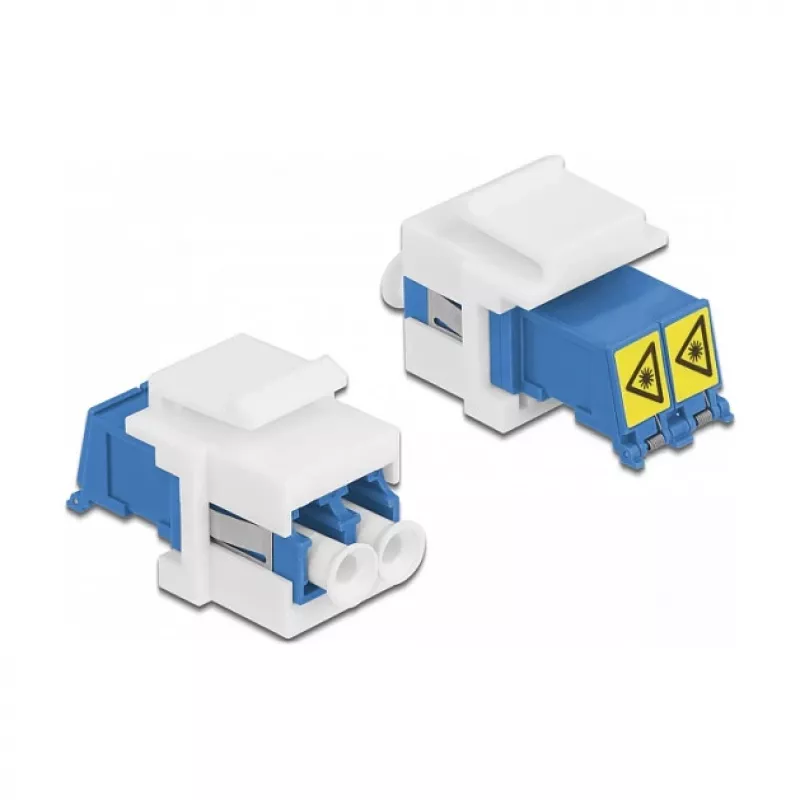

The module features an integrated flip that provides protection against laser radiation and a removable dust cover to protect the coupling from contamination. Its flat construction and standardized keystone shape allow straightforward mounting in common network housings. The product is supplied as a single unit.

Suitable for

• Connecting two LC Duplex optical fiber male connectors
• Mounting in keystone patch panels
• Use in faceplates and surface-mount boxes
• Fiber optic installations requiring dust and laser protection

Key specifications

• Brand: DELOCK
• Model / MPN: 86834
• Type: Keystone module, LC Duplex female to LC Duplex female
• Protection: Integrated laser-protection flip and dust cap
• Construction: Flat keystone housing
• Dimensions (W × D × H): 20 × 34 × 15 mm
• Color: Blue / White
• Package quantity: 1 piece
• EAN: 4043619868346

How to use

Insert the keystone module into a compatible keystone opening of a patch panel, faceplate or surface-mount box until it locks into place. Connect LC Duplex male plugs on both sides into the female LC ports. Flip the integrated laser-protection flap into the open position when making active optical connections and close it when the port is not in use. Use the dust cap to cover the sleeve during storage or when the port is unused.

Recommendations

To maintain optical performance, keep the dust cap in place when the port is not in use and avoid touching the ferrule. Inspect and clean fiber endfaces according to common fiber optic maintenance procedures before connecting.
