Fibre optic adapter InLine 89992F SC/SC Single-mode Green

Simplex SC/SC coupler with laser protection shutter– for secure single-mode connections
Compatible with SC simplex cut-outs– easy integration into common systems
Ceramic sleeve for precise connection– reduces attenuation and increases signal quality
Robust metal bracket– ensures a tight fit and mechanical stability
UL 94V0 enclosure– meets high fire protection requirements

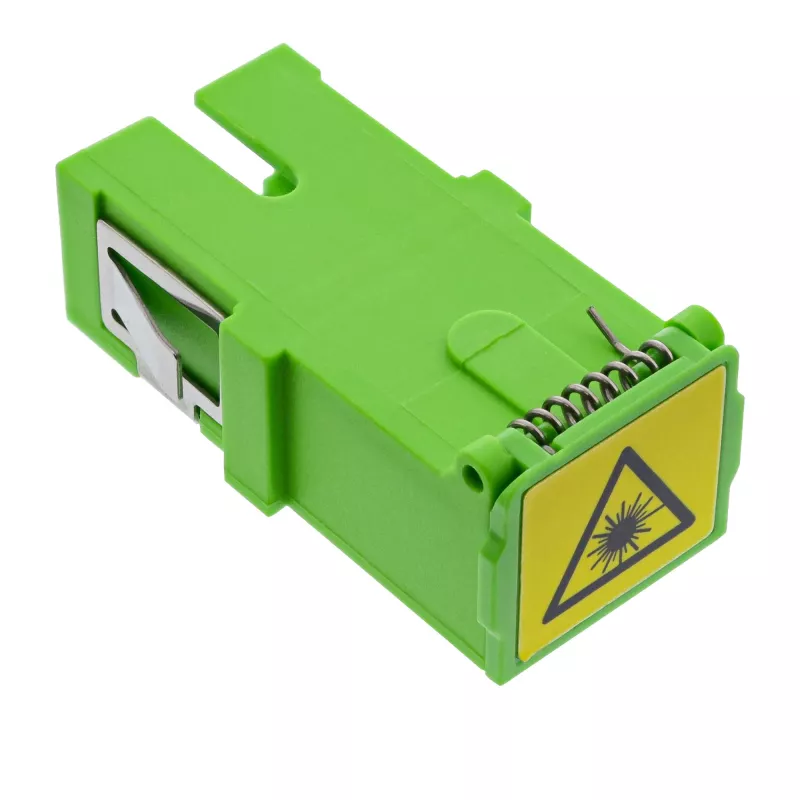

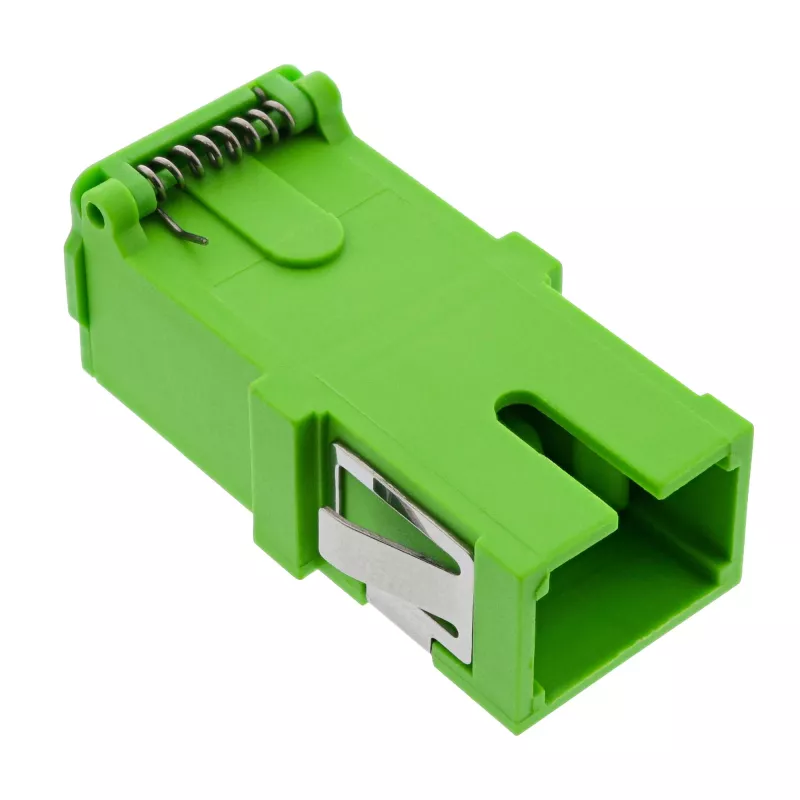

The InLine® fiber optic simplex SC/SC coupler is the ideal solution for the low-loss connection of two SC-based single-mode fiber optic cables. The high-quality design with integrated ceramic sleeve enables precise alignment of the fibers, which ensures maximum performance with minimum attenuation.Thanks to the external, non-removable laser protection cover (shutter), the coupling offers an additional level of safety - both during installation and during operation. The stable metal holder ensures a firm hold in SC simplex cut-outs and the flame-retardant housing in accordance with the UL 94V0 standard meets professional fire protection requirements.Additional technical specifications:

Type: Simplex SC/SC coupling
Mode: Singlemode
Color: green
Laser protection: External, non-removable (shutter)
Compatibility: SC simplex cut-out
Compliance: PC acc. to UL 94V0
Handle: ceramic
Mounting: metal
Protection: dust protection cap (white)

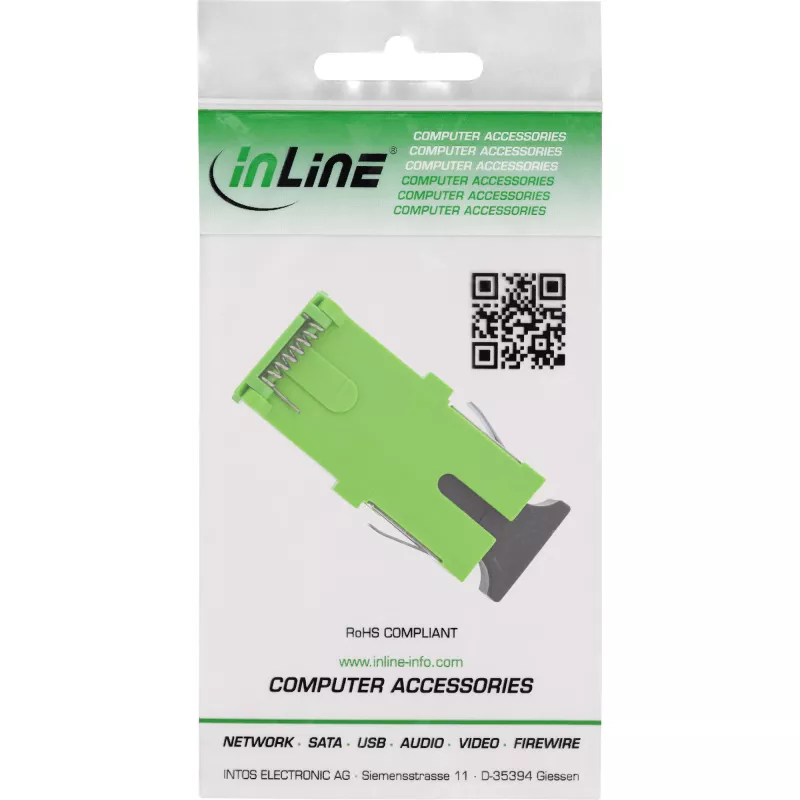

InLine Fibre optic adapter, simplex SC/SC, SM, ceramic, with shutter, green. Connector type: SC/SC, Product colour: Green, Fiber mode structure: Single-mode. Compliance certificates: UL. Width: 15 mm, Depth: 30 mm, Height: 10 mm. Quantity per pack: 1 pc(s), Package type: Polybag. Country of origin: Germany

How to use

Insert the SC-terminated single-mode fibre plugs into the coupler’s SC ports until they click into place, ensuring the protective shutter is open. Verify secure seating and test the link for optical continuity and insertion loss according to your network procedures. When disconnecting, close the shutter to protect the ferrule faces from dust and damage.

Recommendations

Handle the adapter and fibre connectors in a clean environment, keep the protective shutter closed when not in use, and avoid excessive mechanical stress on the adapter to maintain low insertion loss and long-term reliability.
