Keystone module InLine 76203L — RJ45 insert for network keystone panels, model 76203L

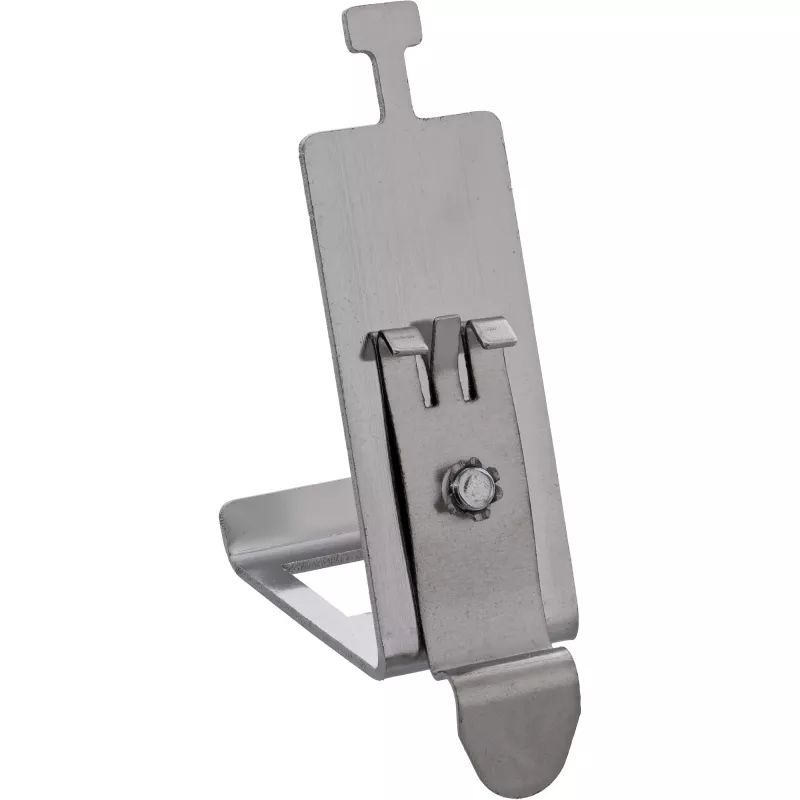

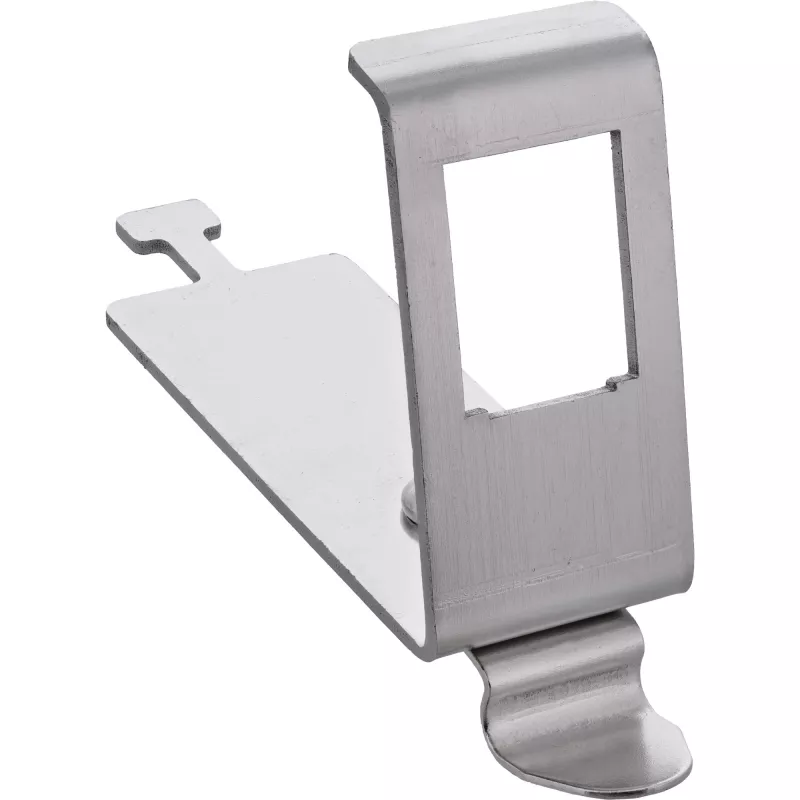

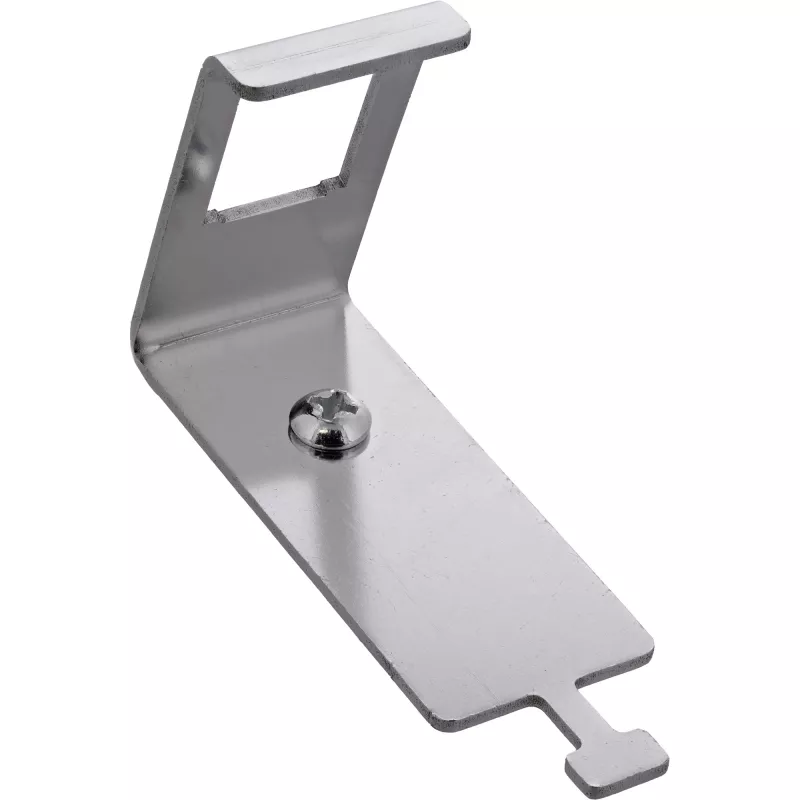

InLine 76203L is a metal bracket designed to accept a Keystone module with an RJ45 insert, intended for use in structured cabling and small LAN installations. The bracket fits a standard keystone opening of 19 x 14.8 mm and is shaped for snap-in mounting of a keystone insert into keystone panels, wall plates or custom housings. Its compact dimensions and ability to be mounted in series make it suitable for creating multi‑port assemblies on 35 mm top-hat rails.

Advantages

The metal construction provides mechanical strength and reliable support for a keystone RJ45 insert while helping to maintain alignment in racks and distribution panels. The integrated tab offers an additional fixing point for cable ties, enabling strain relief and tidy cable routing. Standardised dimensions ensure compatibility with common keystone modules and allow multiple brackets to be combined in a narrow 23 mm width for efficient use of rail space.

Suitable for

Key specifications

How to use

Insert the compatible RJ45 keystone module into the bracket's 19 x 14.8 mm opening until it snaps into place. Attach the assembled bracket and keystone module onto a 35 mm top-hat rail by hooking the bracket over the rail and pressing until the clip engages. Route the Ethernet cable to the keystone insert, perform the required termination (punch-down or crimping depending on the keystone), and use the integrated tab to secure the cable with a cable tie for strain relief. Multiple brackets can be mounted side by side to form a multi‑port configuration.

Recommendations

Verify keystone module dimensions before installation to ensure compatibility with the 19 x 14.8 mm opening. Use appropriate cable management and strain relief when routing Ethernet cables; the integrated tab is intended to be used with cable ties and not as the sole mechanical support for heavily loaded cables. For installations in racks or enclosures, mount brackets in series to optimise space on the top-hat rail.
