Keystone Module DeLOCK 86866

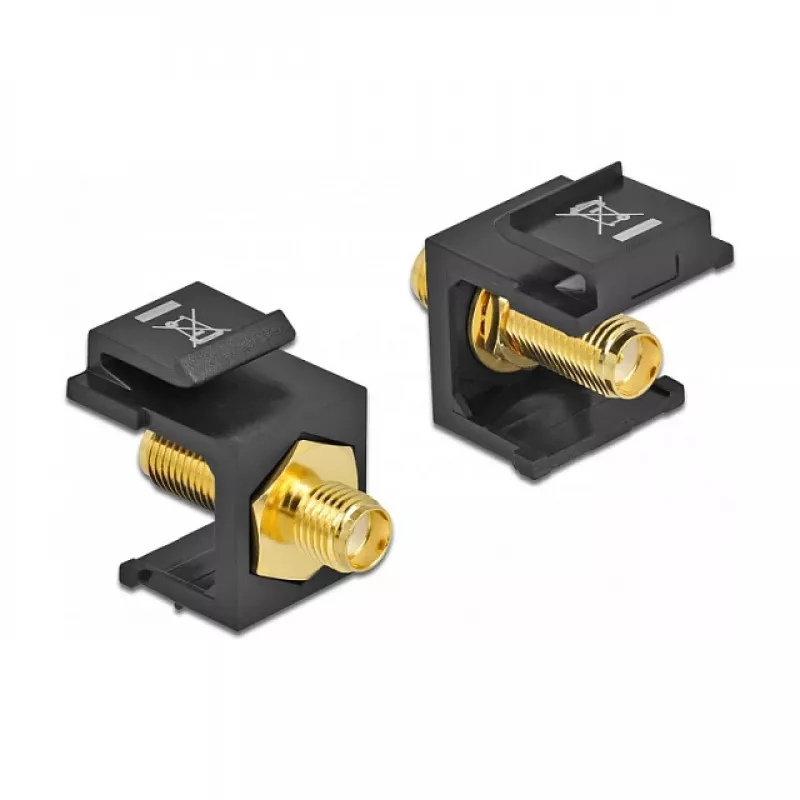

The DeLOCK 86866 keystone module provides a compact interface for connecting antenna cables. It features a flat design in black and an SMA connector, with standardised dimensions allowing snap-in mounting in keystone patch panels, face plates, or surface-mount boxes. The module is supplied individually and is suitable for Wi‑Fi antenna installations where a low-profile keystone port is required.

Advantages

The module's standard keystone dimensions ensure compatibility with common panels and faceplates. Its flat construction and black finish offer a low-profile appearance. The integrated SMA connector provides a reliable RF connection for antenna cables. Sold as a single unit, it permits flexible replacement or custom panel configurations.

Suitable for

• Keystone patch panels
• Wall face plates
• Surface-mount boxes
• Wi‑Fi antenna cable connections

Key specifications

• Brand: DELOCK
• Model: 86866
• Connector: SMA
• Colour: Black
• Dimensions (W × D × H): 16.3 × 24.5 × 22.3 mm
• Packaging: Single module
• Category: Wi‑Fi antennas
• EAN: 4043619868667

How to use

Insert the module into a compatible keystone opening until it snaps into place. Connect the antenna cable to the SMA connector, ensuring a secure threaded connection. Mount the populated panel, face plate, or surface box according to the installation requirements of your setup.

Recommendations

Use with compatible keystone plates and ensure cables are connected and tightened to manufacturer torque specifications for reliable RF performance; avoid excessive bending of coaxial cables near the connector.
