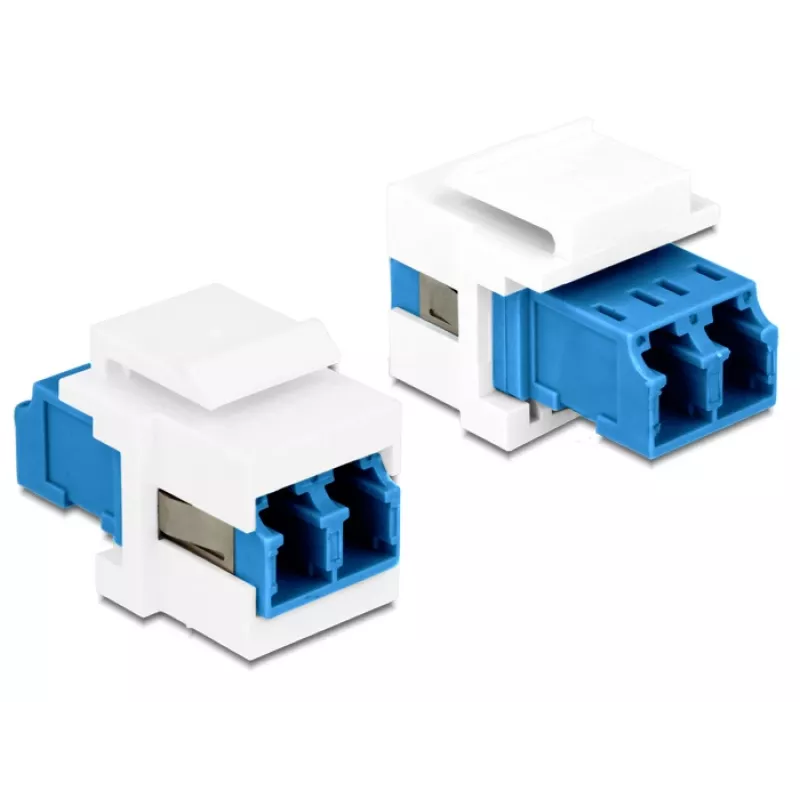

Keystone Module DeLOCK 86357

The DeLOCK 86357 Keystone Module provides a compact solution to extend optical fiber connections. It features LC Duplex connectors in blue and white and conforms to standard keystone dimensions for straightforward snap-in installation into keystone patch panels, face plates, or surface-mount boxes.

Advantages

The module’s standardised form factor ensures compatibility with common keystone wall plates and mounting frames, simplifying installation and maintenance. LC Duplex connectors offer reliable, high-density fiber connections suitable for structured cabling systems. Its compact size (21.8 mm × 34.5 mm × 17.9 mm) enables efficient use of space in network enclosures.

Suitable for

• Extending optical fiber links in patch panels
• Use in keystone face plates and surface-mount boxes
• Structured cabling installations in offices and data closets

Key specifications

• Brand: DELOCK
• Model / MPN: 86357
• Connector type: LC Duplex (blue / white)
• Dimensions: 21.8 mm (W) × 34.5 mm (D) × 17.9 mm (H)
• Category: Fibre Optic Cables

How to use

Align the keystone module with the opening in the keystone patch panel, face plate, or surface-mount box and press until it snaps into place. Connect LC Duplex fiber patch cords to the module’s ports, ensuring correct polarity and secure seating of connectors. For removal, press the retaining tabs and gently pull the module out of the keystone opening.

Recommendations

Use the module with compatible LC Duplex patch cords and in keystone-compatible panels or plates. Avoid excessive bending of fiber cables near the connector and follow standard fiber handling and cleaning procedures to maintain optimal signal performance.
