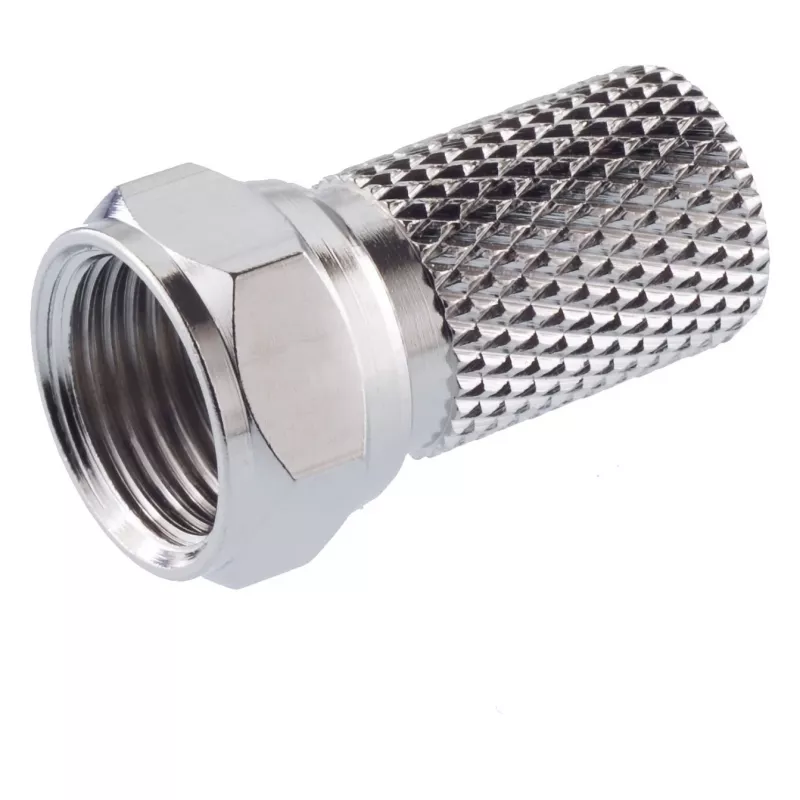

Kathrein EMK 01 F-Type Screw-On Connector 7mm

Satellite installers and cable technicians rely on the Kathrein EMK 01 F-type screw-on connector for quick, secure terminations on 7mm coaxial cables in residential and commercial TV setups. This nickel-plated brass connector ensures a tight, corrosion-resistant fit for reliable signal transmission across satellite, DVB-T, cable TV, and broadband applications.

Key specifications

• Connector type: F-type male
• Connection method: screw-on
• Impedance: 75 Ohm
• Frequency range: 0–2400 MHz
• Recommended cable outer diameter: 6.8–7.2 mm
• Material: nickel-plated brass
• Shielding effectiveness: >100 dB
• Inner conductor connection: clamping
• Outer conductor connection: screw
• Return loss: >20 dB at 1000 MHz
• Insertion loss: <0.2 dB at 1000 MHz
• Operating temperature: -40°C to +60°C
• RoHS compliant

Why choose it

The EMK 01 delivers exceptional build quality and performance, with high shielding effectiveness and low insertion loss ensuring clean signal transfer. Its screw-on design allows for tool-free installation, saving time on site while providing a durable, corrosion-resistant connection that withstands harsh environments.

Ideal use cases

• Satellite TV installations
• Cable TV and broadband connections
• DVB-T antenna setups
• RF distribution systems in residential and commercial buildings

Good to know

This connector is designed for coaxial cables with an outer diameter between 6.8 and 7.2 mm, such as RG6. It is sold individually and is RoHS compliant, making it suitable for environmentally conscious projects.
