Coaxial Connector DeLOCK 89724

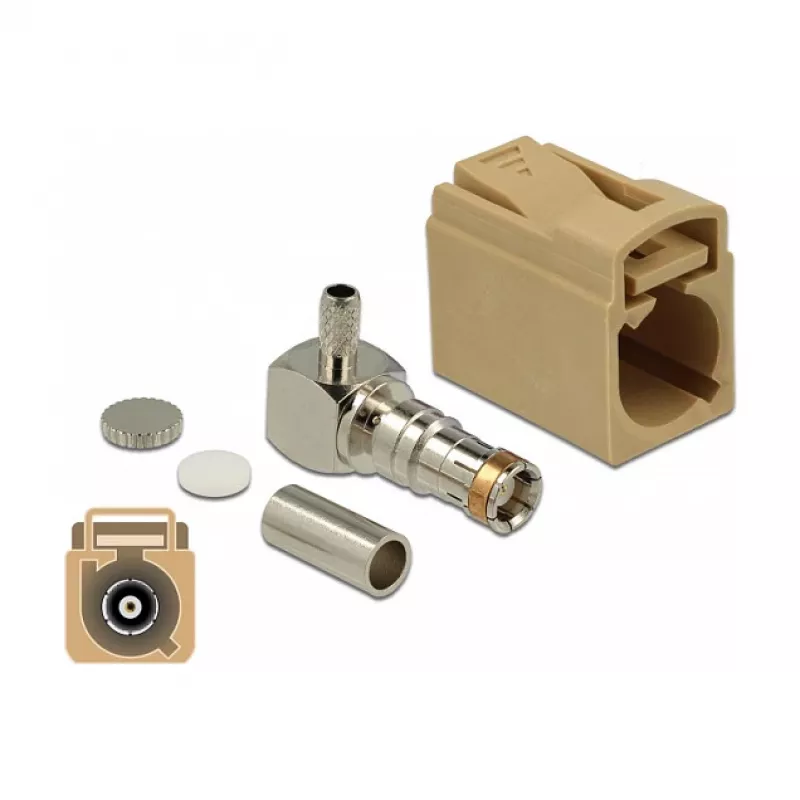

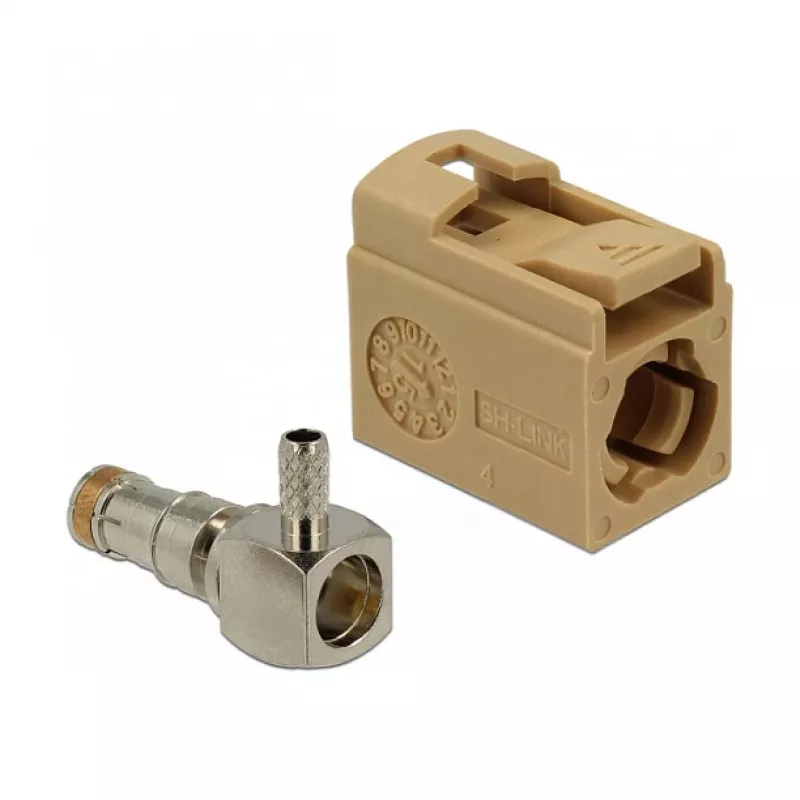

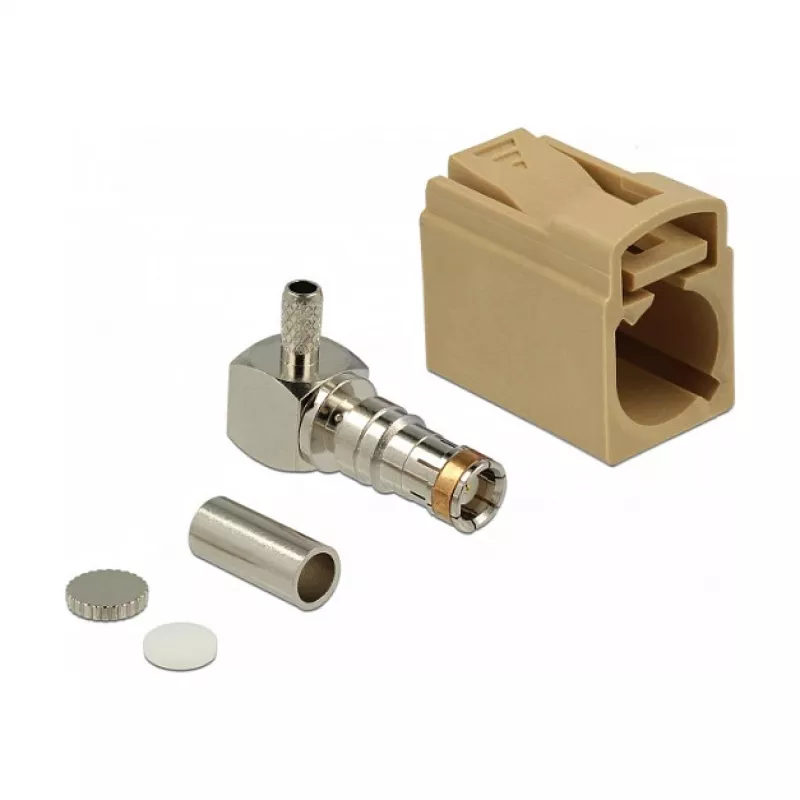

The DeLOCK 89724 coaxial connector is a compact FAKRA L male jack with a 90° angle, designed for reliable RF connections in automotive and telecommunications applications. Its small footprint (width 13.8 mm, depth 21.5 mm, height 9.5 mm) and beige/stainless-steel finish make it suitable for space-constrained installations. The connector is supplied in a polybag for convenient handling.

Advantages

The angled FAKRA L male design enables space-saving cable routing and stable mechanical mating. The compact housing dimensions reduce installation space while maintaining standard FAKRA compatibility. The beige and stainless-steel materials provide corrosion resistance and a neutral appearance for vehicle and telecom environments.

Suitable for

Key specifications

How to use

Align the FAKRA L male connector with the corresponding female FAKRA L socket and insert until the mating features engage. Ensure the cable routing takes advantage of the 90° orientation to minimize strain on the cable. Verify the connection is secure and that the surrounding mounting area provides adequate clearance for the connector dimensions.
