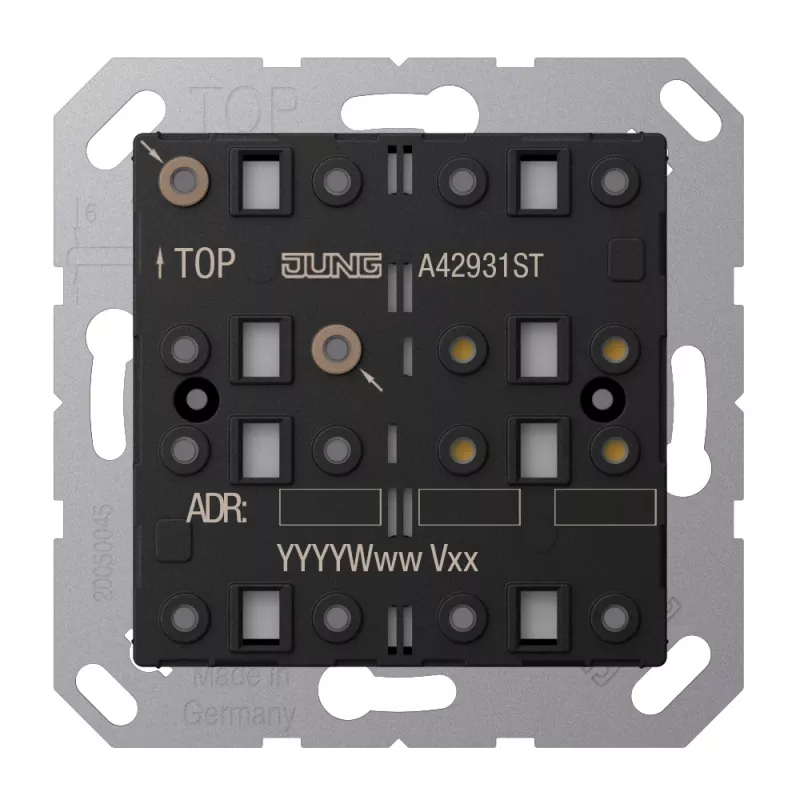

JUNG KNX Push-button Sensor Module A 4293 1ST (A42931ST)

The JUNG KNX Push-button Sensor Module A 4293 1ST is a 1-gang KNX TP device designed for intelligent building control. It integrates seamlessly into KNX systems, enabling switching, dimming, blind control, and scene management. The module includes an integrated bus coupler and is programmed via ETS5 or higher.

Advantages

Compact 1-gang design for flush-mounted installation; integrated bus coupler reduces wiring complexity; supports multiple functions including switching, dimming, and blind control; reliable KNX TP communication with low power consumption.

Suitable for

• Residential and commercial KNX building automation
• Lighting control and shading applications
• Integration into smart home systems

Key specifications

• Product Type: KNX Push-button Sensor Module
• Number of Operating Points: 1-gang
• System: KNX TP (Twisted Pair)
• Rated Voltage: DC 21-32 V SELV
• Current Consumption: Max. 10 mA
• Integrated Bus Coupler: Yes
• Programming Software: ETS5 or higher
• Functions: Switching, Dimming, Blind Control, Value Transmitter, Scene Control, Sequence Control
• Mounting Type: For flush-mounted inserts
• Material: Plastic
• Ambient Temperature: -5 to +45 °C
• Storage/Transport Temperature: -25 to +70 °C
• Relative Humidity: 5-93% (no condensation)
• Protection Class: III
• Degree of Protection (IP Rating): IP20

Recommendations

For optimal performance, use with JUNG flush-mounted inserts and program with ETS5 or higher. Ensure SELV power supply within specified voltage range.
