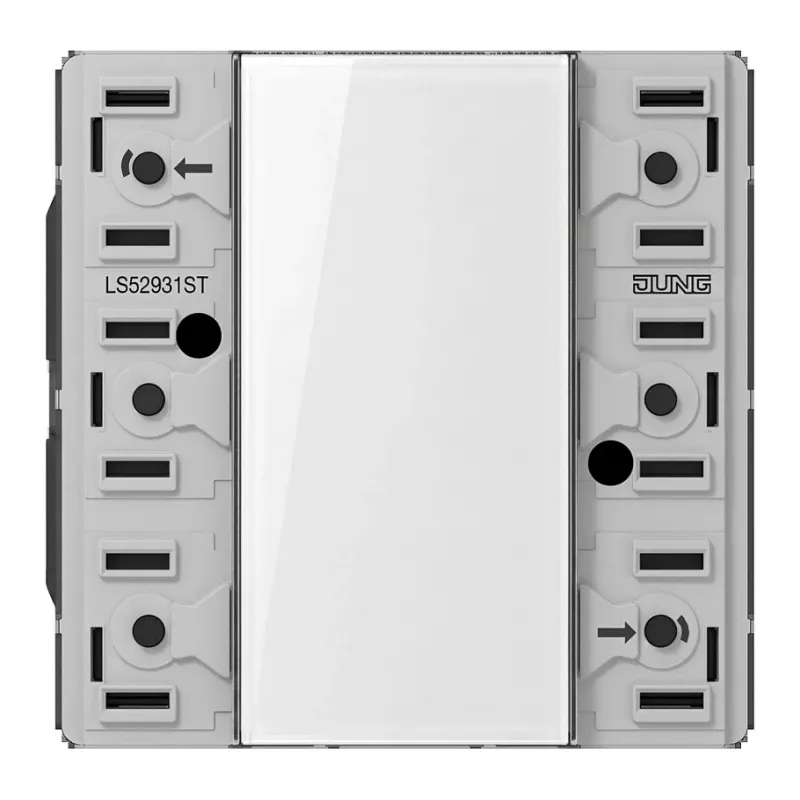

JUNG LS 52931 ST KNX Push-button Sensor Module Universal, 3-gang, F50, LS Series, Studio White

The JUNG LS 52931 ST is a KNX push-button sensor module from the LS series, designed for universal control applications. With a 3-gang design (6 push-button surfaces), it integrates seamlessly into modern smart home systems, offering switching, dimming, blind control, scene control, and more. The module features a flush-mounted installation, an integrated temperature sensor, configurable status LEDs, and orientation light. It is compatible with ETS software (version 5 or higher) and operates on KNX bus voltage (21-30V DC). The elegant Studio White thermoplastic finish complements any interior.

Advantages

Universal functionality for diverse control tasks; easy configuration via ETS; integrated temperature sensor for climate control; status LEDs and orientation light for user convenience; robust thermoplastic material in Studio White.

Suitable for

• Smart home and building automation systems
• Residential and commercial KNX installations
• Control of lighting, blinds, heating, and scenes

Key specifications

• Product Type: KNX Push-button Sensor Module
• Number of Operating Points: 3-gang (3-fold)
• Number of Push-button Surfaces: 6 (3 pairs)
• Design Series: JUNG LS-Serie
• Design Element Size: F50 (50 x 50 mm operating area)
• Color: Studio White (Studioweiß)
• Material: Thermoplastic
• Functionality: Universal (Switching, Dimming, Blind Control, Value Transmitter, Scene Control, etc.)
• KNX Compatibility: Yes, KNX Bus System
• Operating Voltage: KNX Bus voltage (21-30V DC)
• Configuration Software: ETS (Engineering Tool Software) version 5 or higher
• Integrated Temperature Sensor: Yes
• Status Indicators: 2 configurable status LEDs per operating point
• Orientation Light: Yes, configurable
• Logic Functions: Yes (AND, OR, XOR, Gate, Staircase light, etc.)
• Mounting Type: Flush-mounted (for standard flush-mounted boxes)
• Protection Class: IP20
• Operating Temperature Range: -5 to +45 °C
• Relative Humidity: 0 to 65 % (no condensation)
• Bus Connection: Via bus terminal

Recommendations

For optimal performance, use with JUNG KNX bus components and configure via ETS. Ensure proper flush-mounted box installation.
