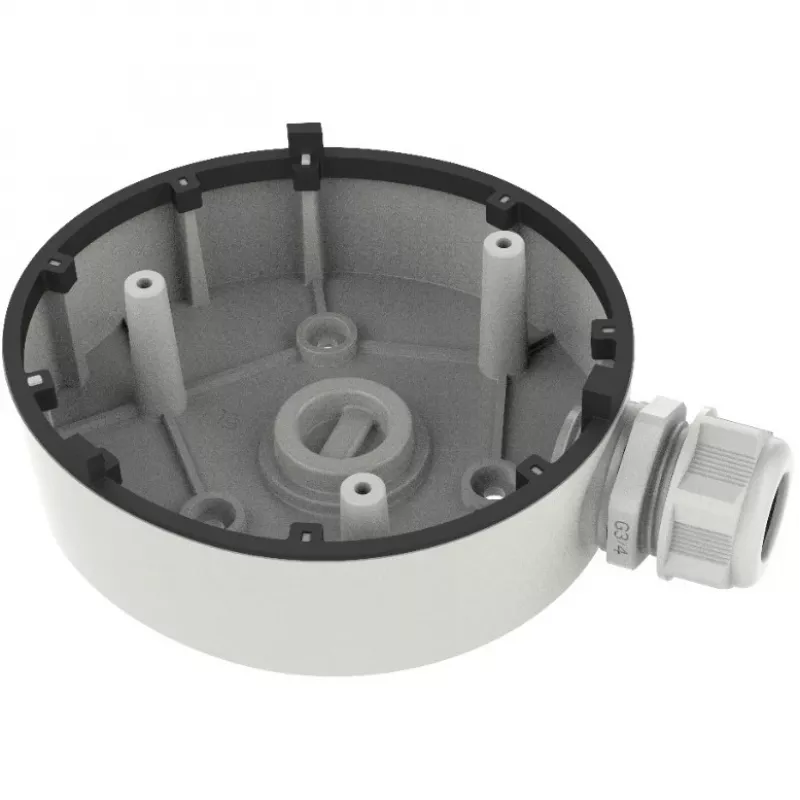

Junction box Hikvision DS-1280ZJ-TR12 outdoor white 2.5 kg

The Hikvision DS-1280ZJ-TR12 outdoor white junction box is designed to house and protect camera connections and mounting interfaces in external installations. With a compact profile and a rated support for cameras up to 2.5 kg, the junction box provides a sealed enclosure that helps shield cables and connectors from weather and mechanical stress. Its external dimensions are 123.1 mm wide, 168.2 mm deep and 45 mm high, and the neutral white finish blends with many outdoor camera housings.

Advantages

This junction box offers corrosion-resistant construction suitable for outdoor exposure and a shape that simplifies cable routing and connector protection. The capacity to safely support devices up to 2.5 kg reduces the need for additional reinforcement at the mounting point. Compact dimensions make it unobtrusive on façades and poles while providing sufficient internal space for cable splices and terminal blocks.

Suitable for

• Standard outdoor dome and bullet camera installations
• Mounting points where cable protection from moisture and dust is required
• Installations on walls, ceilings or poles with limited space

Key specifications

• Color: white
• Maximum supported camera weight: 2.5 kg
• Width: 123.1 mm
• Depth: 168.2 mm
• Height: 45 mm
• Intended use: outdoor junction box for camera connections

How to use

Mount the junction box on a stable surface using appropriate fasteners for the substrate, ensuring the box is level and securely attached. Route camera and power cables through the provided openings or gland points, secure cable entries to maintain any ingress protection, and arrange connectors and splices inside the box to avoid strain. Attach the camera to the junction box per the camera manufacturer’s instructions and verify the mounting can safely bear the device weight up to 2.5 kg.

Recommendations

Choose corrosion-resistant fasteners and apply suitable sealing around cable glands if the installation is exposed to heavy rain or direct spray. Periodically inspect the junction box for signs of sealant degradation and reapply as needed to maintain protection. Confirm compatibility between the junction box dimensions and the camera base to ensure a secure fit.
