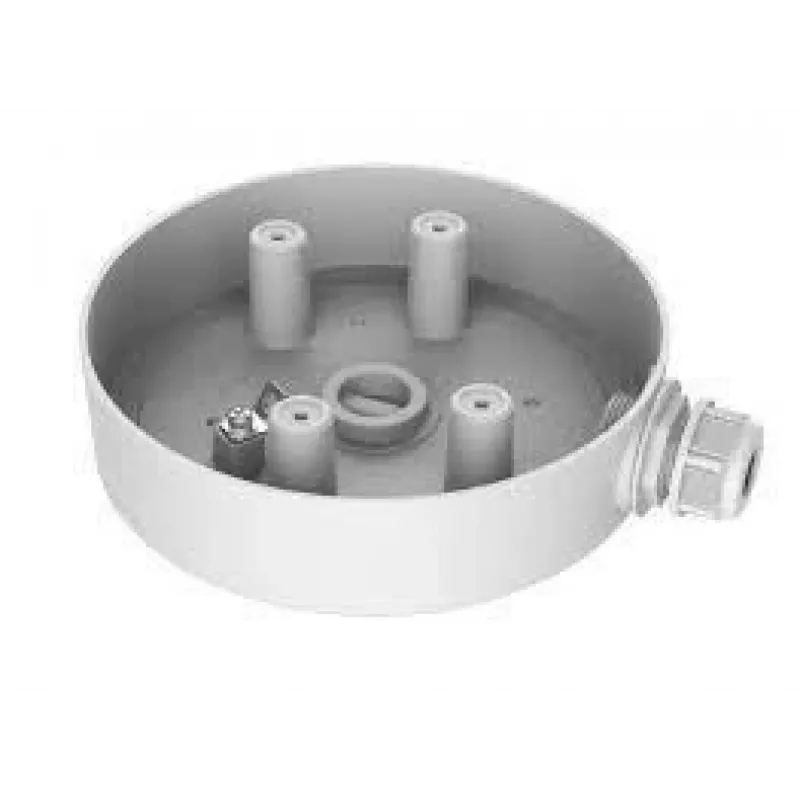

Junction box Hikvision DS-1280ZJ-SD11

The Hikvision DS-1280ZJ-SD11 junction box is a compact mounting accessory engineered for security camera installations. Designed to provide a stable and discreet housing for camera connections, the unit is finished in white and built to accommodate cameras up to a specified weight limit while maintaining a minimal footprint. Its dimensions make it suitable for wall or ceiling mounting where a neat, concealed cable routing and secure support are required.

Advantages

The junction box offers a combination of light weight and mechanical strength, allowing for easier handling during installation without compromising support. Its compact diameter and low profile height reduce visual impact while providing internal space for cable terminations and connectors. The white finish enables unobtrusive integration with common exterior or interior surfaces, and the construction is intended to provide durability and reliable performance in typical CCTV mounting scenarios.

Suitable for

• Wall mounting of dome and compact bullet security cameras
• Ceiling installations with concealed cable routing
• Applications requiring a small, low-profile camera junction housing

Key specifications

• Maximum supported camera weight: 5 kg
• Diameter: 15.8 cm
• Height (profile): 39.7 mm
• Weight of the junction box: 450 g
• Color: white
• Designed for indoor and sheltered outdoor CCTV mounting where appropriate sealing and protection are provided

How to use

Mount the junction box on a suitable flat surface using appropriate anchors or screws rated for the mounting substrate and the combined load of the camera and bracket. Route camera cables into the internal cavity and make required terminations or connector attachments inside the box. Attach the camera to the junction box following the camera manufacturer’s mounting instructions, ensuring that fasteners are tightened to secure the camera but not over-torqued. Confirm that cables are secured and strain-relieved before finalizing the installation to prevent pull on connections.

Recommendations

For reliable long-term performance, use mounting hardware appropriate for the wall material, maintain proper sealing at outdoor mounting points, and verify that the total camera and accessory weight does not exceed the specified 5 kg capacity. Periodically inspect the junction box and fastenings for corrosion or loosening in environments exposed to weather.
