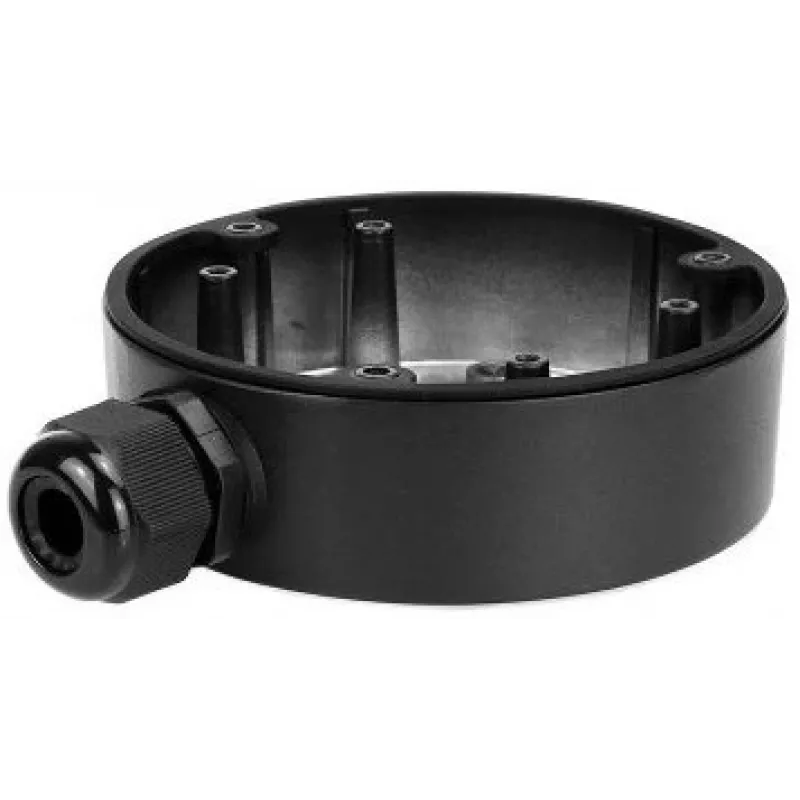

Junction box Hikvision DS-1280ZJ-DM21 Black Universal 4.5 kg

The Hikvision DS-1280ZJ-DM21 Black Universal junction box is a compact mounting accessory designed to provide a secure and tidy installation for surveillance cameras and related devices. With a rated maximum supported load of 4.5 kg, a diameter of 13.7 cm and a depth of 42 mm, the junction box accommodates cable routing and fixed mounting while remaining small and unobtrusive. Its lightweight construction (approximately 280 g) simplifies handling during installation and reduces additional load on mounting surfaces.

Advantages

The junction box offers a durable mounting solution that conceals cable connections and protects terminals from weather and tampering. Its compact dimensions make it suitable for locations with limited space, and the 4.5 kg load capacity supports a wide range of camera models. The black finish provides a neutral appearance that integrates with common outdoor and indoor installations, while the lightweight design eases transportation and fitting.

Suitable for

• Wall- or pole-mounted CCTV cameras and dome cameras within the specified weight limit
• Small to medium-sized surveillance installations requiring concealed cable management
• Indoor and outdoor locations where a compact, low-profile junction box is needed

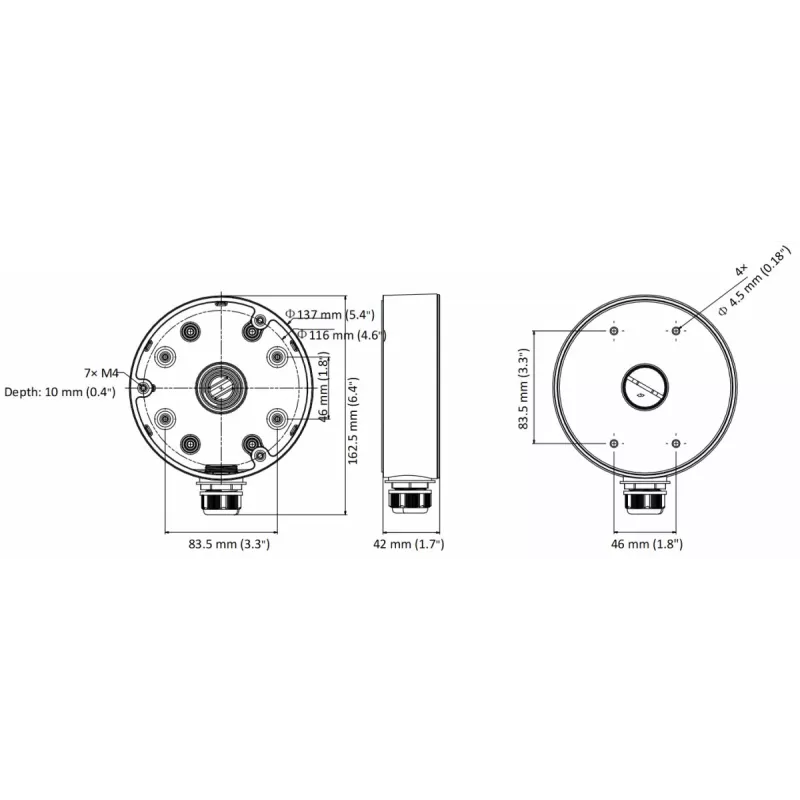

Key specifications

• Maximum supported load: 4.5 kg
• Outer diameter: 137 mm
• Depth: 42 mm
• Net weight: approximately 280 g
• Color: black
• Type: universal junction box for camera mounting

How to use

Position the junction box at the desired mounting point, mark and drill mounting holes according to the box’s dimensions, and secure it to the wall or pole using appropriate fasteners for the surface material. Route camera cables through the provided openings and make the electrical and data connections inside the box. After connecting and testing the camera, close the junction box and ensure all seals and fastenings are secure to maintain protection against dust and incidental moisture. Verify that the combined weight of the camera and accessories does not exceed the 4.5 kg limit.

Recommendations

Use corrosion-resistant fasteners for outdoor installations and apply suitable sealing or gaskets where needed to maintain weather resistance. Confirm compatibility with the camera model and mounting hardware before installation, and observe local regulations and safety practices when working at height or with electrical connections.
