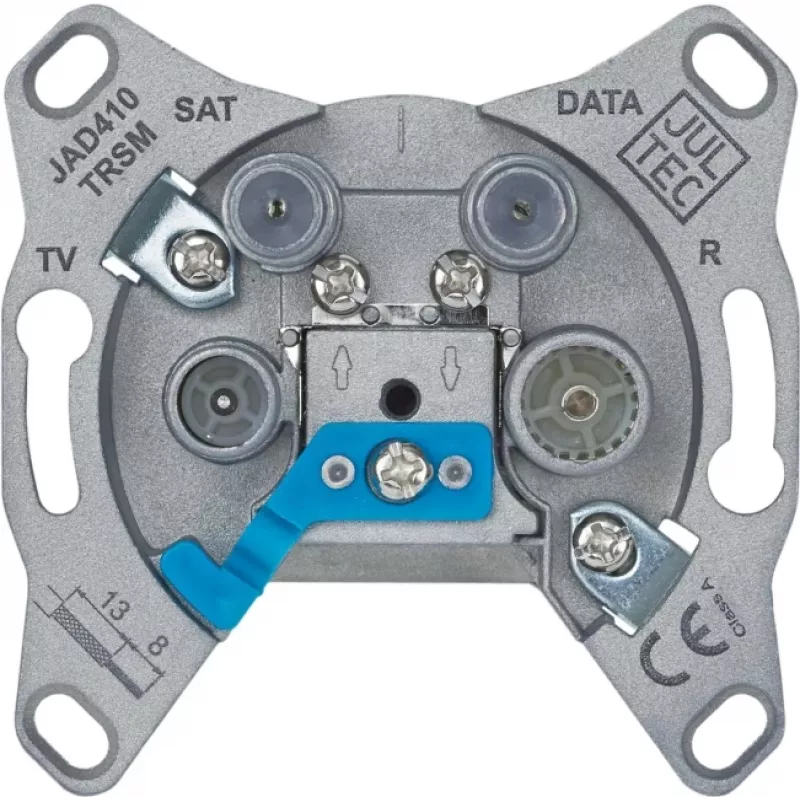

JULTEC JAD410TRSM Diode Decoupled 4-Way Multimedia End Outlet 65-862/950-2150MHz 10dB

The JULTEC JAD410TRSM is a high-performance diode decoupled multimedia end outlet designed for modern home networks and satellite TV installations. It provides a single-cable solution for terrestrial, cable, and satellite signals, featuring four outputs: one IEC male for TV, one IEC female for radio, and two F-connectors for SAT. With a frequency range of 65-862 MHz for terrestrial/cable and 950-2150 MHz for satellite IF, it ensures reliable signal distribution. The terminal attenuation is 10 dB for all paths, and it supports return path (5-65 MHz) and DC pass for SAT up to 500 mA. This flush-mount outlet is shielded to Class A and has an impedance of 75 Ohm, making it ideal for professional installations.

Advantages

Diode decoupling technology ensures minimal signal loss and high isolation between outputs. The compact 4-way design saves space while providing connectivity for TV, radio, and two satellite receivers. Class A shielding guarantees excellent protection against interference. Easy flush-mount installation fits standard wall boxes.

Suitable for

• Home entertainment systems requiring TV, radio, and satellite distribution
• Professional multimedia installations in apartments, hotels, and offices
• Upgrading existing single-outlet wall plates to multi-output solutions

Key specifications

• Product Type: Multimedia End Outlet
• Outlet Type: Single-Cable End Outlet
• Number of Outputs: 4
• Output Connectors: 1x IEC Male (TV), 1x IEC Female (Radio), 2x F-connector (SAT)
• Decoupling Technology: Diode Decoupled
• Terrestrial/Cable Frequency Range: 65 - 862 MHz
• Satellite IF Frequency Range: 950 - 2150 MHz
• Terminal Attenuation (TV/Radio/SAT): 10 dB
• Return Path Support: Yes (5-65 MHz)
• DC Pass for SAT: Yes (max. 500mA)
• Impedance: 75 Ohm
• Shielding Class: Class A
• Installation Type: Flush-mount

Recommendations

For optimal performance, use high-quality coaxial cables and ensure proper grounding. This outlet is compatible with most satellite receivers and TV sets. Professional installation recommended for best signal quality.
