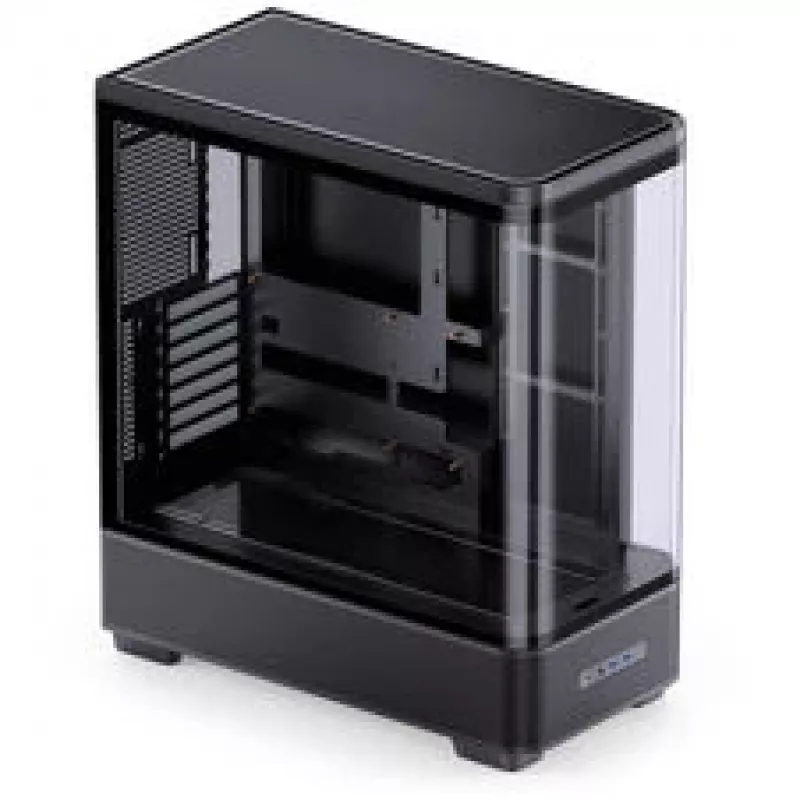

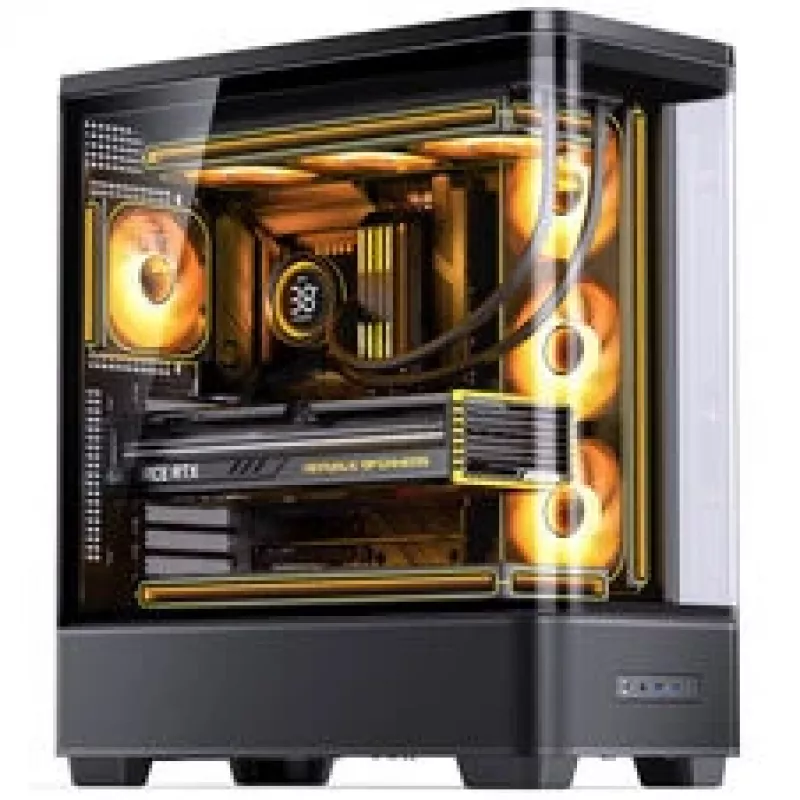

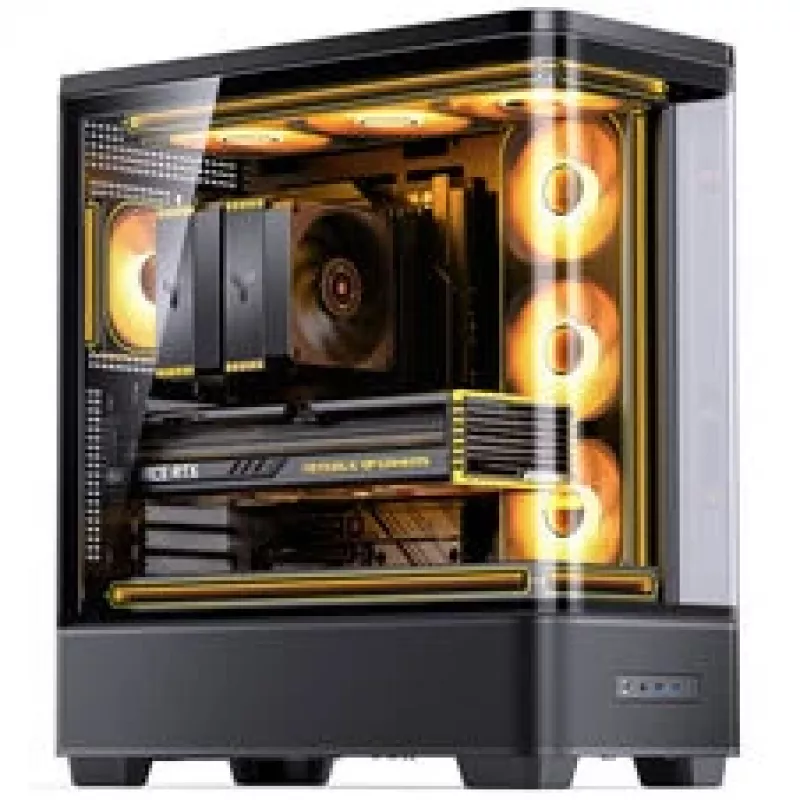

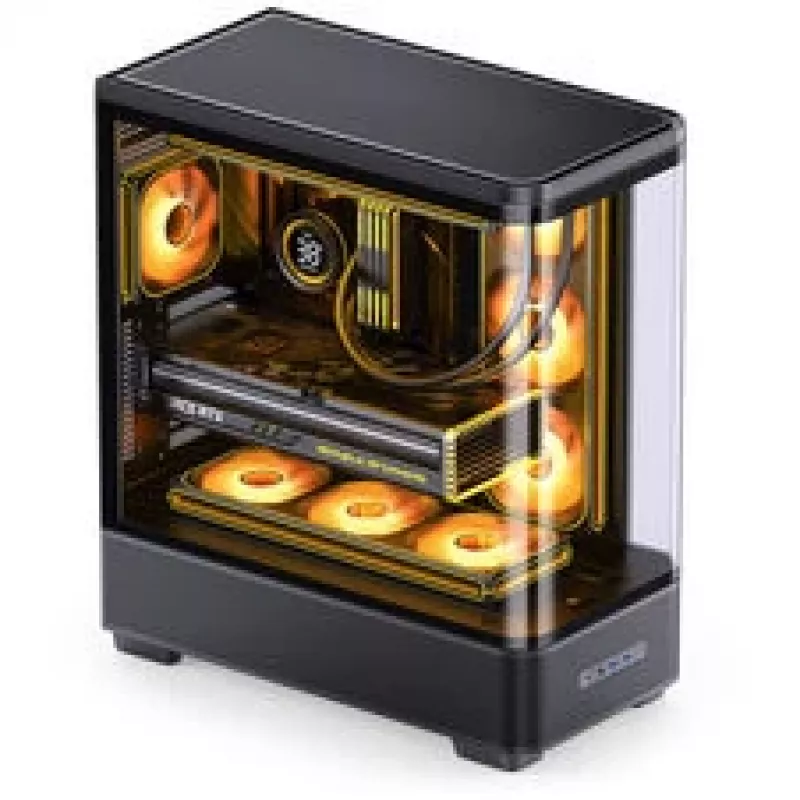

Jonsbo TK-5 Midi-Tower, ATX, Tempered Glass - Black

The Jonsbo TK-5 is a premium Midi-Tower case designed for high-performance builds. Featuring a dual-chamber layout, it offers excellent airflow and cable management. The case is constructed from steel, tempered glass, and aluminum, providing durability and a sleek aesthetic. Both left and right side panels are tempered glass, showcasing your components. With support for E-ATX motherboards up to 280mm width, ATX, Micro-ATX, and Mini-ITX, it accommodates a wide range of builds. The TK-5 can house graphics cards up to 420mm, CPU coolers up to 165mm, and power supplies up to 220mm. It includes two 3.5" HDD bays and two 2.5" SSD bays, along with seven expansion slots. The front I/O offers one USB 3.0 Type-A, one USB 3.2 Gen 2 Type-C, and HD audio. Radiator support includes up to 360mm on top and bottom, with fan support for up to 3x 120mm or 2x 140mm on top and bottom, and 1x 120mm at the rear. The case is finished in black.

Advantages

Dual-chamber design for optimal airflow and cable management. Tempered glass panels on both sides for a clear view of your build. Supports large components including E-ATX motherboards, long GPUs, and tall CPU coolers. Versatile cooling options with support for up to 360mm radiators on top and bottom.

Suitable for

• High-end gaming PCs
• Workstations
• Custom water-cooling builds
• Enthusiast builds requiring large components

Key specifications

• Case Type: Midi-Tower
• Motherboard Support: E-ATX (up to 280mm), ATX, Micro-ATX, Mini-ITX
• Material: Steel, Tempered Glass, Aluminum
• Color: Black
• Drive Bays: 2x 3.5" HDD, 2x 2.5" SSD
• Expansion Slots: 7
• Front I/O: 1x USB 3.0 Type-A, 1x USB 3.2 Gen 2 Type-C, 1x HD Audio
• Max GPU Length: 420 mm
• Max CPU Cooler Height: 165 mm
• Max PSU Length: 220 mm
• Radiator Support: Top up to 360mm, Bottom up to 360mm
• Fan Support: Top 3x 120mm / 2x 140mm, Bottom 3x 120mm / 2x 140mm, Rear 1x 120mm
• Side Panel: Tempered Glass (Left & Right)
• PSU Form Factor: ATX
• Case Structure: Dual Chamber Design

Recommendations

For optimal performance, pair this case with high-airflow fans and a modular power supply to take advantage of the dual-chamber cable management. Ensure your motherboard width does not exceed 280mm for E-ATX compatibility.
