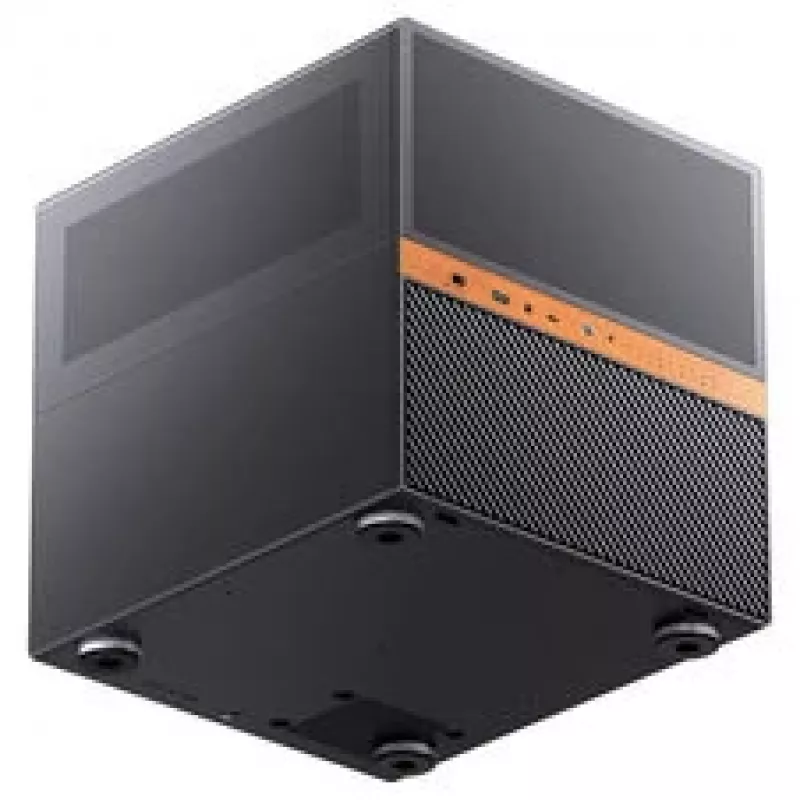

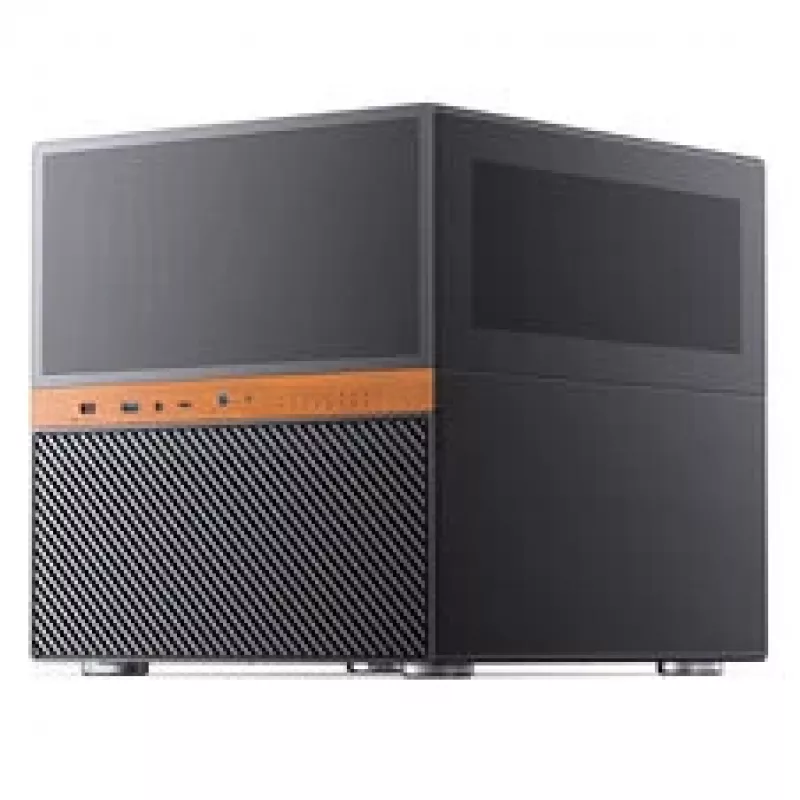

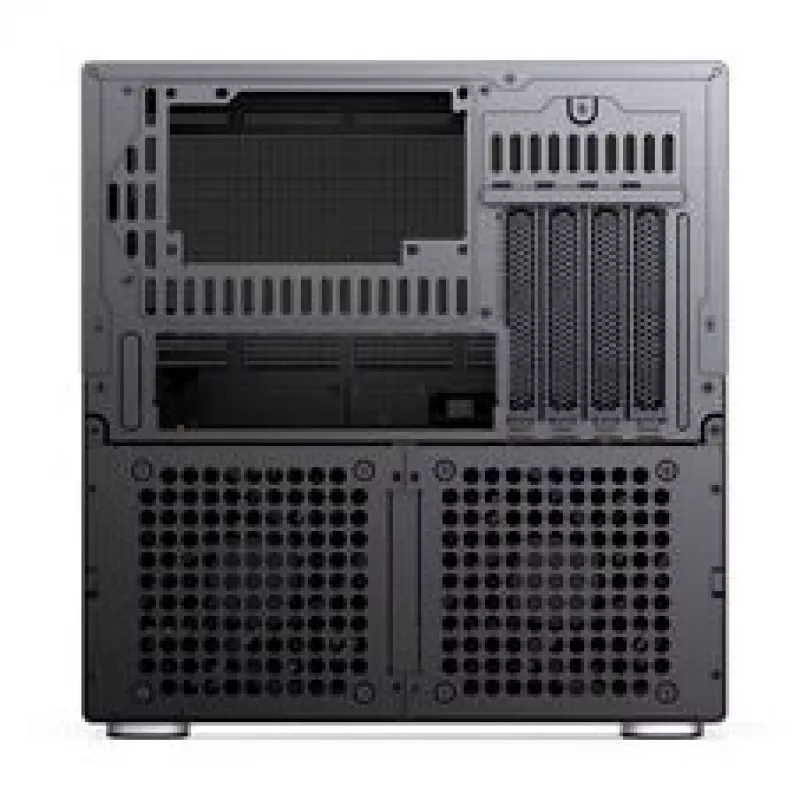

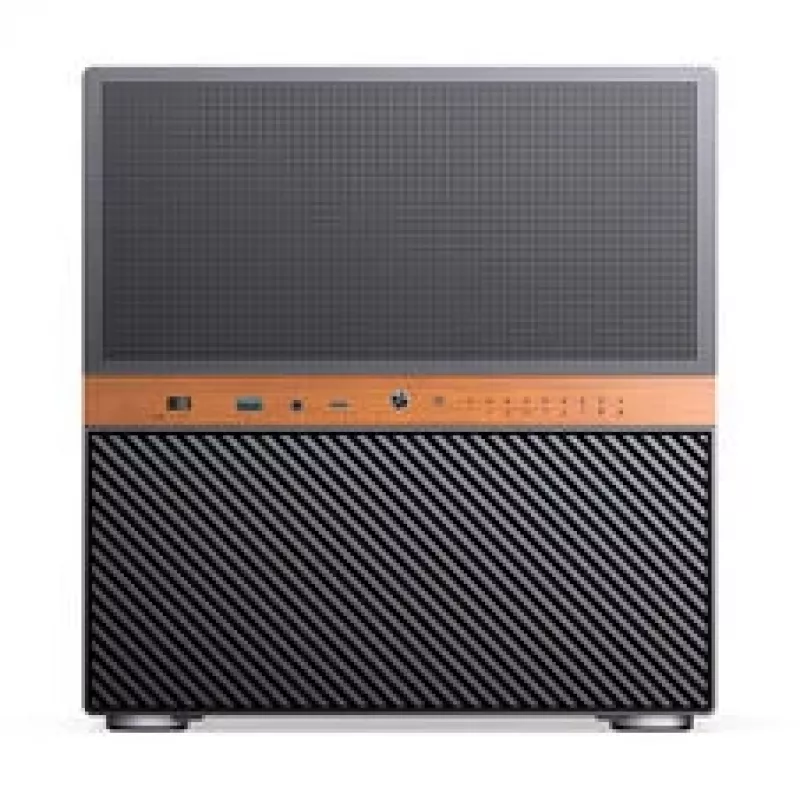

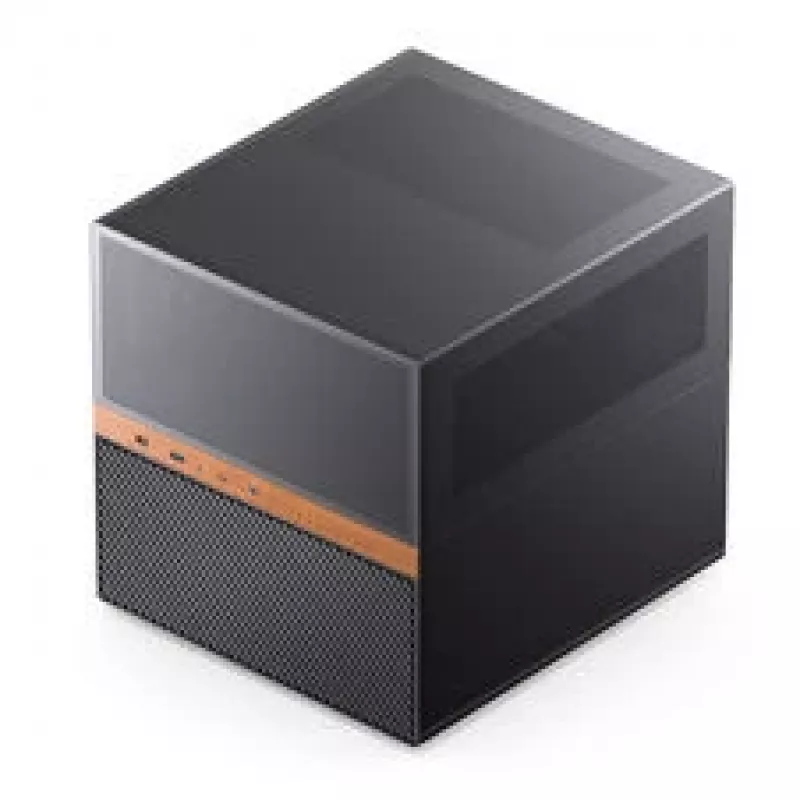

Jonsbo N6 NAS Cube Case, Micro-ATX, Steel/Mesh, Black

The Jonsbo N6 is a compact cube case built for high-capacity NAS systems, offering six 3.5-inch drive bays in a remarkably small footprint. Its steel and mesh construction ensures durability and excellent passive airflow, while dust filters keep internals clean. Supporting Micro-ATX and Mini-ITX motherboards, this case balances storage density with flexible hardware options.

Advantages

Steel and mesh panels provide robust build quality and superior ventilation for drives. Front I/O includes USB 3.0 Type-A and Type-C ports for fast data transfers. A pre-installed 120mm rear fan ensures active cooling, with an optional top mount for additional exhaust. SFX and SFX-L power supply support (up to 125mm) allows compact yet efficient builds.

Suitable for

• Home NAS and media server builds requiring multiple 3.5-inch drives
• Small form factor systems where storage capacity is a priority
• Users seeking a discreet, professional-looking case with mesh aesthetics
• Builders using SFX or SFX-L power supplies

Key specifications

• Case type: Cube
• Motherboard support: Micro-ATX, Mini-ITX
• Material: Steel, Mesh
• Colour: Black
• Drive bays: 6x 3.5" internal, 2x 2.5" internal
• Expansion slots: 4 horizontal
• Front I/O: 1x USB 3.0 Type-A, 1x USB 3.0 Type-C, 1x 3.5mm audio
• Pre-installed fans: 1x 120mm rear
• Optional fan mounts: 1x 120mm top
• PSU support: SFX, SFX-L (max length 125mm)
• Max CPU cooler height: 130mm
• Max GPU length: 255mm (with 3.5" drives installed)
• Dust filters: Yes (bottom, top)

Recommendations

For storage-focused builds, pair the N6 with a high-efficiency SFX power supply and low-profile CPU cooler to maximize drive cooling and maintain quiet operation. The mesh panels are ideal for passive drive cooling in always-on NAS systems.
