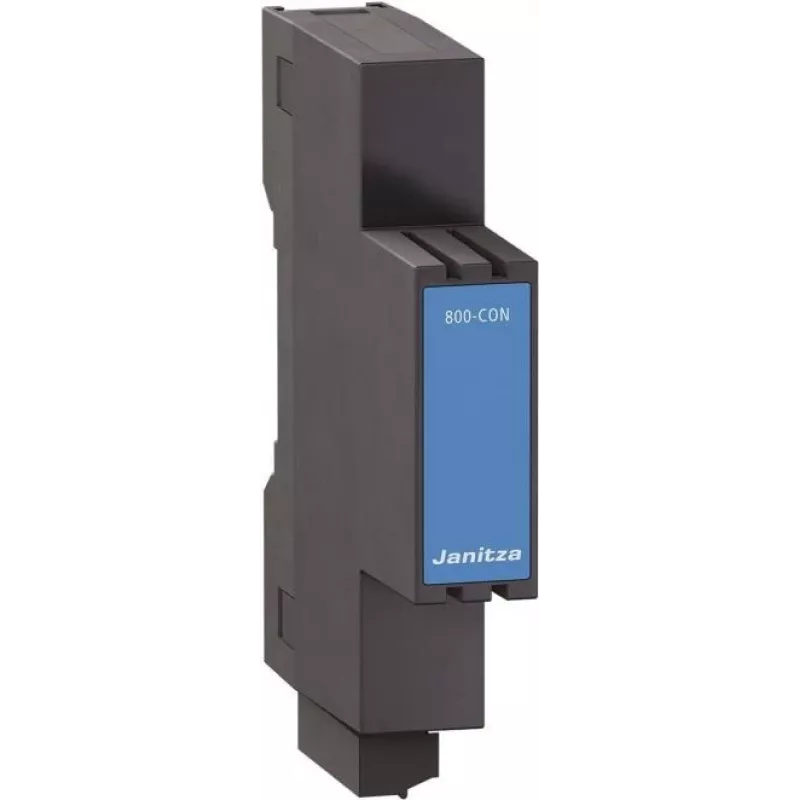

Janitza Set Modul 800-CON Module Connection Set (5231210)

Module connection set for the Janitza UMG 800 series, enabling internal data communication and power supply between the UMG 800-CON communication module and the main unit. The set includes a 10 cm flat ribbon cable with two multi-pin connectors, designed for plug-and-play installation.

Advantages

Facilitates reliable inter-module communication within the UMG 800 system. The short cable length minimizes signal degradation and ensures a tidy internal layout. Plug-and-play design allows for quick and tool-free installation.

Suitable for

• Janitza UMG 800 series power quality analyzers
• Integration of the UMG 800-CON communication module
• Energy management and power monitoring systems

Key specifications

• Product type: Module connection set
• Compatibility: Janitza UMG 800 series
• Specific module: UMG 800-CON
• Function: Inter-module data communication and power supply
• Connection interface: Internal module bus
• Cable type: Flat ribbon cable
• Cable length: 10 cm
• Number of connectors: 2
• Connector type: Multi-pin header/socket
• Installation method: Plug-and-play internal connection
• Operating temperature range: -25°C to +70°C
• Storage temperature range: -40°C to +85°C
• RoHS compliance: Yes
• Certifications: CE

Recommendations

For use with Janitza UMG 800 series devices when adding the UMG 800-CON communication module. Ensure proper alignment of connectors during installation.
