j5create JCD392 4K60 Elite USB-C® 10Gbps Travel Dock, Space Grey

The j5create JCD392 4K60 Elite USB-C Travel Dock is a compact wired docking solution that provides a full range of ports for work and travel. It uses an advanced USB-C E‑Mark controller for compatibility with USB4, Thunderbolt 3 and Thunderbolt 4 hosts and supports DisplayPort 1.4 to drive a 4K 60Hz HDMI display. The dock also offers Gigabit Ethernet and three SuperSpeed 10 Gbps USB ports (one USB‑C and two USB‑A), with the USB‑C port supporting up to 100W power pass‑through when a power adapter is connected.

Advantages

This travel dock combines video, wired network and high‑speed data transfer in a small grey housing, providing 4K60 HDMI output, reliable 10/100/1000 Mbit/s Ethernet and three 10 Gbps USB ports for peripherals or downstream charging. The built‑in USB‑C E‑Mark chip ensures broad host compatibility with recent USB4 and Thunderbolt standards while enabling up to 100W power delivery through the USB‑C port.

Suitable for

• Connecting a 4K 60Hz external HDMI display to a compatible USB‑C host
• Providing wired Gigabit Ethernet for laptops or tablets
• Attaching high‑speed USB peripherals and charging devices
• Use as a compact travel dock for business trips or remote work

Key specifications

• Model: j5create JCD392 4K60 Elite USB‑C Travel Dock

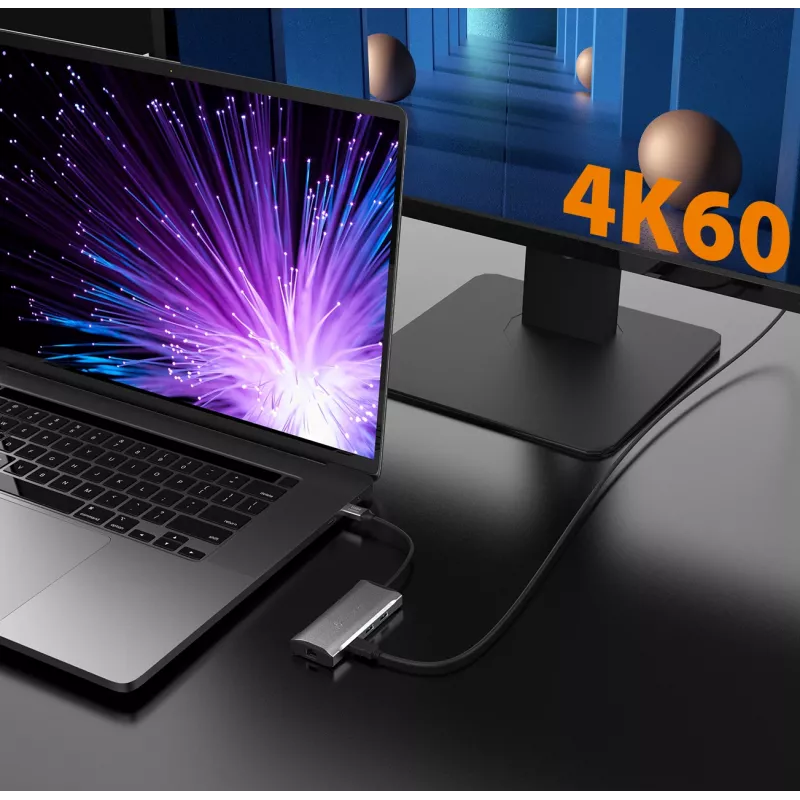

• Video: HDMI output supporting 4K at 60Hz via DisplayPort 1.4

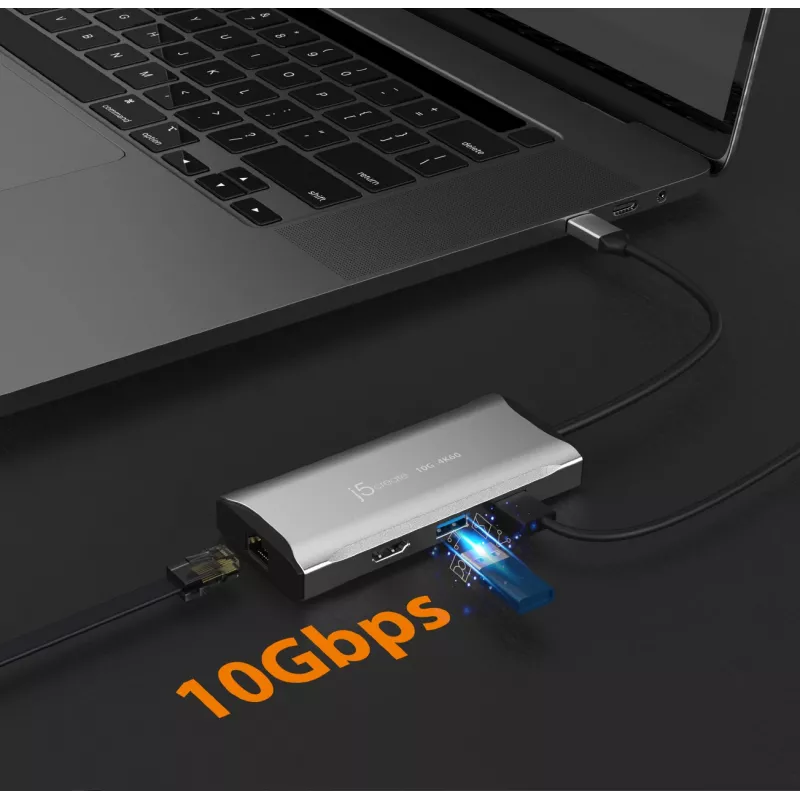

• USB ports: 1 × USB‑C SuperSpeed 10 Gbps, 2 × USB‑A SuperSpeed 10 Gbps
• Ethernet: Gigabit Ethernet (10/100/1000 Mbit/s)

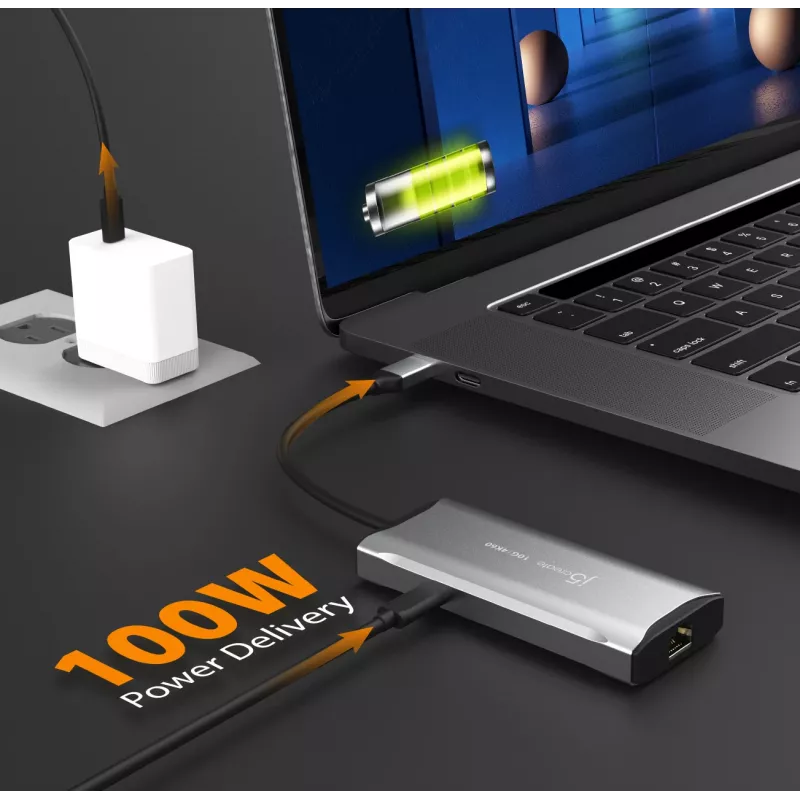

• Power delivery: USB‑C power pass‑through up to 100W (when connected to an external adapter)
• Connectivity: Wired
• Dimensions: 110 mm × 47 mm × 16 mm
• Weight: 0.1 kg
• Colour: Grey

How to use

Connect the dock to your host device using the built‑in USB‑C cable. If you need to charge the host or supply power to downstream devices, connect a compatible USB‑C power adapter to the dock to enable up to 100W power pass‑through. Attach an HDMI cable from the dock to an external display to use the 4K60 output, and connect Ethernet and USB peripherals to the appropriate ports. The dock is plug‑and‑play with hosts that support the listed standards; check your device’s compatibility with USB4/Thunderbolt and DisplayPort Alt Mode if necessary.

Recommendations

For stable 4K@60Hz video and full bandwidth on USB and Ethernet, use a host device that supports DisplayPort 1.4 over USB‑C or Thunderbolt, and connect a 100W (or appropriate) USB‑C power adapter when charging or powering multiple peripherals.
