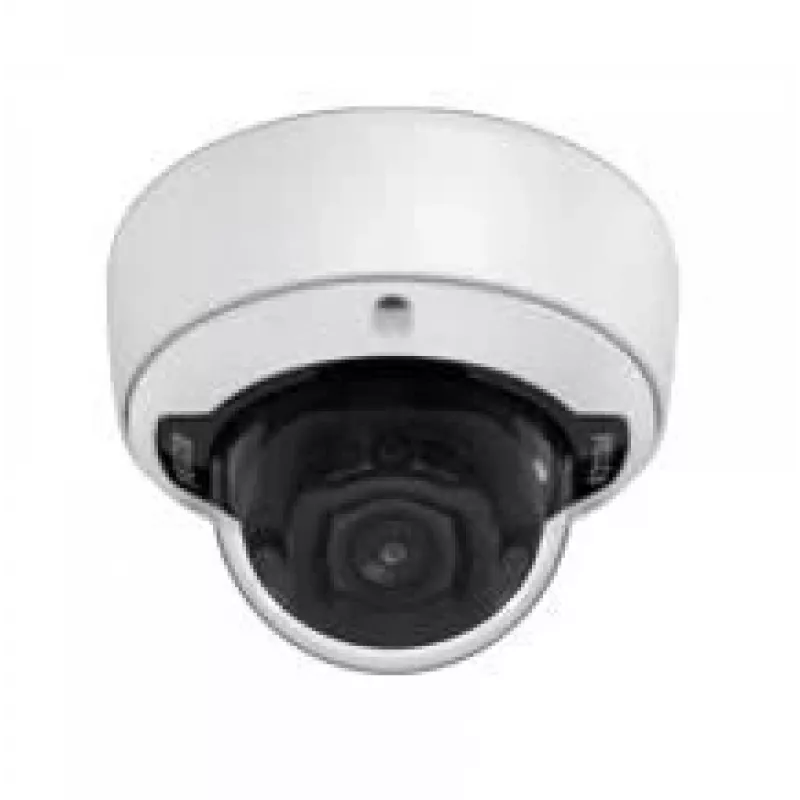

IP security camera Pelco SRXP4-5V10-EMD Dome

The Pelco SRXP4-5V10-EMD Dome is an outdoor IP security camera offering 2592 x 1944 resolution, motorized focus and 360° rotation. Designed for ceiling mounting, this wired camera provides a 95° horizontal field of view and a low-light sensitivity down to 0.02 lx to capture clear images in challenging lighting conditions. Built for integration with modern video management systems, it supports video motion detection and provides reliable Ethernet connectivity for continuous surveillance.

Advantages

This IP security camera delivers high-resolution imaging and on-camera analytics to help distinguish normal activity from suspicious behavior and reduce false alarms. The motorized focus and full rotation simplify installation and framing, while low-light performance maintains image clarity after dusk. The camera is compatible with Pelco Elevate for camera-to-cloud workflows and is based on an open architecture for easier configuration and VMS integration.

Suitable for

• Perimeter and entrance surveillance for commercial buildings
• Parking lots and outdoor common areas
• Retail exteriors requiring continuous monitoring
• Public spaces where ceiling-mounted domes are preferred

Key specifications

• Resolution: 2592 x 1944 pixels
• Frame rate: 30 fps
• Horizontal viewing angle: 95°
• Optics: motorized focus with 360° rotation
• Minimum illumination: 0.02 lx
• Placement: outdoor, ceiling mounting
• Connectivity: wired Ethernet (LAN)
• Onboard features: video motion detection, Smart Analytics
• Weight: 0.81 kg
• Colour: black, white

How to use

Mount the dome camera on a suitable ceiling surface following site structural and cabling requirements, and connect to the network via Ethernet. Use the motorized focus and rotation controls during setup to frame the desired area, then configure image settings and analytics through the VMS or the camera’s web interface. Verify minimum illumination performance at typical night conditions and adjust exposure or IR settings if available.

Recommendations

Install the camera in a sheltered outdoor location to protect against direct weather exposure, run a protected Ethernet cable or conduit for reliable connectivity, and integrate with Pelco Elevate or your existing VMS to enable real-time threat detection and reduce false alarms.
