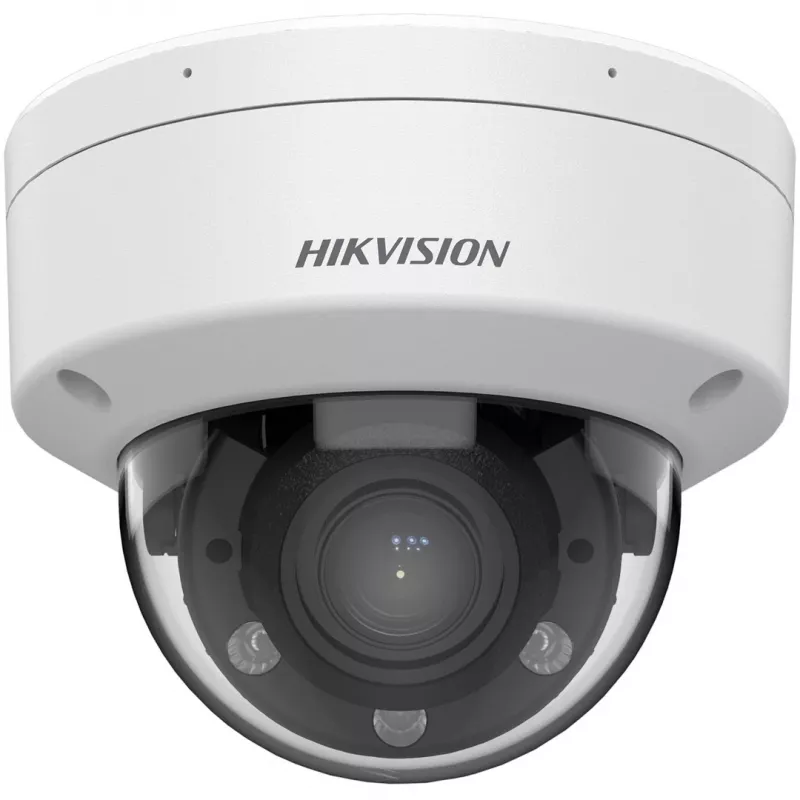

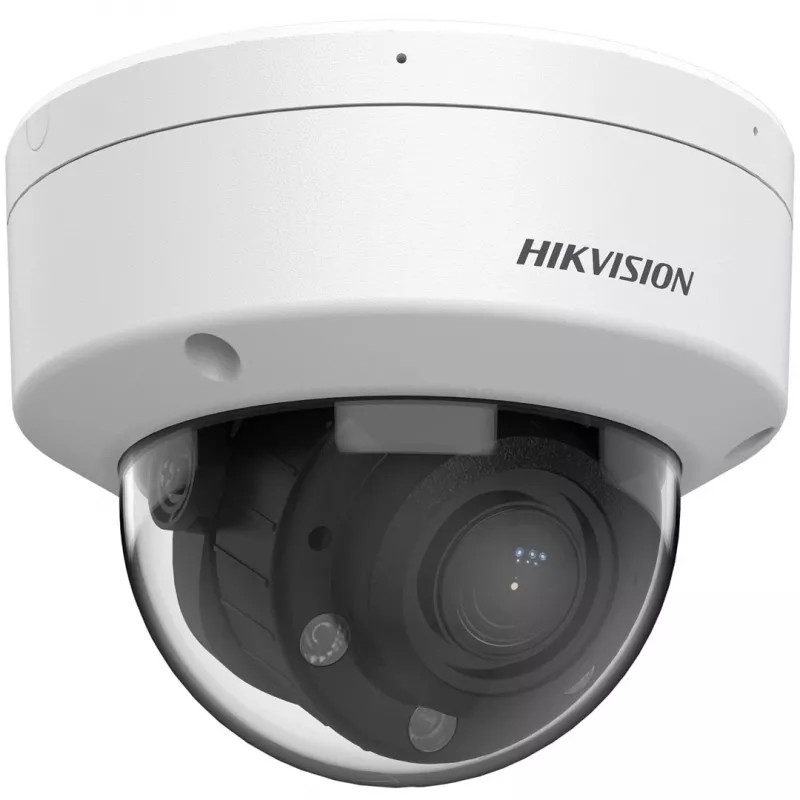

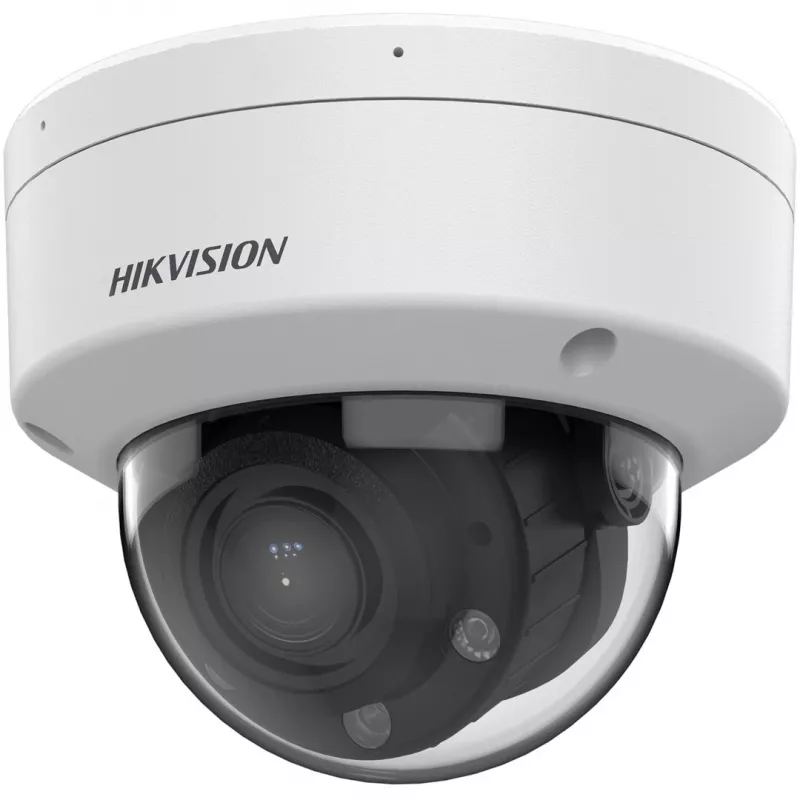

IP security camera Hikvision Value Series DS-2CD1763G2-LIZU(2.8-12MM)PL

The Hikvision Value Series DS-2CD1763G2-LIZU(2.8-12MM)PL is a dome IP security camera for indoor and outdoor surveillance. Offering 6 MP resolution (3200 x 1800 pixels) and a motorized 2.8–12 mm varifocal lens, the camera provides flexible field-of-view adjustment and wide coverage. Built for wired Ethernet networks and ceiling mounting, it combines long-range Smart Hybrid Light illumination with ColorVu low-light imaging and 120 dB WDR to maintain clear image quality in varied lighting conditions.

Advantages

This model delivers high-resolution imaging and long-distance detection up to 68 meters while preserving detail with efficient H.265+ compression. Motorized focus and a 355° rotation capability simplify installation and scene framing. The camera supports intelligent Motion Detection 2.0 that distinguishes humans and vehicles from other moving objects, and includes a built-in microphone for basic audio monitoring. Durable ingress and impact protection ratings ensure suitability for outdoor environments.

Suitable for

• Retail stores and small business premises requiring detailed visual monitoring
• Office interiors and building entrances where ceiling-mounted coverage is preferred
• Parking areas, loading docks or perimeters needing long-range illumination and detection
• Common areas in residential complexes and multi-tenant buildings

Key specifications

• Image sensor and resolution: 6 MP, 3200 x 1800 pixels
• Lens: Motorized varifocal 2.8–12 mm
• Frame rate: Up to 30 fps
• Night and low-light: ColorVu low-light imaging, Smart Hybrid Light with up to 68 m detection, infrared/white light night support
• Wide dynamic range: 120 dB WDR
• Video compression: H.265+ for efficient storage and bandwidth use
• Storage: MicroSD card support (up to 512 GB)
• Connectivity: Wired Ethernet LAN
• Mounting: Ceiling mount, dome form factor with 355° rotation range
• Environmental protection: Weather-resistant design suitable for indoor and outdoor use
• Physical color and weight: White housing, approximately 0.54 kg

How to use

Mount the camera on a suitable ceiling surface using the included mounting hardware and connect it to a wired Ethernet network for power and data (PoE if supported by the installation). Use the motorized lens controls via the camera web interface or supported NVR software to set focal length and framing. Configure Motion Detection 2.0 and alarm settings in the device software to enable human and vehicle detection, and set recording or notification rules. Insert a microSD card if local recording is required and verify timezone, exposure, and WDR settings for optimal image balance.

Recommendations

Position the camera to avoid direct bright light sources in the main field of view to reduce glare; rely on WDR for high-contrast scenes and Smart Hybrid Light for low-light coverage. For outdoor installations, confirm proper sealing of cable entries and use PoE switches or midspans compliant with the camera's power requirements. Regularly check firmware updates and review detection zones to reduce false alarms.
