IP security camera Hikvision Pro Series DS-2CD2T87G2P-LSU/SL(4mm)(C)/O-STD/BLACK

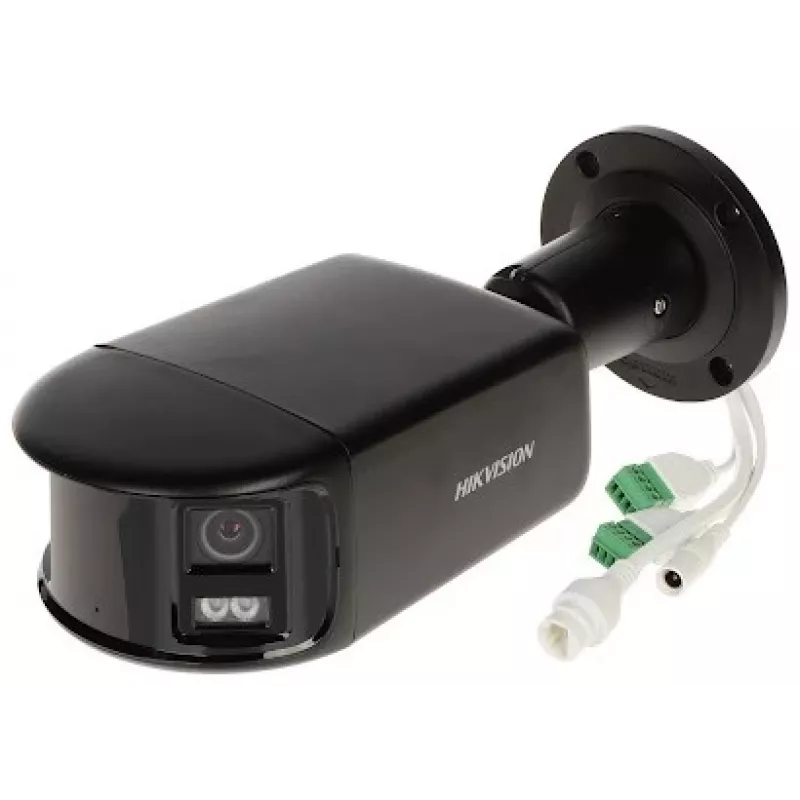

The Hikvision Pro Series DS-2CD2T87G2P-LSU/SL(4mm)(C)/O-STD/BLACK is an indoor IP security camera offering ultra-wide monitoring with a 180° field of view and a 5120 x 1440 pixel (8 MP) imaging sensor. Designed for ceiling or wall installation, the black bullet-style camera uses a 4 mm fixed focal length lens and a CMOS 1/1.8" sensor to capture detailed panoramic images. The unit connects via wired Ethernet and includes features for improved image quality, compression efficiency, and basic on-board storage support for flexible indoor surveillance deployment.

Advantages

This camera provides very wide-angle coverage suitable for open indoor areas while keeping a compact bullet form factor for ceiling or wall mounting. It incorporates advanced image technologies such as wide dynamic range (130 dB WDR) to handle strong backlight, Smart Hybrid Light for improved low-light performance, and efficient H.265+ compression to reduce bandwidth and storage requirements. Additional capabilities include deep-learning based human and vehicle classification, two-way audio for real-time interaction, active strobe and audio alarm functions to deter intruders, and on-board storage support up to 512 GB.

Suitable for

• Monitoring retail sales floors and checkout areas
• Surveillance of lobbies, corridors, and open-plan office spaces
• Coverage of reception areas and waiting rooms where wide-angle view is needed
• Indoor monitoring in warehouses or storage rooms with ceiling or wall mounting

Key specifications

• Resolution: 5120 x 1440 pixels (8 MP)
• Field of view: 180°
• Image sensor: CMOS 1/1.8"
• Focal length: 4 mm (fixed)
• Compression: H.265+ support for efficient storage and streaming
• Wide dynamic range: 130 dB WDR for improved detail in high-contrast scenes
• Night vision: up to 40 m IR illumination
• Audio: built-in two-way audio and audio/alarm interface available
• Alarm: active strobe light and audio alarm support
• On-board storage: SD card slot supporting up to 512 GB
• Connectivity: Wired Ethernet LAN (no Wi‑Fi)
• Mounting: Ceiling or wall mounting supported
• Ingress protection: suitable for indoor placement (bullet camera form)
• Color: Black
• Weight: 1.46 kg

How to use

Install the camera on a ceiling or wall using appropriate fasteners and cable routing for the wired Ethernet connection. Position the camera to take advantage of the 180° field of view so that the monitored area is covered with minimal blind spots. Connect the device to a PoE-capable switch or an Ethernet network and configure network settings and recording preferences through Hikvision-compatible management software or NVR. Adjust audio, strobe and alarm parameters and enable human/vehicle classification features as required for the specific surveillance scenario. Use the SD card slot for local recording if on-board storage is needed.

Recommendations

For best results, mount the camera at a height and angle that allow the 180° field of view to encompass the target area without excessive obstructions. Ensure stable wired network connectivity and allocate sufficient storage or NVR capacity when using high-resolution streams. Use WDR and Smart Hybrid Light settings to optimize image quality in scenes with mixed lighting, and regularly test the two-way audio and alarm functions to confirm correct operation.
