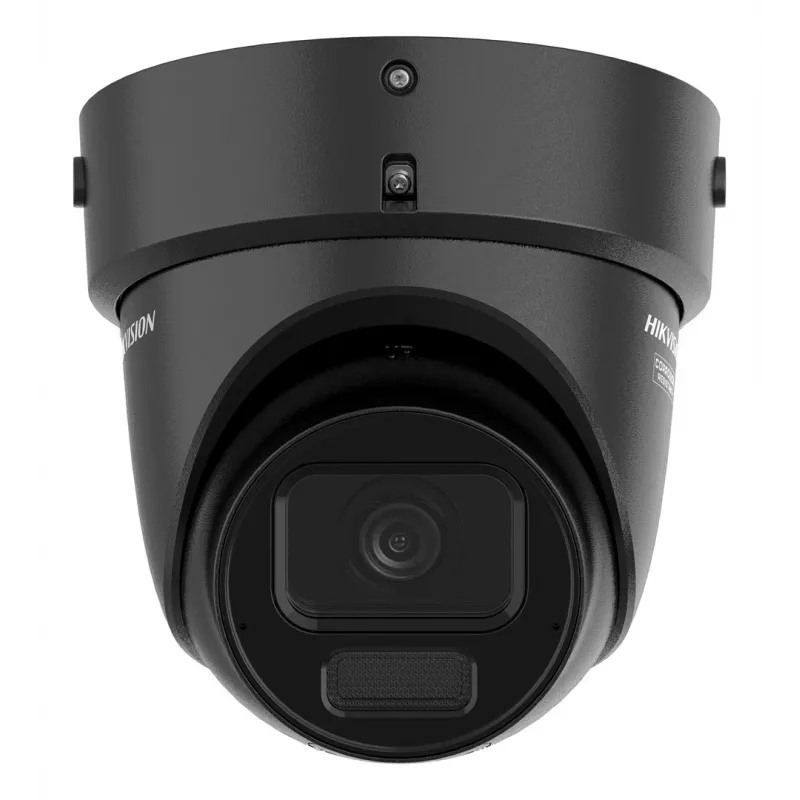

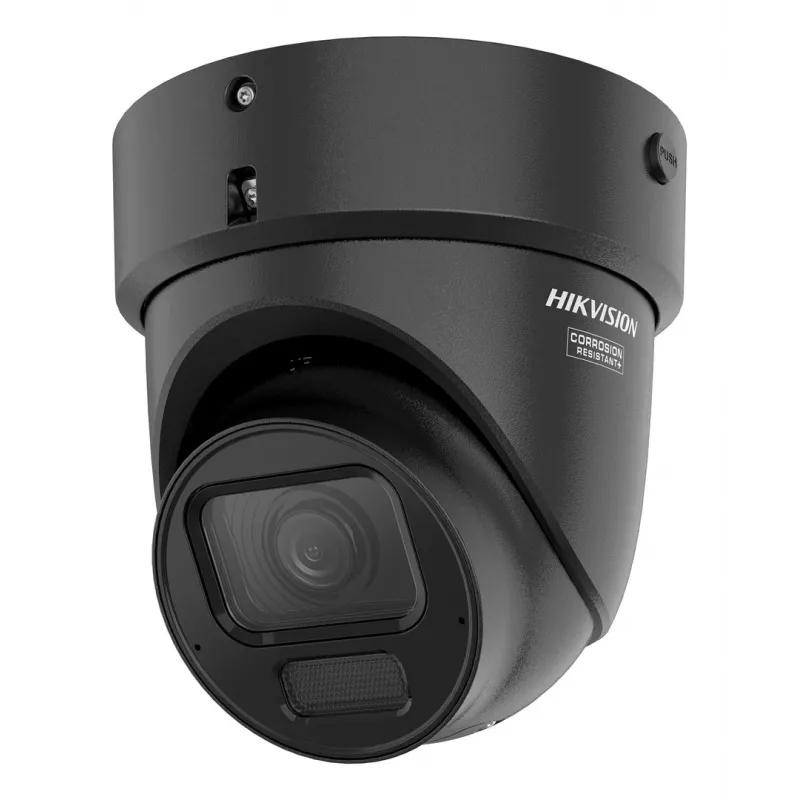

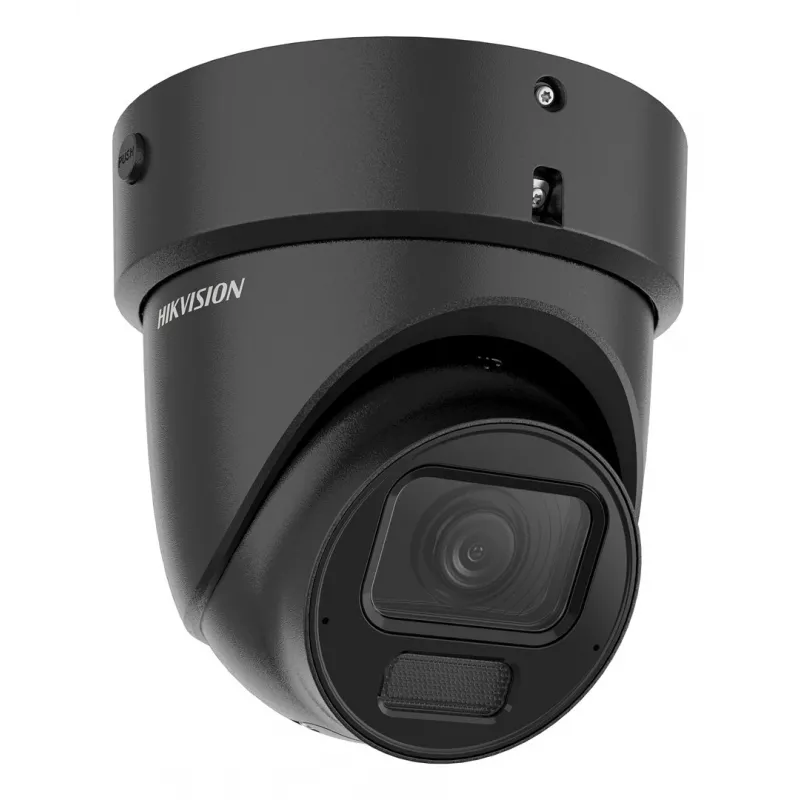

IP security camera Hikvision Pro Series DS-2CD2H86G2H-IZSY (2.8–12 mm) Turret Outdoor 8MP 3840x2160 PoE, 30 fps

The Hikvision Pro Series DS-2CD2H86G2H-IZSY (2.8–12 mm) is an outdoor turret IP security camera offering 8MP (3840×2160) resolution from a 1/1.8" CMOS sensor. The unit includes a motorized varifocal 2.8–12 mm lens with a horizontal field of view of approximately 112.3–41.2°, 360° rotation capability, and up to 30 fps recording. Designed for ceiling or wall mounting, it supports Power over Ethernet (PoE) for simplified wired installation and provides robust environmental protection for perimeter, site and building surveillance.

Advantages

The camera combines high-resolution imaging with a motorized varifocal lens to allow flexible framing and clear detail at long distances. Integrated deep-learning classification helps distinguish persons and vehicles for more accurate event detection. Hardware protection features include high ingress and impact resistance for reliable outdoor operation, while wide dynamic range (120 dB) and efficient H.265+ compression maintain image quality in challenging light and reduce bandwidth and storage requirements.

Suitable for

• Perimeter and fence line surveillance
• Parking lots and vehicle access control
• Building exterior and entrance monitoring
• Site and facility security where wired PoE connectivity is preferred

Key specifications

• Image sensor: 1/1.8" CMOS, 8 MP (3840×2160)
• Lens: Motorized varifocal 2.8–12 mm (horizontal angle approx. 112.3°–41.2°)
• Frame rate: up to 30 fps at full resolution
• Rotation: 360° rotation capability for flexible orientation
• Connectivity: Wired Ethernet with Power over Ethernet (PoE) support
• Night vision: IR illumination for extended detection range (approx. 89.2 m detection range noted)
• Image enhancement: 120 dB Wide Dynamic Range (WDR)
• Compression: H.265+ for bandwidth and storage efficiency
• Environmental protection: IP67 dust/water resistant and IK10 vandal resistance; anti-corrosion design (NEMA 4X equivalent)
• Mounting: Ceiling or wall mountable
• Color: Black
• Weight: 1.23 kg

How to use

Mount the camera on a sturdy ceiling or wall bracket at the chosen surveillance location and connect it to a PoE-capable network switch or injector to supply power and data over a single Ethernet cable. Use the motorized varifocal control through the camera interface or supported client software to set focal length and focus for the area of interest. Configure resolution, frame rate and compression settings to balance image quality with available bandwidth and storage. Enable person and vehicle detection features where needed and adjust sensitivity and detection zones to reduce false alarms.

Recommendations

For optimal results, install the camera at a height and angle that provides unobstructed sight lines to critical areas and allows the varifocal lens to capture required detail. Use PoE switches that provide adequate power budget and choose network storage or NVR solutions that support H.265+ decoding. Regularly check seals and mounting hardware in exposed outdoor locations and perform firmware updates to maintain detection performance and security functionality.
