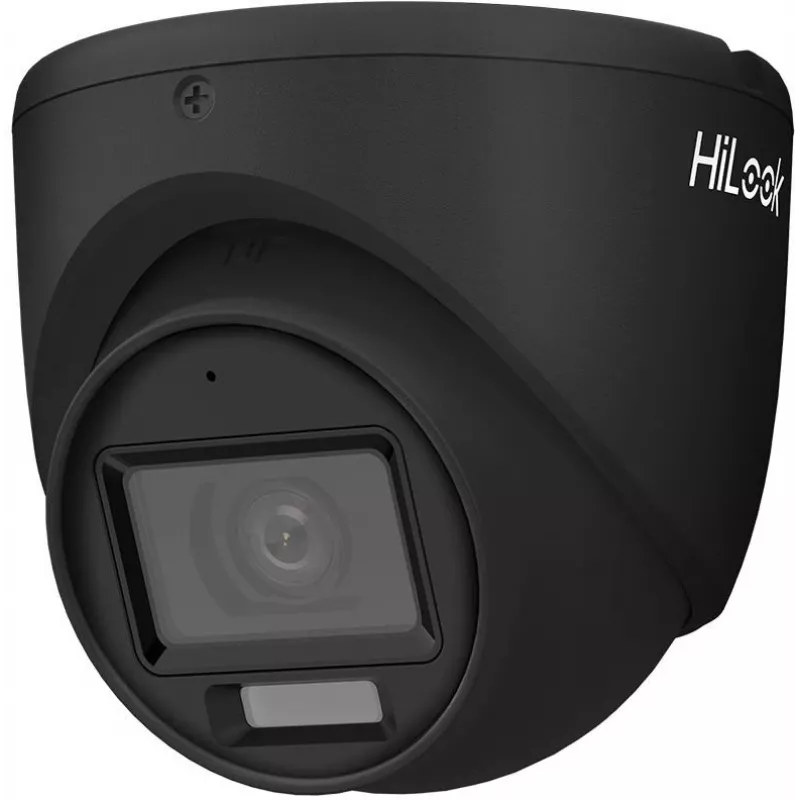

Hikvision Hilook TVI-T8M-20DL 8MP 4-in-1 Dome Camera, Black, 2.8mm

The Hikvision Hilook TVI-T8M-20DL is a high-performance 8MP (4K) dome camera designed for professional surveillance. Featuring 4-in-1 switchable video output (TVI/AHD/CVI/CVBS), it offers flexibility for various DVR systems. With a 2.8mm fixed lens providing a 102.4° horizontal field of view, this camera delivers crisp, detailed images. Its IP67-rated metal housing ensures durability in outdoor environments, while IR night vision up to 20 meters enables 24/7 monitoring.

Advantages

Exceptional 8MP resolution captures fine details, making it ideal for license plate recognition or facial identification. The 4-in-1 compatibility simplifies integration with existing analog systems. The robust metal construction and IP67 rating guarantee reliable operation in harsh weather conditions.

Suitable for

• Outdoor perimeter surveillance
• Parking lots and entrances
• Retail stores and warehouses
• Office buildings and schools

Key specifications

• Resolution: 8 MP (3840 x 2160)
• Sensor: 8.29 MP CMOS
• Lens: 2.8mm fixed focal
• Field of View: 102.4° horizontal
• Video Output: TVI / AHD / CVI / CVBS switchable
• IR Range: Up to 20m
• Minimum Illumination: 0.01 Lux (F1.2, AGC ON), 0 Lux with IR
• Day/Night: IR cut filter
• DWDR: Yes
• DNR: 2D DNR
• Power: 12 VDC ±25%, max 4.2 W
• Protection: IP67
• Operating Temperature: -40°C to 60°C
• Material: Metal

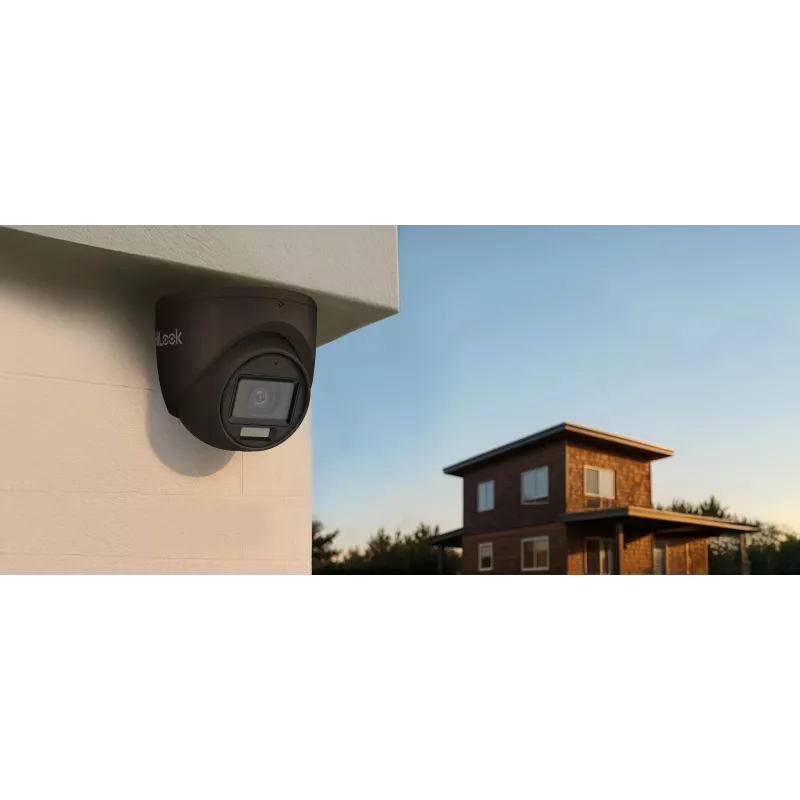

• Mounting: Ceiling/Wall

Recommendations

For optimal performance, pair with a compatible Hikvision DVR supporting 8MP TVI input. Use a regulated 12VDC power supply. Ensure proper mounting to avoid direct sunlight on the lens.
