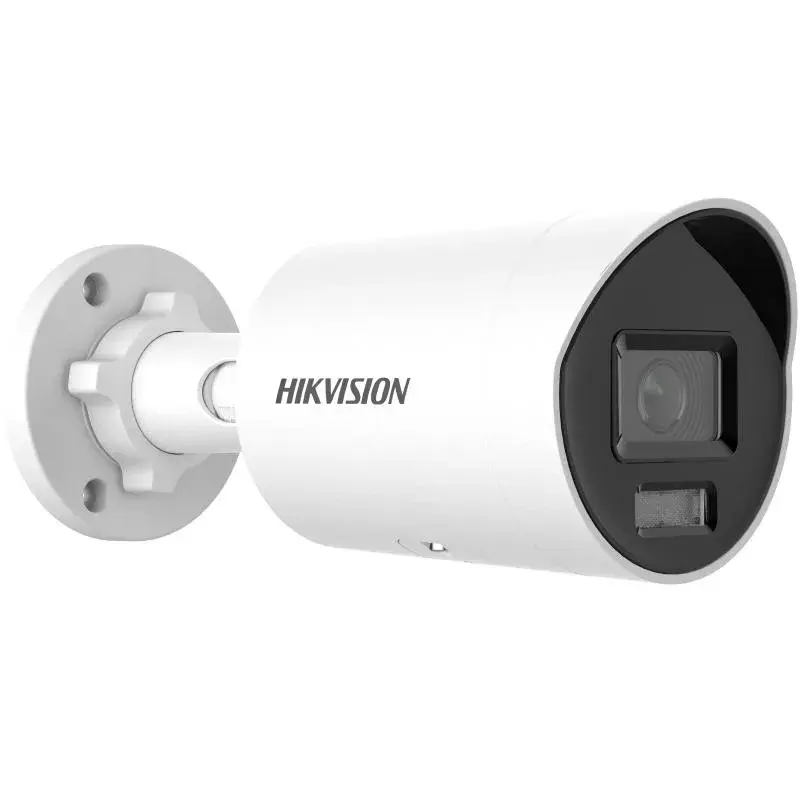

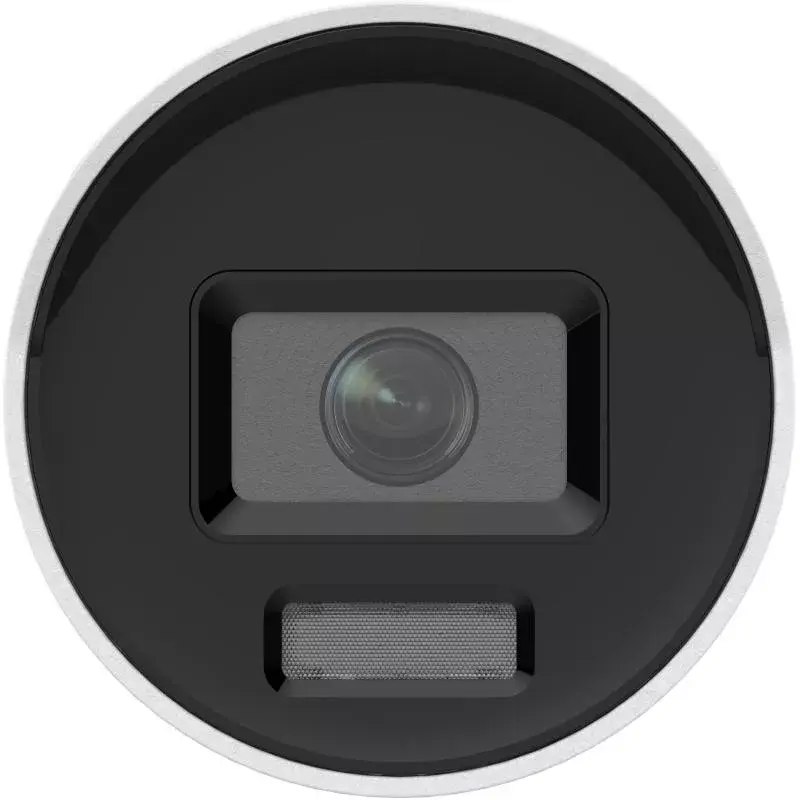

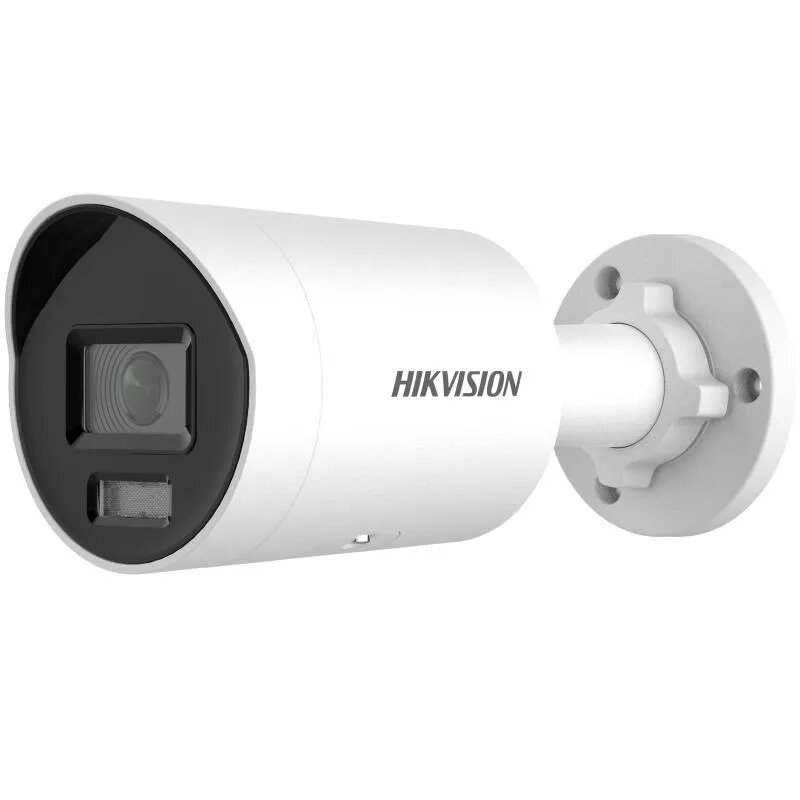

IP security camera Hikvision Pro Series DS-2CD2047G2H-LI(2.8mm)(eF)

The Hikvision Pro Series DS-2CD2047G2H-LI(2.8mm)(eF) is an outdoor fixed mini bullet IP security camera offering 2688 x 1520 pixel resolution and ColorVu Smart Hybrid Light technology. Designed for wall mounting and wired network connectivity, the camera uses a CMOS sensor to deliver daytime-like color imaging in varied lighting conditions while supporting a wide horizontal viewing angle of 104° and a vertical viewing angle of 54.4°. The model supports video motion detection and provides a detection distance of up to 61 m, making it suitable for perimeter and outdoor scene monitoring.

Advantages

This camera combines high-resolution 4 MP imaging with Smart Hybrid Light to maintain image clarity in different lighting situations while reducing reliance on infrared-only capture. With a 360° rotation specification for installation alignment, the DS-2CD2047G2H-LI simplifies aiming and field-of-view adjustment during mounting. Wired Ethernet connectivity ensures stable network performance and predictable bandwidth usage. The compact white bullet housing is intended for outdoor placement and wall mounting, with a moderate weight that facilitates secure installation.

Suitable for

• Perimeter surveillance of small to medium external areas
• Entrance and exit monitoring at commercial or residential buildings
• Parking lots, driveways and access roads
• Outdoor walkways and common areas where color detail is useful

Key specifications

• Maximum resolution: 2688 x 1520 pixels (4 MP)
• Frame rate: up to 30 fps
• Optical field of view: horizontal 104°, vertical 54.4°
• Lens focal length: 2.8 mm
• Sensor type: CMOS
• Detection distance: up to 61 m
• Connectivity: wired Ethernet (LAN)
• Mounting type: wall mount
• Placement: outdoor-rated design
• Color: white
• Weight: approximately 0.525 kg

How to use

Mount the camera to a suitable outdoor wall surface using compatible anchors and screws, orienting the bullet housing to cover the intended scene; the camera supports rotation during installation for accurate alignment. Connect the device to a PoE-capable switch or to a power source and wired LAN for network access, then configure network settings and video parameters through Hikvision management software or a compatible VMS. Enable video motion detection and adjust sensitivity and detection zones to reduce false alarms. Verify image framing in different lighting conditions and fine-tune exposure or Smart Hybrid Light settings as needed.

Recommendations

Install the camera at a height and angle that minimize glare and direct sunlight on the lens, and ensure a reliable wired network connection. Regularly check firmware updates from the manufacturer and perform periodic cleaning of the housing and lens to maintain optimal image quality. Configure recording and retention settings based on available bandwidth and storage capacity to balance continuous monitoring and storage requirements.
