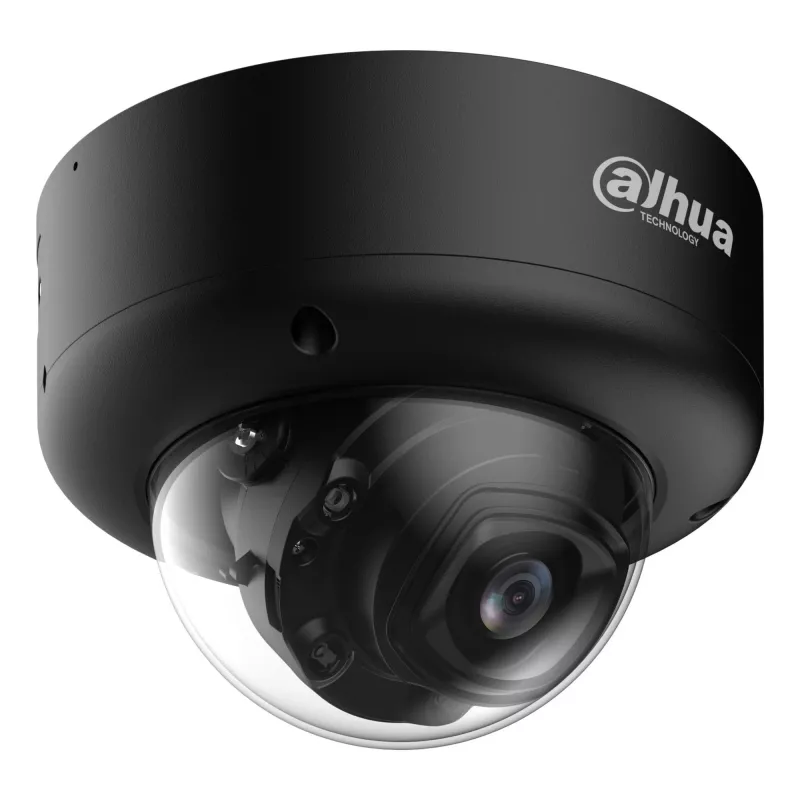

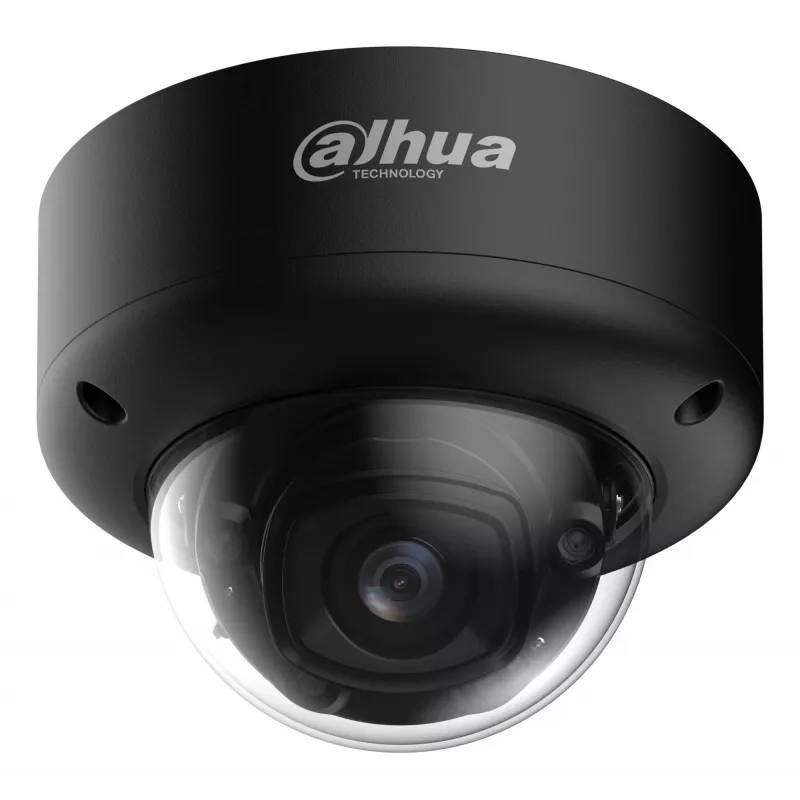

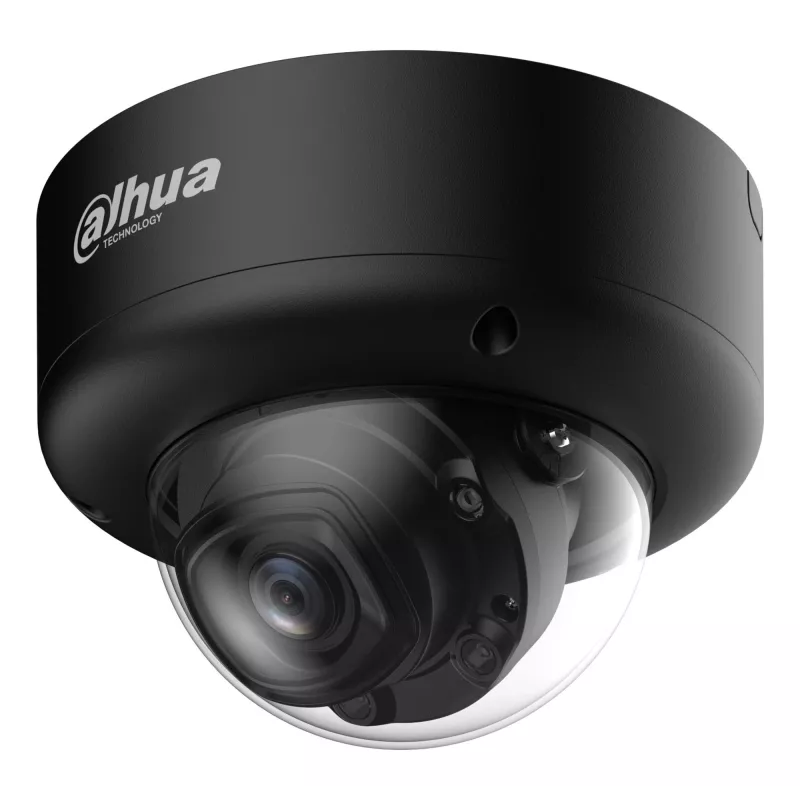

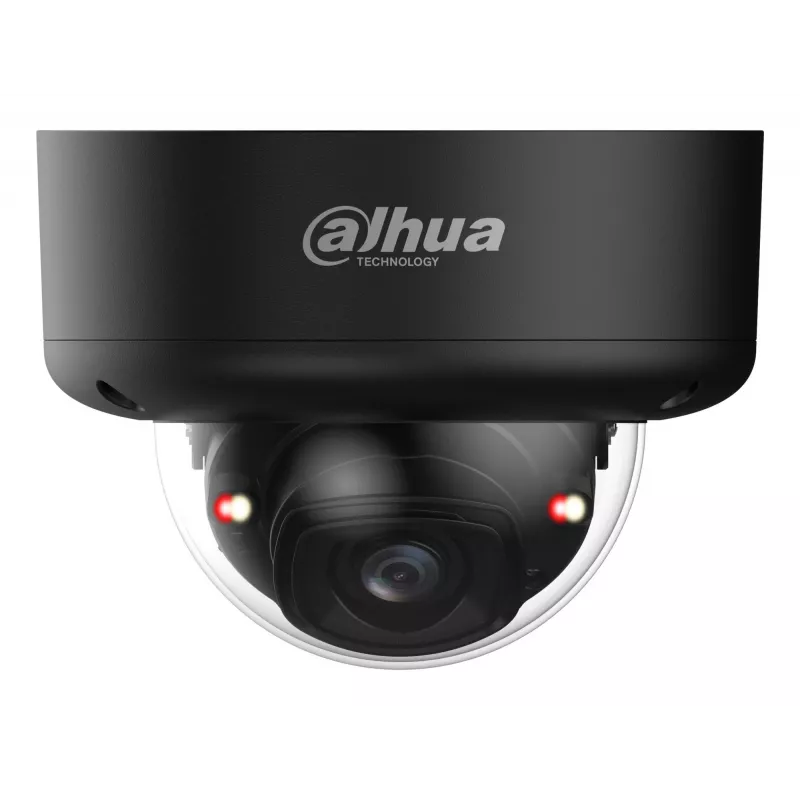

DAHUA 5MP IR Vari-focal Dome Network Camera IPC-HDBW5559E1-ZHE-IL-27135-BLACK

The DAHUA IPC-HDBW5559E1-ZHE-IL-27135-BLACK is a high-performance 5MP IR dome network camera designed for professional surveillance. Featuring a motorized vari-focal lens, true WDR 120 dB, and advanced AI analytics, it delivers exceptional image quality and intelligent monitoring capabilities in both indoor and outdoor environments.

Advantages

With 5MP resolution at 25/30 fps, this camera provides clear and detailed footage. The motorized lens (2.7–13.5 mm) allows remote adjustment of the viewing angle, while the built-in IR LEDs ensure visibility up to 40 m in complete darkness. AI features such as perimeter protection, face detection, and people counting enhance security efficiency. The IP67 and IK10 ratings guarantee durability against harsh weather and vandalism.

Suitable for

• Retail stores and shopping malls
• Office buildings and banks
• Warehouses and industrial facilities
• Residential complexes and parking lots

Key specifications

• Image Sensor: 1/2.7" 5MP progressive CMOS
• Max Resolution: 2592 × 1944
• Lens: Motorized vari-focal 2.7–13.5 mm
• IR Distance: Up to 40 m
• Video Compression: H.265, H.264, MJPEG
• WDR: 120 dB True WDR
• Minimum Illumination: 0.005 Lux (Color), 0 Lux (IR on)
• AI: Perimeter Protection, SMD Plus, Face Detection, People Counting, Heat Map
• Audio: Built-in mic, 1/1 audio in/out
• Alarm: 1/1 alarm in/out
• Storage: Micro SD up to 256 GB
• Network: RJ-45 10/100 Base-T
• Power: 12V DC / PoE (802.3af)
• Ingress Protection: IP67
• Vandal Resistance: IK10
• Operating Temperature: -30 °C to +60 °C

Recommendations

For optimal performance, use a PoE switch or injector compliant with IEEE 802.3af. Ensure the microSD card is rated for continuous recording. This camera is ideal for applications requiring high-definition video and intelligent analytics.
