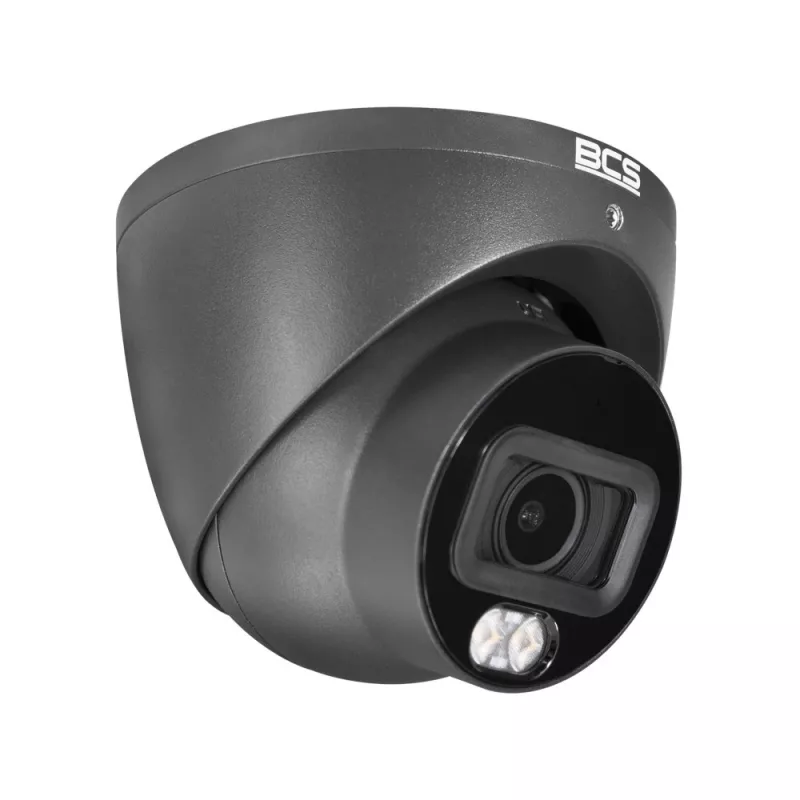

BCS 5MP IP Dome Camera BCS-L-EIP25FCR5L5-Ai2-G, 2.8mm, IR 30m, IP67, IK10, AI

The BCS-L-EIP25FCR5L5-Ai2-G is a high-performance 5MP IP dome camera designed for professional surveillance. Featuring a 1/2.7" CMOS sensor, it delivers crisp 2592x1944 resolution at 20fps. Equipped with a 2.8mm fixed lens (103° FoV), Smart IR up to 30m, and true 120dB WDR, it ensures clear imaging in challenging lighting. The camera supports H.265+ compression for efficient bandwidth and storage. Its robust IP67 and IK10 ratings make it suitable for outdoor and vandal-resistant installations. AI features include perimeter protection, SMD Plus, and face detection. Powered via PoE (802.3af) or DC 12V, with built-in microphone and microSD slot (up to 256GB).

Advantages

Exceptional image quality with 5MP resolution and 120dB WDR; reliable 24/7 operation with Smart IR; advanced AI analytics for intrusion detection; durable design with IP67 weatherproofing and IK10 vandal resistance; flexible power options (PoE/DC).

Suitable for

• Commercial and residential security
• Perimeter monitoring
• Retail and office environments
• Outdoor areas requiring high durability

Key specifications

• Image Sensor: 1/2.7" 5MP Progressive CMOS
• Max Resolution: 2592x1944 (5MP)
• Lens: 2.8mm fixed, FoV 103°
• IR Range: Up to 30m (Smart IR)
• Video Compression: H.265+, H.265, H.264+, H.264, MJPEG
• Frame Rate: 20fps @5MP, 25/30fps @4MP
• WDR: 120dB True WDR
• AI: Perimeter Protection, SMD Plus, Face Detection
• Audio: Built-in microphone
• Storage: microSD up to 256GB
• Network: 1x RJ-45 10/100Mbps
• Power: DC 12V / PoE (802.3af)
• Ingress Protection: IP67
• Vandal Resistance: IK10
• Material: Metal + Plastic
• Operating Temperature: -30°C to +60°C

Recommendations

For optimal performance, use a PoE switch or injector. Ensure proper mounting to maintain IP67 seal. Compatible with BCS NVRs and third-party systems via ONVIF.
