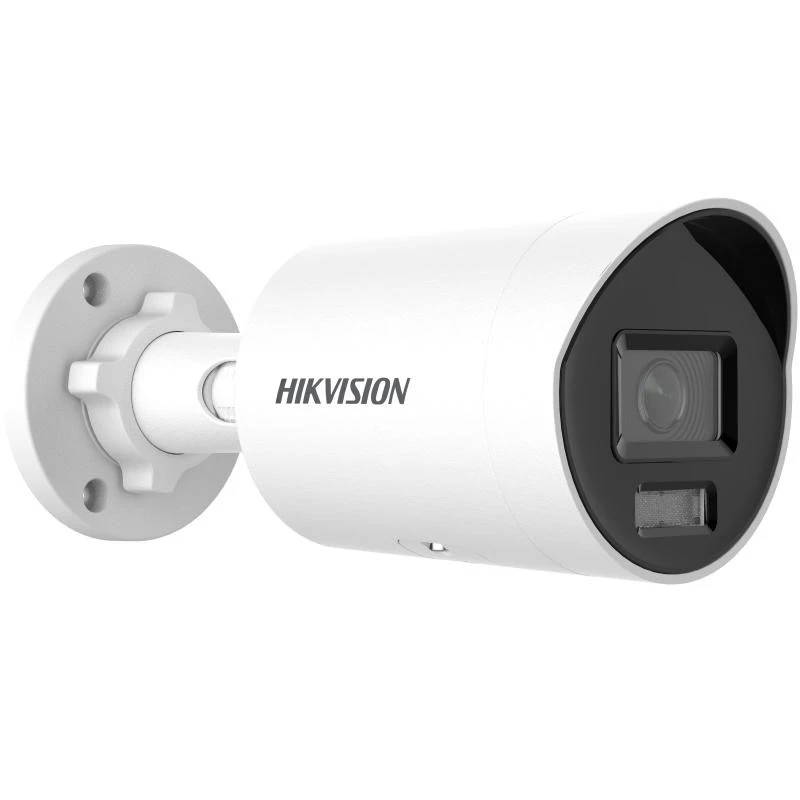

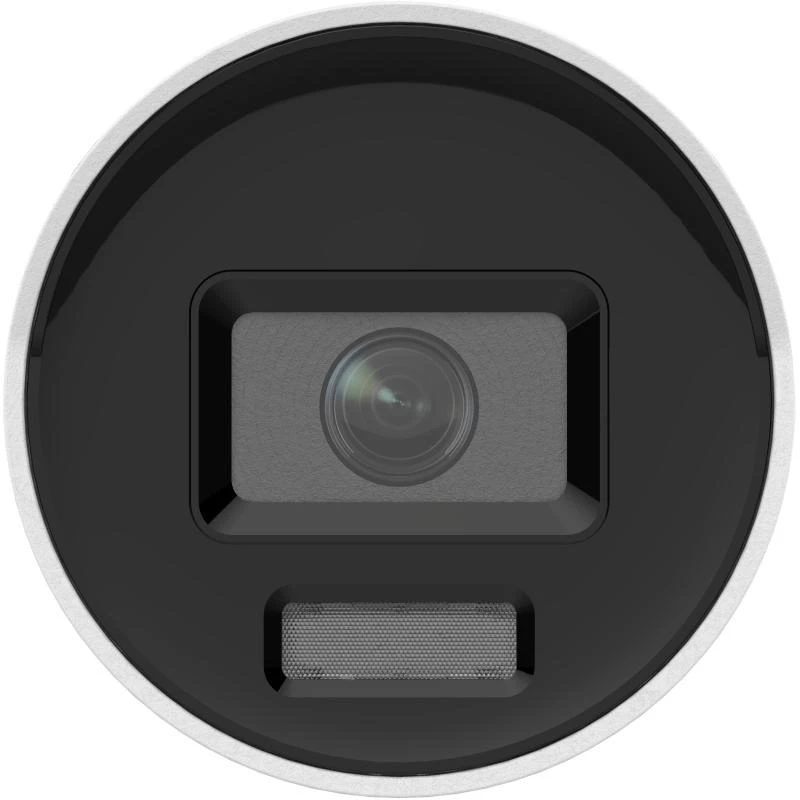

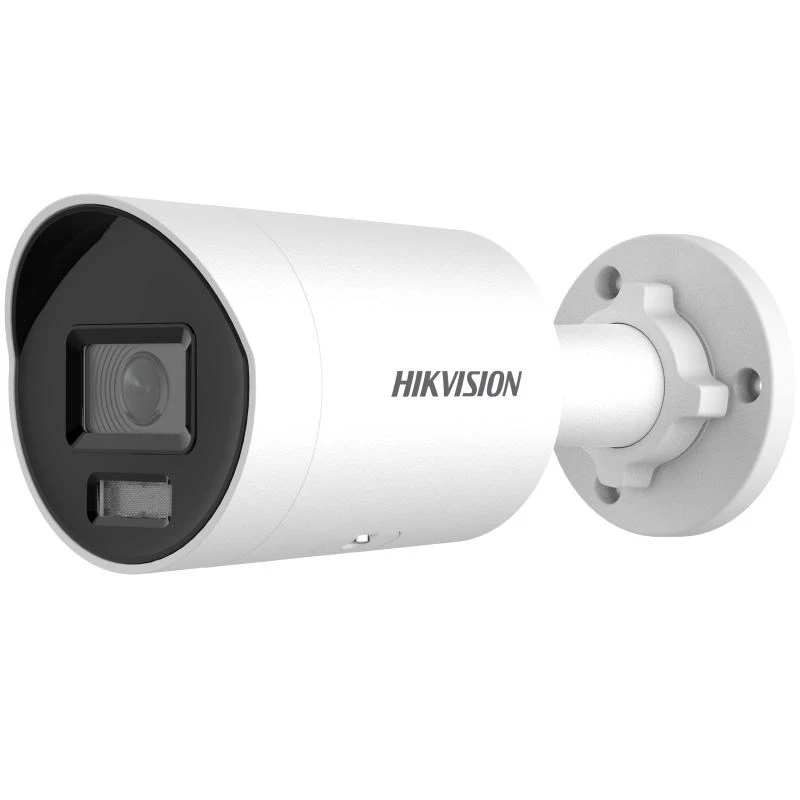

IP security camera Hikvision Pro Series DS-2CD2046G2H-IU 2688x1520

IP security camera Hikvision Pro Series DS-2CD2046G2H-IU 2688x1520
IP security camera Hikvision Pro Series DS-2CD2046G2H-IU 2688x1520
IP security camera Hikvision Pro Series DS-2CD2046G2H-IU 2688x1520
IP security camera Hikvision Pro Series DS-2CD2046G2H-IU 2688x1520
IP security camera Hikvision Pro Series DS-2CD2046G2H-IU 2688x1520
IP security camera Hikvision Pro Series DS-2CD2046G2H-IU 2688x1520
IP security camera Hikvision Pro Series DS-2CD2046G2H-IU 2688x1520
IP security camera Hikvision Pro Series DS-2CD2046G2H-IU 2688x1520
IP security camera Hikvision Pro Series DS-2CD2046G2H-IU 2688x1520
IP security camera Hikvision Pro Series DS-2CD2046G2H-IU 2688x1520
IP security camera Hikvision Pro Series DS-2CD2046G2H-IU 2688x1520
IP security camera Hikvision Pro Series DS-2CD2046G2H-IU 2688x1520
IP security camera Hikvision Pro Series DS-2CD2046G2H-IU 2688x1520
IP security camera Hikvision Pro Series DS-2CD2046G2H-IU 2688x1520
IP security camera Hikvision Pro Series DS-2CD2046G2H-IU 2688x1520
IP security camera Hikvision Pro Series DS-2CD2046G2H-IU 2688x1520
IP security camera Hikvision Pro Series DS-2CD2046G2H-IU 2688x1520
IP security camera Hikvision Pro Series DS-2CD2046G2H-IU 2688x1520
IP security camera Hikvision Pro Series DS-2CD2046G2H-IU 2688x1520
IP security camera Hikvision Pro Series DS-2CD2046G2H-IU 2688x1520
R2,956
The Hikvision Pro Series DS-2CD2046G2H-IU is an outdoor IP security camera with a resolution of 2688 x 1520 pixels. Designed for wired networks, the camera supports ceiling or wall mounting and offers a 360° rotation capability with a 100.2° horizontal field of view. Its CMOS sensor provides detecti... Read More
Stock 2 Code 335797 Brand Hikvision Model DS-2CD2046G2H-IU(2.8mm)(eF) Warranty 2 Years

Shipping & Returns

Estimated delivery Tuesday, October 6
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

The Hikvision Pro Series DS-2CD2046G2H-IU is an outdoor IP security camera with a resolution of 2688 x 1520 pixels. Designed for wired networks, the camera supports ceiling or wall mounting and offers a 360° rotation capability with a 100.2° horizontal field of view. Its CMOS sensor provides detection up to 63 meters, observation up to 25 meters and recognition up to 12 meters, making it suitable for perimeter and site surveillance. The model incorporates Hikvision AcuSense deep-learning algorithms to classify human and vehicle targets and reduce false alarms.

Advantages

The camera combines a high-resolution 2688 x 1520 image sensor with wide-angle coverage and 360° rotation, enabling flexible installation and broad scene capture. AcuSense human/vehicle classification improves alarm accuracy by distinguishing relevant targets from other motion events. Wired Ethernet connectivity ensures stable data transmission for continuous monitoring, and outdoor-rated mounting options allow installation on ceilings or walls in exposed locations.

Suitable for

  • Perimeter surveillance of residential and commercial properties
  • Entry and access control monitoring (driveways, gates)
  • Parking lots and vehicle traffic areas
  • General outdoor site monitoring where human and vehicle detection is required

Key specifications

  • Model: Hikvision Pro Series DS-2CD2046G2H-IU
  • Resolution: 2688 x 1520 pixels
  • Frame rate: 30 fps
  • Sensor type: CMOS
  • Detection/Observation/Recognition range: 63 m / 25 m / 12 m
  • Rotation/Field of view: 360° rotation, 100.2° horizontal viewing angle
  • Connectivity: Wired Ethernet (no Wi‑Fi)
  • Mounting: Ceiling or wall
  • Placement: Outdoor
  • Colors: Black, White
  • Weight: 0.525 kg

How to use

Mount the camera securely on a ceiling or wall using appropriate fittings for the installation surface. Connect the device to a wired Ethernet network and power source according to the manufacturer's instructions. Configure network settings and enable AcuSense human/vehicle classification through the camera's interface or connected recorder to tune alarm thresholds and detection zones. Verify the viewing angle and rotation settings to cover the intended area and perform test recordings to confirm image quality and detection ranges.

Recommendations

For reliable detection, position the camera to minimise obstructions between the sensor and monitored area, avoid direct exposure to strong backlight, and periodically review AcuSense settings to adapt to site conditions. Use stable wired network connections and follow Hikvision guidelines for outdoor cabling and weather protection.
Key Highlights
  • Perimeter surveillance of residential and commercial properties
  • Entry and access control monitoring (driveways, gates)
  • Parking lots and vehicle traffic areas
  • General outdoor site monitoring where human and vehicle detection is required
  • Model: Hikvision Pro Series DS-2CD2046G2H-IU
  • Resolution: 2688 x 1520 pixels
  • Frame rate: 30 fps
  • Sensor type: CMOS
  • Detection/Observation/Recognition range: 63 m / 25 m / 12 m
  • Rotation/Field of view: 360° rotation, 100.2° horizontal viewing angle
  • Connectivity: Wired Ethernet (no Wi‑Fi)
  • Mounting: Ceiling or wall
  • Placement: Outdoor
  • Colors: Black, White
  • Weight: 0.525 kg
Specifications
Active tampering alarm
Yes
Angle of rotation
360 °
Audio formats supported
AAC-LC, G.711 A-law, G.711 μ-law, G.722.1, G.726, MP2L2, MP3, PCM
Audit log
Yes
Automatic Network Replenishment (ANR)
Yes
Back Light Compensation (BLC)
Yes
Behavior analysis
Intrusion detection, Line crossing detection
Bit rate
32 Kbps - 8192 Kbps
Bit rate control
Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Bit rate range
8 - 320
Bluetooth
No
Browser supported
IE 10, IE 11, Chrome 57.0+, Firefox 52.0+
Built-in HDD
No
Built-in microphone
Yes
Camera shutter speed
1/3 - 1/100000
Card reader integrated
Yes
Client interoperability
iVMS-4200, Hik-Connect, Hik-Central
Compatible memory cards
MicroSD (TransFlash), MicroSDHC, MicroSDXC
Compliance certificates
CB, CE, Low Voltage Directive (LVD), RoHS, UL
Connectivity technology
Wired
Day/night mode
Yes
DC output current
0.45 A
DC output voltage
12
Detect distance
63 m
Diameter
74.4 mm
Digest authentication
Yes
Dynamic range
120 dB
Ethernet interface type
Fast Ethernet
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Fixed focal length
2.8 mm
Flash log
Yes
Form factor
Bullet
Frame rate
30 fps
Heartbeat
Yes
Highlight Compensation (HLC)
Yes
Housing material
Metal
HTTPS encryption
Yes
Human and vehicle targets classification
Yes
Identify distance
6 m
Image quality adjustment
Brightness, Contrast, Saturation, Sharpness
Infra-red wavelength
850 nm
Infrared (IR) cut-off filter
Yes
Intelligent Video Surveillance (IVS) system features
Face detection
International Protection (IP) code
IP67
IP address filtering
Yes
Languages support
Multi
LED type
IR
Length
179.2 mm
Lens mount interface
M12
Lens viewing angle, diagonal
119.7
Lens viewing angle, horizontal
100.2
Lens viewing angle, vertical
54.7
Live view
Yes
Maximum aperture number
1
Maximum memory card size
512 GB
Maximum resolution
2688 x 1520
Minimum illumination
0 lx
Mirror
Yes
Mounting type
Ceiling/Wall
Network access storage (NAS)
Yes
Networking standards
IEEE 802.1x, IEEE 802.3af
Night vision
Yes
Night vision distance
40
Noise reduction
Yes
Noise reduction technology
3D noise reduction
Number of cameras
1
Number of languages
33
Number of lenses
1
Number of Privacy masking areas
4
Number of sensors
1
Number of simultaneous live view channels
6 channels
Number of users
32 user(s)
Observe distance
25 m
Operating relative humidity (H-H)
0 - 95
Operating temperature (T-T)
-30 - 60
Optical sensor size
25.4 / 3
Package depth
120 mm
Package height
117 mm
Package weight
750 g
Package width
234 mm
Pan range
0 - 360
Password protection
Yes
Password reset via email
Yes
Pixel counter
Yes
Placement supported
Outdoor
Power consumption (max)
5.5 W
Power consumption (Power over Ethernet (PoE))
7 W
Power source type
DC, PoE
Privacy masking
Yes
Privacy protection
Yes
Product colour
Black, White
Progressive scan
Yes
Protection features
Dust resistant, Water resistant
Quality of Service (QoS) support
Yes
Recognize distance
12 m
Region of Interest (ROI) encoding
Yes
Reset button
Yes
Sample rates
8 - 48
Security algorithms
HTTPS, TLS
Sensor type
CMOS
Signal-to-Noise Ratio (SNR)
52 dB
Smart IR
Yes
Storage relative humidity (H-H)
0 - 95
Storage temperature (T-T)
-30 - 60
Supported graphics resolutions
640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2688 x 1520
Supported network protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
Tilt angle range
0 - 90
Total megapixels
4 MP
Type
IP security camera
User access level
Administrator, Operator, User
Video compression formats
H.264, H.264+, H.265, H.265+, M-JPEG
Video motion detection
Yes
Video streaming
Yes
Web-based management
Yes
Weight
0.525 kg
Wi-Fi
No
Wide Dynamic Range (WDR)
Yes
