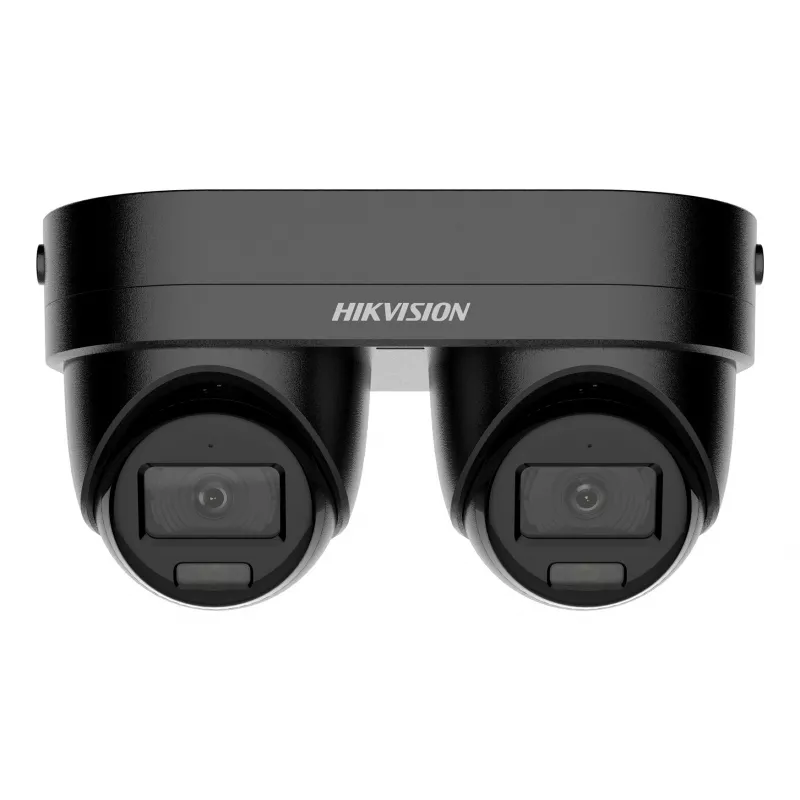

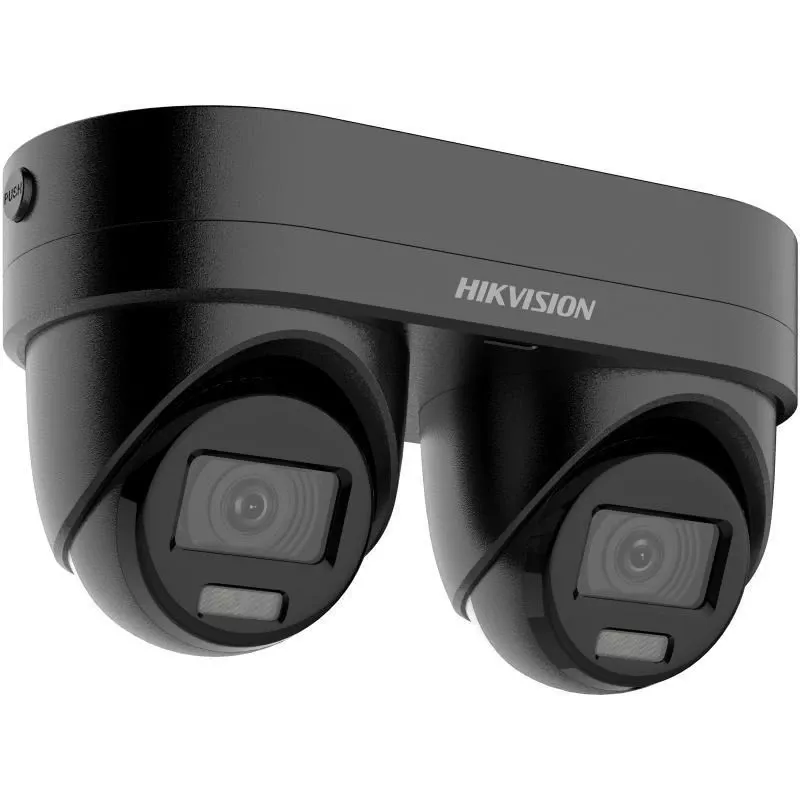

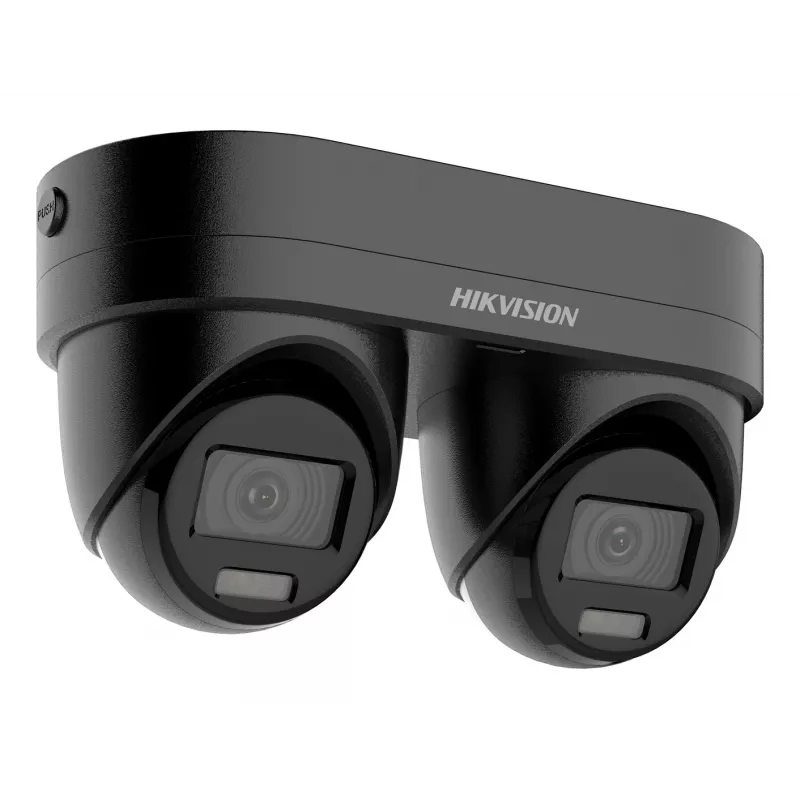

IP security camera Hikvision DS-2CD2343G2D-LIZ2UY/SL(2.8/4)BLACK — Turret, 2688×1520, Outdoor, 2.8/4 mm

Hikvision DS-2CD2343G2D-LIZ2UY/SL(2.8/4)BLACK is a wired IP turret camera designed for outdoor ceiling or wall mounting. It captures video at 2688×1520 pixels using a 1/3" CMOS sensor and records up to 30 fps. The camera features an interchangeable 2.8/4 mm vari-focal lens (point-to-point zoom), 0–360° pan and 0–75° tilt range for flexible coverage, and an outdoor-rated housing with water and dust resistance. Additional on-board capabilities include Smart Hybrid Light combining IR and white lighting, active strobe and audio alarm, Arrayed Dual-Mic audio, and person/vehicle classification based on deep learning.

Advantages

The camera provides high-resolution 4 MP video suitable for detailed observation while maintaining smooth motion at 30 fps. The integrated 2.8/4 mm vari-focal lens allows field-of-view adjustment without changing hardware, and the turret form factor supports simple ceiling or wall installation. Smart Hybrid Light extends usable night-time imaging by combining infrared and white light with three supplemental lighting modes. Built-in deterrents—an active strobe light and audio alarm—help respond to intrusions immediately. The IP67-rated, anti-corrosion (NEMA 4X) housing increases reliability in outdoor and harsh environments, and wired Ethernet connectivity ensures stable network performance.

Suitable for

• Perimeter surveillance of commercial and industrial sites
• Monitoring entrances, parking areas and access lanes
• Outdoor coverage for residential complexes and gated communities
• Areas requiring night-time identification using hybrid IR/white light

Key specifications

• Image sensor: 1/3" CMOS
• Maximum resolution: 2688 × 1520 pixels (4 MP)
• Frame rate: up to 30 fps
• Lens: interchangeable 2.8 mm / 4 mm vari-focal (point-to-point)
• Optical coverage: pan 0–360°, tilt 0–75°
• Night vision: Smart Hybrid Light with IR and white light, effective up to 30 m
• Audio: Arrayed Dual-Mic for two-channel crystal-clear audio
• Analytics: person and vehicle classification based on deep learning
• Network: wired Ethernet LAN
• Ingress protection: IP67; anti-corrosion NEMA 4X design
• Mounting: ceiling or wall
• Colour: black
• Weight: approximately 1.2 kg

How to use

Install the camera on a stable ceiling or wall surface using the supplied mounting hardware, ensuring the housing is oriented to achieve the desired pan and tilt angles. Connect the camera to a PoE-capable switch or use separate power and Ethernet cabling according to your network design. Configure basic network settings and enable motion detection and analytics in the Hikvision management interface or compatible NVR. Adjust the vari-focal lens to set the required field of view, and configure Smart Hybrid Light and deterrent alarms to match site lighting and operational policies.

Recommendations

Position the camera at a height and angle that balances coverage and identification distance; for 2.8 mm lens settings expect detection, observation and recognition ranges up to approximately 66.6 m, 26.4 m and 13.3 m respectively. Use wired Ethernet for reliable continuous operation, enable person/vehicle classification to reduce false alerts, and test strobe and audio alarm settings during off-peak hours to confirm proper behavior without disrupting occupants.
