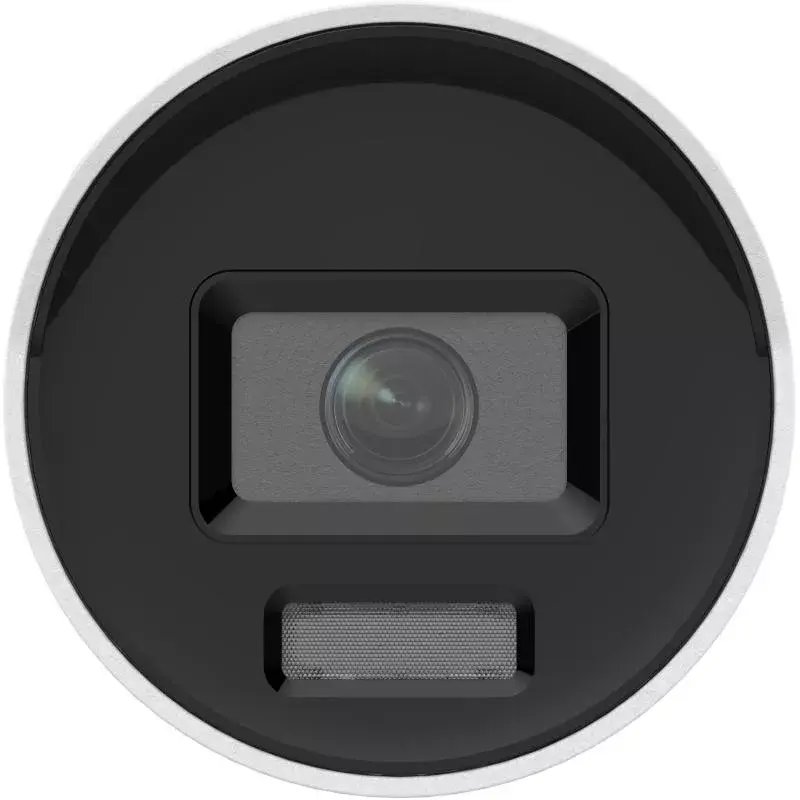

IP security camera Hikvision DS-2CD2087G2H-LIU(2.8mm)(eF)(O-STD) Bullet

Modelis: Hikvision Bullet DS-2CD2087G2H-LIUeF, 2.8mm, baltos spalvos MP (MegaPixel): 8 MP Objektyvas: 2.8 mm, horizontalus FOV: 105° Technologija: AcuSense, hybrid Light, ColorVu Integruotas mikrofonas: Taip Naktinis pašvietimas: 40 m. IR; 40 m. LED Vieta microSD talpai: Taip, 512GB Darbo sąlygos: -30 °C iki 60 °C Saugos lygis: IP67 Vaizdo suspaudimas: H.265+ WiFi: Ne Laikiklis/bazė (papildomai): DS-1280ZJ-XS Lauko/vidaus: Lauko Aprašymas: Kamera • Sensorius: 1/1.8 Progressive Scan CMOS • Maks. rezoliucija: 3840 × 2160 • Min. apšvietimas: Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light • Užrakto greitis: 1/3 s to 1/100,000 s • Day & Night: IR cut filter • Kampo keitimas: Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360° Lęšis • Lęšio tipas: Fixed focal lens, 2.8mm • Focal Length & FOV: 2.8 mm, horizontal FOV 105.1°, vertical FOV 54.8°, diagonal FOV 128.2° • Lęšio montavimas: M16 • Rainelės tipas: Fixed • Diafragama: F1.0 • Ryškumo gylis: 2.8 mm: 3.3 m to infinite DORI: 2.8 mm: D: 89 m, O: 35 m, R: 17 m, I: 8 m Apšvietimas • Papildomo apšviešimo tipas: IR,White Light • Papildomo apšvietimo diapazonas: Up to 40 m • Išmanus papildomas apšvietimas: Yes • IR bangos ilgis: 850 nm Vaizdas • Pagrindinis srautas: 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (3840 × 2160); 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) • Antrinis srautas: 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) • Trečias srautas: 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings. • Vaizdo suspaudimas: Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, *Third stream is supported under certain settings. • Vaizdo bitų greitis: 32 Kbps to 16 Mbps • H.264 tipas: Baseline Profile,Main Profile,High Profile • H.265 tipas: Main Profile • Bitų greičio kontrolė: CBR,VBR • Scalable Video Coding (SVC): H.264 and H.265 encoding • Region of Interest (ROI): 1 fixed region for main stream and sub-stream Garsas • Pašalinių garsų šalinimas: -U: Yes • Garso atrankos dažnis: -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz • Garso suspaudimas: -U: G.711/ G.722.1/ G.726/ MP2L2/ PCM/MP3/ AAC-LC • Garso bitų greitis: -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3) Internetas • Protokolai: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP • Tiesioginis vaizdo žiūrėjimas: Up to 6 channels • API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP • User/Host: Up to 32 users; 3 user levels: administrator, operator, and user • Saugumas: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address) • Vidinė atmintis: NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR) • Klientas: iVMS-4200,Hik-Connect,Hik-Central • Naršyklė: Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ Nuotrauka • Nuotraukos parametrų keitiklis: yes • Nuotraukos nustatymai: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser • Diena/Naktis režimas: Day, Night, Auto, Schedule • Nuotraukų pagražinimas: BLC, HLC, 3D DNR • Wide Dynamic Range (WDR): 130 dB • SNR: > /= 52 dB • Privatumo kaukė: 4 programmable polygon privacy masks Sąsaja • Interneto sąsaja: 1 RJ45 10 M/100 M self-adaptive Ethernet port • Vidinė atmintis: Built-in memory card slot, support microSD/ microSDHC/ microSDXC card, up to 512 GB • Įmontuotas mikrofonas: -U: Yes • Perkrovimo mygtukas: Yes Funkcijos • Pagrindinės funkcijos: Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception • Sąsaja: Upload to FTP/NAS/ memory card, notify surveillance center, trigger recording, trigger capture, send email • Išmaniosios funkcijos: Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)); Scene change detection Išmaniosios funkcijos • Veido atpažinimas: Yes • Perimeter Protection: Line crossing, intrusion, region entrance, region exiting; Support alarm triggering by specified target types (human and vehicle) Pagrindinis • Sistemos parametrai: 12 VDC ± 25%, 0.58 A, max. 7 W, Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 8.5 W • Medžiaga: Front cover: Metal, body: Metal, bracket: Metal • Dydis: Ø74.4 mm × 179.2 mm (Ø2.9 × 7.1) • Pakuotės dydis: 234 mm × 120 mm × 117 mm (9.2 × 4.7 × 4.6) • Svoris: Approx. 525 g (1.2 lb.) • Svoris su įpakavimu: Approx. 750 g (1.7 lb.) • Sandėliavimo sąlygos: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) • Darbo sąlygos: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) • Kalba: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian • Pagrindinės funkcijos: Heartbeat, mirror, password reset via email, pixel counter, anti-banding Patvirtinimai • EMC: CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015, RCM: AS/NZS CISPR 32: 2015 • Saugumas: UL: UL 62368-1; CB: IEC 62368-1: 2014+A11; CE-LVD: EN 62368-1: 2014/A11: 2017; BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005 • Aplinkosauga: CE-RoHS: 2011/65/EU • Apsauga: IP67: IEC 60529-2013

How to use

Mount the camera on a suitable outdoor wall surface using the bullet camera bracket and fasteners. Connect the camera to a network switch or PoE-enabled port via Ethernet cable for power and data. Configure the camera through Hikvision management software or a compatible NVR to set resolution, frame rate, motion detection and storage options. Adjust the 2.8 mm lens orientation and use the rotation feature to achieve the desired coverage and detection range.

Recommendations

Install the camera at an appropriate height and angle to avoid direct glare from lights and to maximize the effective detection distance. Use PoE for simplified cabling and ensure network and recording devices are secured and regularly updated for reliable operation.
