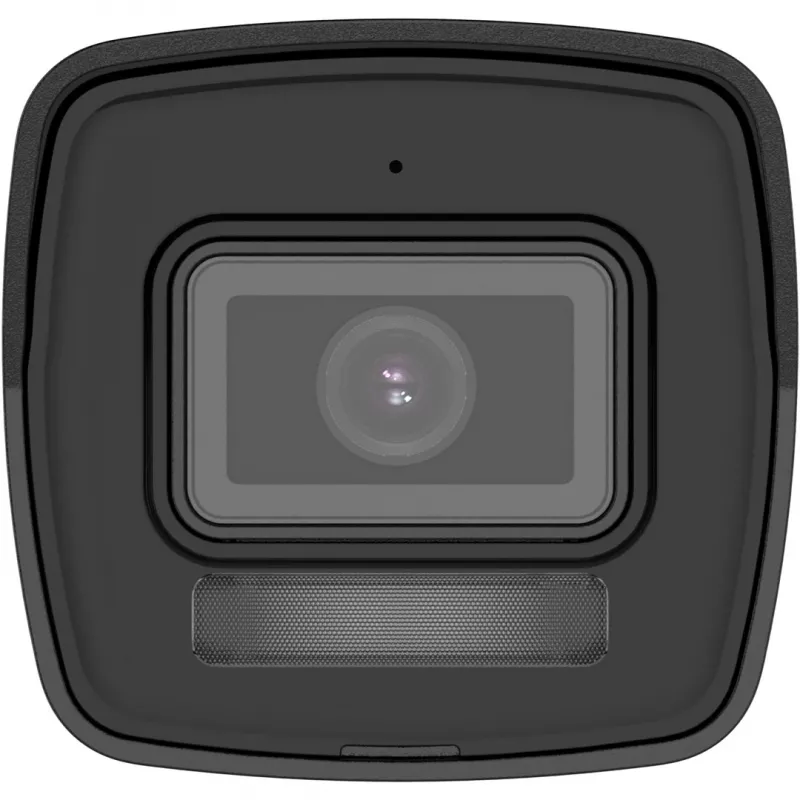

IP security camera Hikvision DS-2CD1061G2-LIU 6 MP 2.8 mm bullet, IP67, PoE, WDR, IR 30 m

Wired IP bullet camera Hikvision DS-2CD1061G2-LIU with a 6 MP 1/2.4" CMOS sensor and a fixed 2.8 mm lens. The camera features a metal housing with IP67 protection for indoor and outdoor installation, supports Power over Ethernet (PoE) and DC power, provides Wide Dynamic Range (120 dB) and H.265 video compression, and includes a built-in microphone and light. Night vision reaches up to 30 m and the maximum image resolution is 3200 × 1800 pixels. The device supports motion detection, privacy masking, ROI encoding and web-based management.

Advantages

Compact bullet design with metal housing and IP67 waterproof rating suitable for outdoor use. Supports PoE for simplified installation and offers WDR (120 dB) to handle scenes with strong contrast. High-resolution 6 MP sensor with H.265 compression balances image quality and bandwidth usage. Built-in microphone and integrated light expand monitoring options; night vision up to 30 m enables 24/7 surveillance.

Suitable for

• Outdoor perimeter and entry-point monitoring
• Indoor room and corridor surveillance
• Small business and retail security
• Residential property monitoring

Key specifications

• Camera type: Wired IP bullet camera
• Image sensor: 1/2.4" CMOS, progressive scan, 6 MP total
• Maximum resolution: 3200 × 1800 pixels
• Lens: fixed focal length 2.8 mm, fixed focus, aperture f/1.6
• Field of view: horizontal 105°, diagonal 127°, vertical 55°
• Night vision: IR, 850 nm wavelength, effective up to 30 m
• Dynamic range: 120 dB (WDR)
• Video compression: H.265; bit rate 32 Kbps – 16 Mbps; CBR/VBR
• Audio: built-in microphone, G.726 codec, 16–160 Kbit/s
• Power: DC and PoE support; max power consumption ~6.5 W (PoE)
• Environmental: operating temperature -30 to 60 °C; operating humidity 0–95%
• Protection: IP67, waterproof
• Connectivity: Fast Ethernet (RJ-45), supports TCP/IP, RTSP, HTTP, DHCP, IPv6 and common network protocols
• Management & security: web-based management, audit log, password protection, motion detection, privacy masking (4 areas), digital watermark
• Mechanical: mounting: ceiling/wall; dimensions approx. 170.8 × 66 × 69.1 mm; weight 285 g

How to use

Mount the camera on a wall or ceiling using appropriate fittings and route the Ethernet cable to a PoE switch or provide 12 V DC power. Connect the camera to the network via the RJ-45 port and configure network settings through the web interface or compatible client software (iVMS-4200, Hik-Connect). Adjust viewing angle and focus as needed, set motion detection, privacy masking areas and video encoding parameters. Verify audio and IR illumination settings and confirm remote live view permissions for required user levels.

Recommendations

For reliable outdoor operation, use a PoE switch with sufficient power budget or a stable 12 V DC power source; ensure the mounting location provides an unobstructed view and that privacy masking is configured where necessary. Regularly check firmware updates and restrict user access levels to maintain security.
