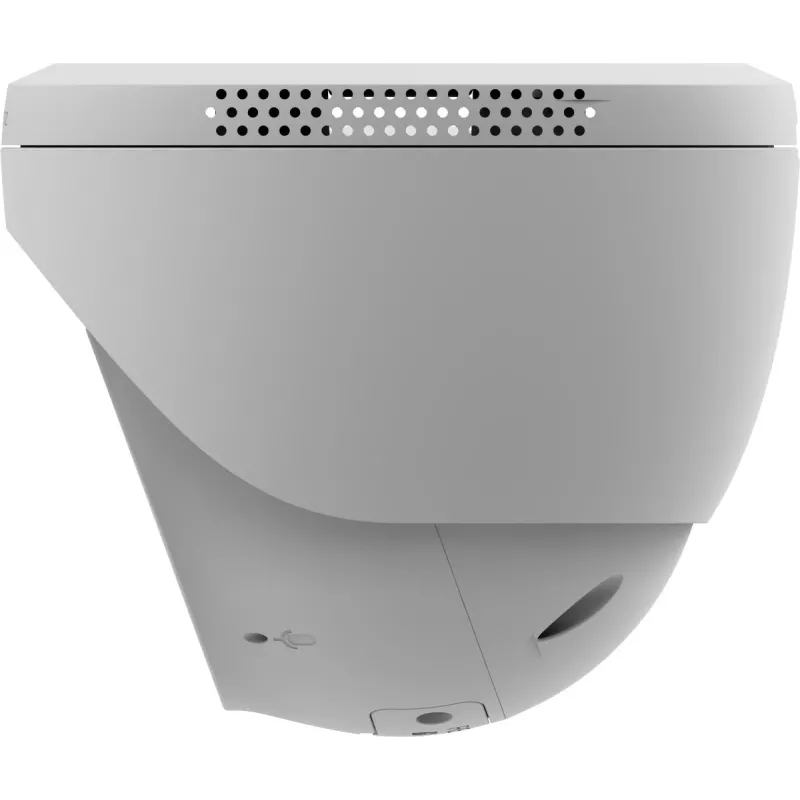

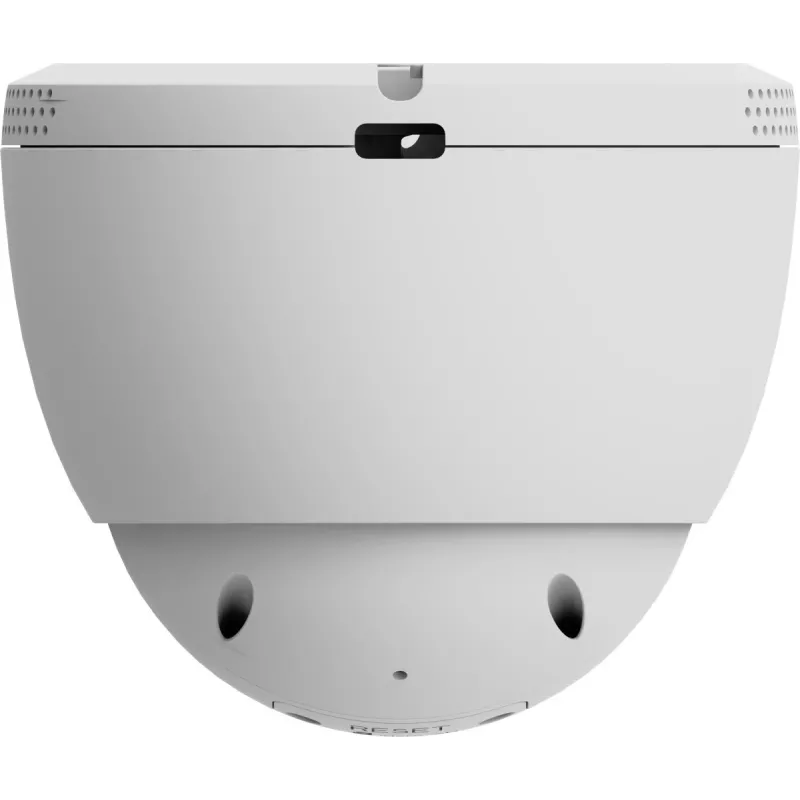

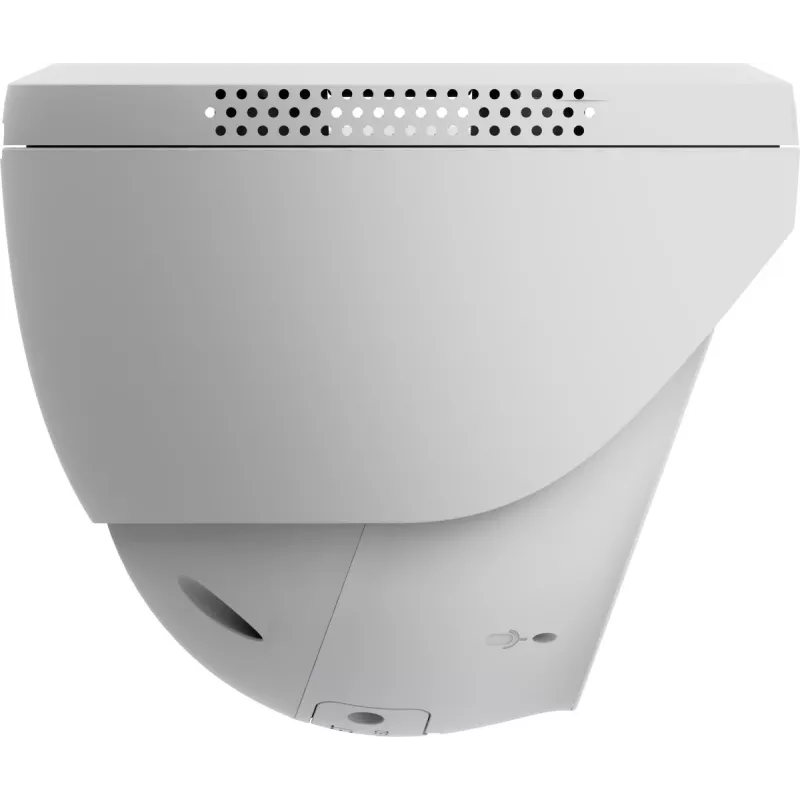

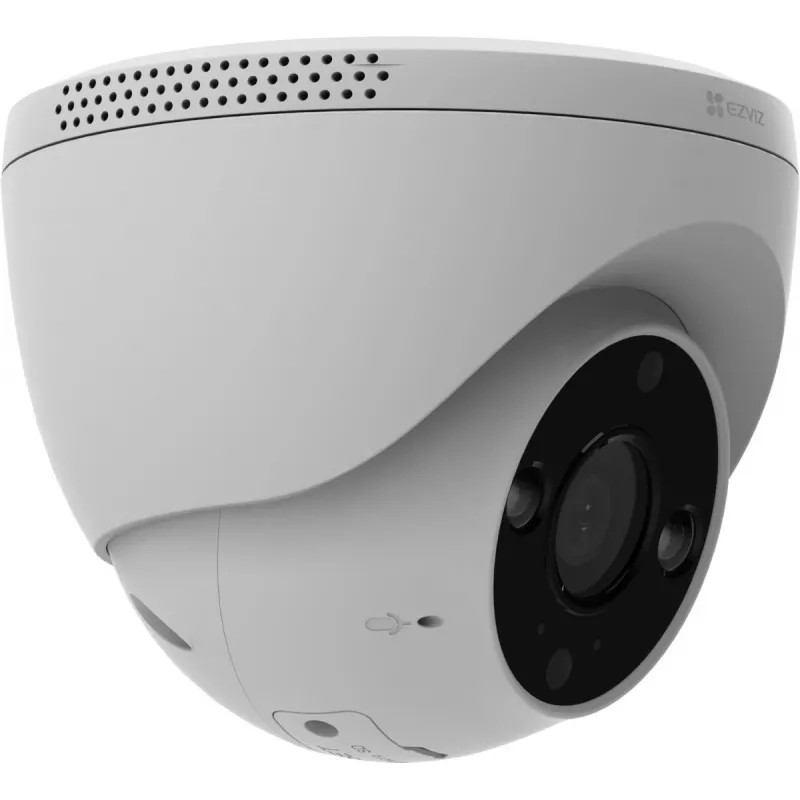

IP security camera EZVIZ H4 Dome 2304 x 1296 pixels

The EZVIZ H4 Dome is an IP security camera with 2K resolution (2304 x 1296) designed for both indoor and outdoor surveillance. Its dome form factor and compact white design allow discreet ceiling or wall mounting, while wired and wireless connectivity options make installation flexible. With a wide 106° horizontal (122° diagonal) field of view and a 2.8 mm fixed focal length, the camera captures detailed images for homes and small businesses. The device integrates with the EZVIZ mobile app for live view, settings and recorded footage management.

Advantages

The H4 Dome delivers clear 2K video in varied lighting conditions, supports smart on-device AI detection for people and vehicles to reduce false alerts, and offers selectable night modes including color night vision and infrared. Dual built-in microphones extend audio pickup up to approximately 15 meters and enable two-way communication or pre-recorded voice messages. Data privacy features include configurable no-filming zones in the EZVIZ app and end-to-end encryption for stored recordings.

Suitable for

• Home entryways and yards
• Small business interiors and storefronts
• Garage and driveway monitoring
• Shared indoor spaces such as corridors and lobbies

Key specifications

• Resolution: 2304 x 1296 (2K)
• Sensor type: CMOS
• Focal length: 2.8 mm (fixed)
• Field of view: 106° horizontal / 122° diagonal
• Frame rate: 25 fps
• Connectivity: Wired (Ethernet) & Wireless (Wi‑Fi)
• Placement: Indoor and outdoor
• Mounting: Ceiling / Wall
• Audio: Dual microphones, two‑way audio, up to ~15 m pickup
• Color: White
• Weight: 0.229 kg

How to use

Mount the H4 Dome on a ceiling or wall using the included hardware and connect it to power. For network access choose either Ethernet or Wi‑Fi during initial setup. Install the EZVIZ mobile app, follow the on‑screen pairing instructions to add the camera using its serial number, and complete network configuration. Use the app to view live video, review recorded clips, adjust detection sensitivity, enable AI person/vehicle detection, and set night vision preferences.

Recommendations

Place the camera at a height and angle that maximise the covered area while avoiding direct exposure to strong light sources to reduce glare. Use the EZVIZ app to define privacy zones where recording is not required and to enable smart night vision for automatic switching between color and infrared modes based on motion detection.
