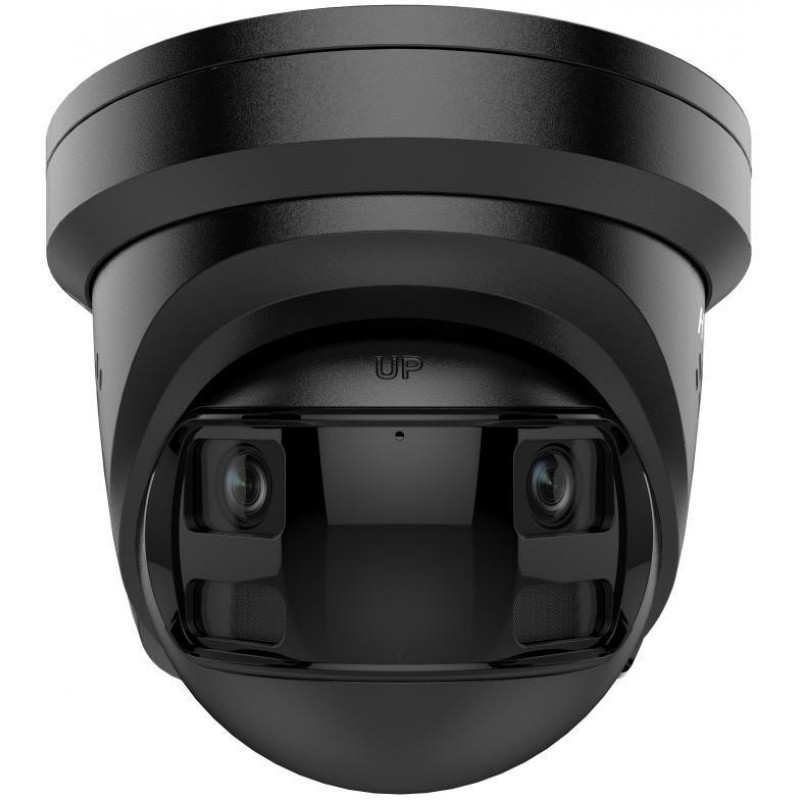

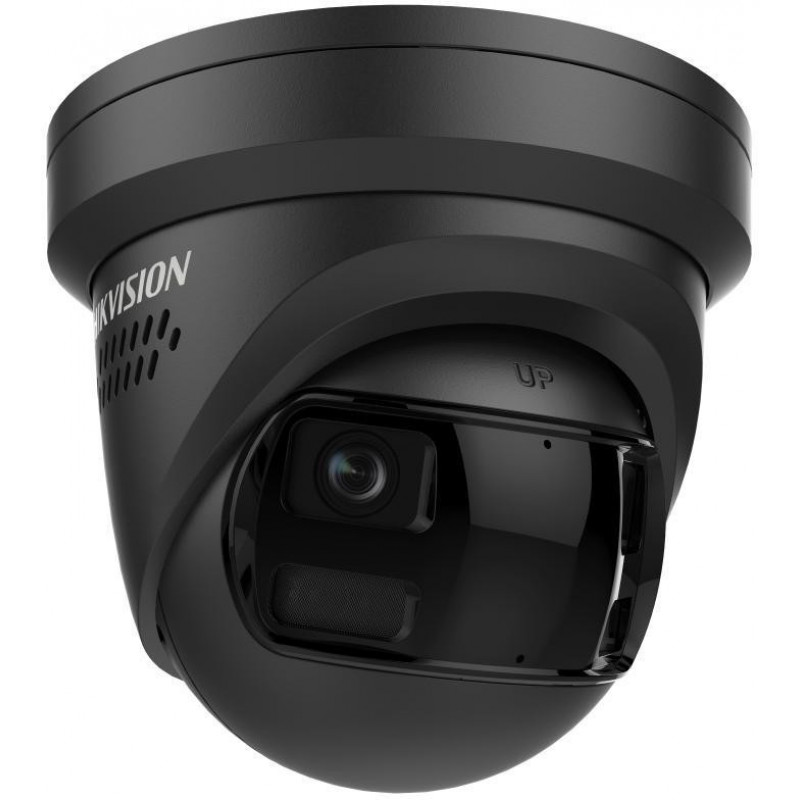

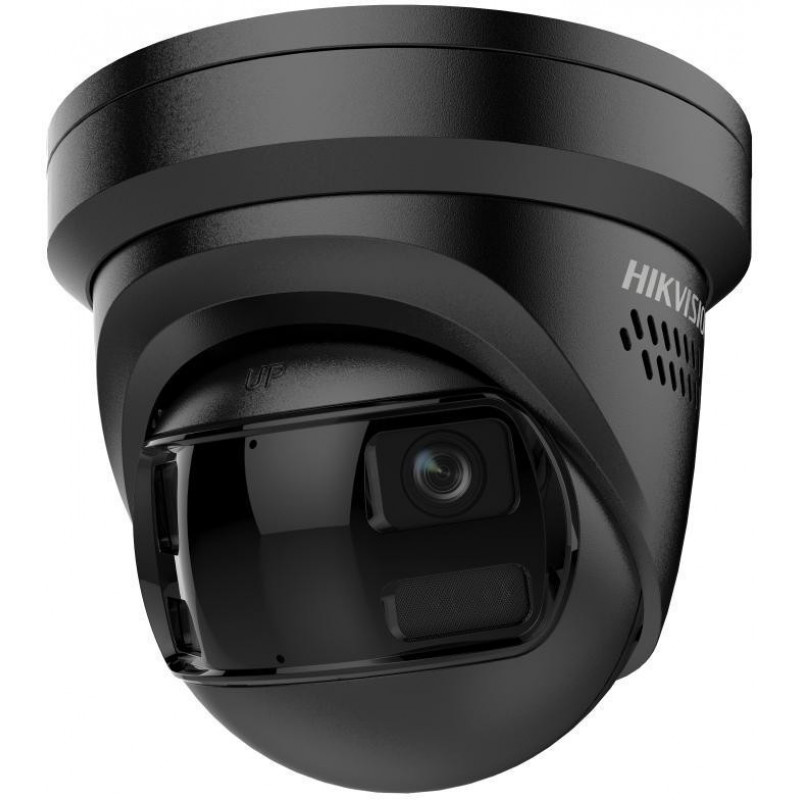

Hikvision DS-2CD2383G2P-LISU/SL 8 MP Panoramic Dome IP Camera, 180°, Black

The Hikvision DS-2CD2383G2P-Lisu/SL(180°)(O-Std)/Black is an 8 MP panoramic dome IP camera with a 180° horizontal field of view, designed for wide-area surveillance. It features AcuSense technology for accurate person and vehicle detection, and Smart Hybrid Light for advanced illumination. With a durable IP67-rated metal housing, it is suitable for outdoor use.

Key features

• 8 MP panoramic dome IP camera with 180° horizontal field of view
• AcuSense technology for person and vehicle detection
• Smart Hybrid Light with IR and white light, up to 30 m range
• H.265+ video compression
• Built-in two-way audio for real-time communication
• MicroSD card slot supporting up to 512 GB
• Active strobe light and audio alarm for intruder deterrence
• IP67-rated weather-resistant metal housing

Specifications

• Brand: Hikvision
• MPN: DS-2CD2383G2P-LISU/SL(180°)(O-STD)/BLACK
• Product colour: Black
• Product type: IP Security Camera
• Maximum resolution: 8 MP
• Form factor: Dome
• Connectivity technology: Wired
• Power source type: DC & PoE
• International Protection (IP) code: IP67
• Image sensor: 1/2.4" Progressive Scan CMOS
• Maximum resolution: 4256 × 1888
• Minimum illumination: Colour: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with light
• Shutter time: 1 s to 1/100,000 s
• Day/Night: IR cut filter
• Angle adjustment: Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
• Lens type: Fixed focal lens, 2 mm
• Focal length and field of view: 2 mm, horizontal FOV 180°, vertical FOV 77°
• Lens mount: M12
• Aperture type: Fixed
• Aperture: F1.6
• DORI: 2 mm, D: 50 m, O: 20 m, R: 10 m, I: 5 m
• Supplement light type: IR, white light
• Supplement light range: Up to 30 m
• Smart Supplement Light: Yes
• IR wavelength: 850 nm
• Main stream: 50 Hz: 20 fps (4256 × 1888, 4096 × 1860); 60 Hz: 20 fps (4256 × 1888, 4096 × 1860)
• Sub-stream: 50 Hz: 20 fps (1200 × 536, 960 × 432); 60 Hz: 20 fps (1200 × 536, 960 × 432)
• Video compression: Main stream: H.265+/H.265/H.264+/H.264; Sub-stream: H.265/H.264/MJPEG
• Video bitrate: 32 Kbps to 16 Mbps
• H.264 type: Baseline profile, main profile, high profile
• H.265 type: Main profile
• Bitrate control: CBR, VBR
• ROI: 1 fixed region for main stream
• SVC: H.264 and H.265 encoding
• Audio type: Mono
• Sampling rate: 8 kHz/16 kHz
• Noise filtering: Yes
• Audio compression: G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
• Audio bitrate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
• Security: Password protection, complex password, watermark, basic and digest authentication for HTTP, WSSE and digest for ONVIF, audit log, host authentication (MAC)
• Live view: Up to 6 channels
• API: ONVIF (Profile S, T, G), ISAPI, SDK
• Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv4, IPv6, UDP, QoS, FTP, SMTP, HTTPS, DDNS
• Users: Up to 32 users
• User levels: Administrator, operator, user
• Clients: VMS-4200, Hik-Connect
• Browser: Required plug-in: IE 11, local: Chrome 80+, Firefox 80+, Edge 89+
• WDR: 120 dB
• SNR: ≥ 52 dB
• Day/Night mode: Day, night, auto, schedule
• Image enhancement: BLC, HLC, 3D DNR
• Image settings: Rotate, saturation, brightness, contrast, sharpness, gain, white balance
• Privacy mask: 4 programmable polygon masks
• Ethernet interface: 1 × RJ45 10/100 Mb/s
• Storage: microSD/microSDHC/microSDXC slot up to 512 GB
• Microphone: Yes, 1 built-in
• Speaker: Yes, 1 built-in, max. 2 W, 97 dB (10 cm)
• Audio I/O: 1 line input, 1 line output
• Alarm: 1 input, 1 output (max. 12 VDC, 30 mA)
• Reset: Yes
• Basic events: Motion detection (human/vehicle), video tampering, exception
• Smart events: Line crossing, intrusion (human/vehicle)
• Linkage: FTP/memory card, notification center, email, recording, snapshot, audio alarm, strobe light
• Power: 12 VDC ±25%, 0.83 A, max. 10 W, PoE IEEE 802.3af, class 3, max. 11.5 W
• Material: Base: metal, housing: metal

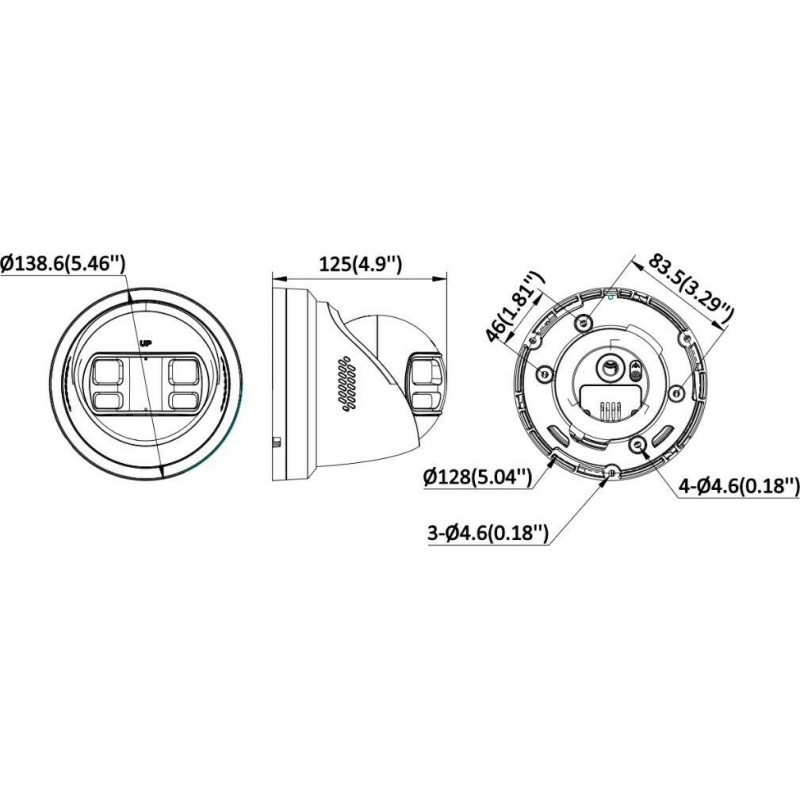

• Dimensions: Ø138.6 mm × 125 mm
• Package dimensions: 170 mm × 170 mm × 160 mm
• Weight: Approx. 808 g
