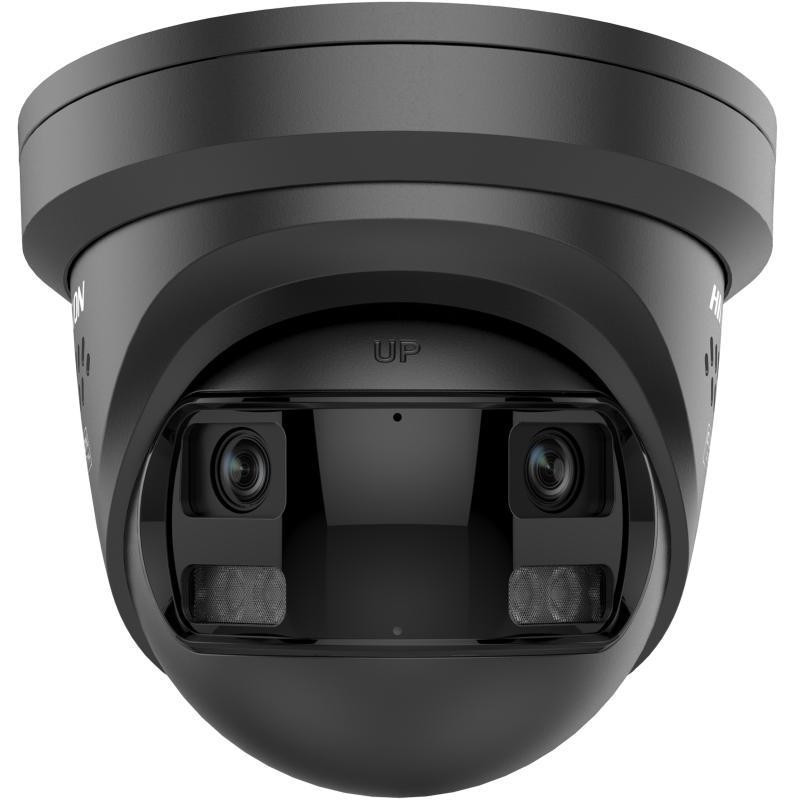

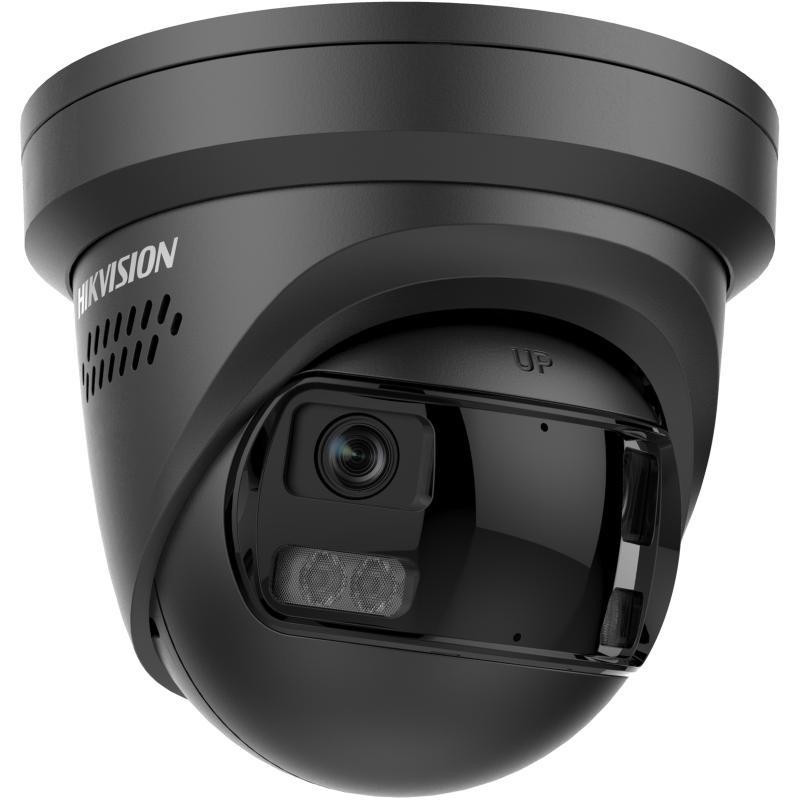

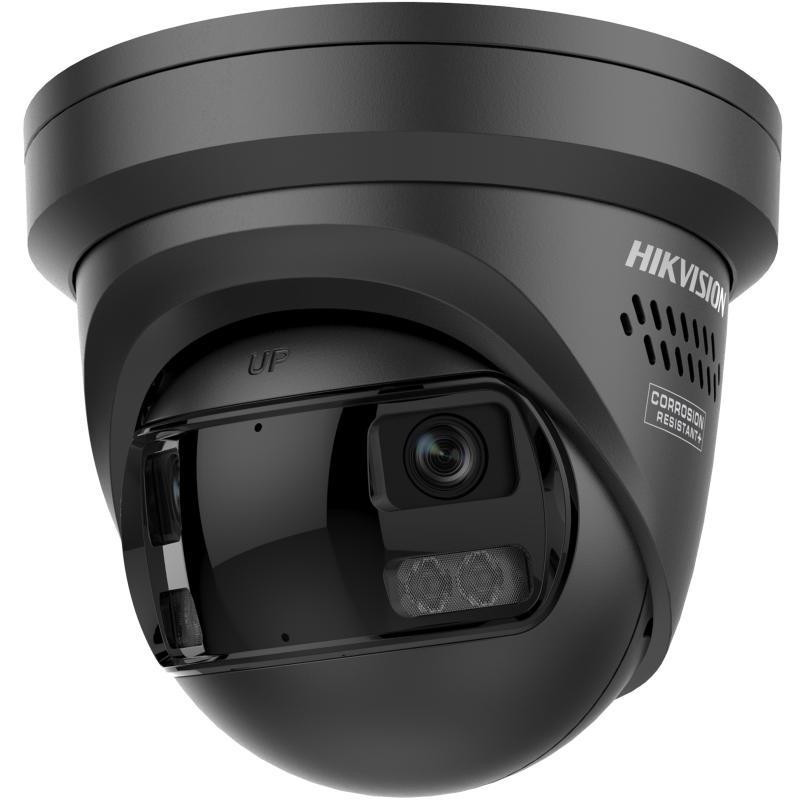

Hikvision DS-2CD2343G2P-LISU/SL 4MP 180° Panoramic Dome IP Camera, Black

The Hikvision DS-2CD2343G2P-LISU/SL(180°)(O-STD)/BLACK is a 4 MP panoramic dome IP camera with a 180° horizontal field of view, designed for wide-area surveillance. It features AcuSense technology for accurate person and vehicle detection, and Smart Hybrid Light for advanced illumination. Built for outdoor use, it offers IP67 protection and supports two-way audio for real-time communication.

Key features

• 4 MP AcuSense panoramic dome IP camera
• 180° horizontal field of view
• Person and vehicle detection
• Smart Hybrid Light with up to 30 m range
• H.265+ video compression
• microSD card slot supporting up to 512 GB
• Built-in two-way audio
• IP67 weather-resistant
• Active strobe light and audio alarm

Specifications

• Brand: Hikvision
• MPN: DS-2CD2343G2P-LISU/SL(180°)(O-STD)/BLACK
• Product colour: Black
• Product type: IP Security Camera
• Maximum resolution: 4 MP
• Form factor: Dome
• Connectivity technology: Wired
• Power source type: DC & PoE
• International Protection (IP) code: IP67
• Image sensor: 1/2.5" Progressive Scan CMOS
• Max. resolution: 3008 × 1328
• Min. illumination: Colour: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with light
• Shutter time: 1 s to 1/100,000 s
• Day & night: IR cut filter
• Angle adjustment: Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
• Lens type: Fixed focal lens, 2.8 mm
• Focal length & field of view: 2.8 mm, horizontal FOV: 180°, vertical FOV: 77°
• Lens mount: M12
• Aperture type: Fixed
• Aperture: F1.6
• DORI: 2.8 mm, D: 42 m, O: 16 m, R: 8 m, I: 4 m
• Supplement light type: IR, white light
• Supplement light range: Up to 30 m
• Smart Supplement Light: Yes
• IR wavelength: 850 nm
• Main stream: 50 Hz: 20 fps (3008 × 1328), 60 Hz: 20 fps (3008 × 1328)
• Sub-stream: 50 Hz: 20 fps (1200 × 536, 960 × 432), 60 Hz: 20 fps (1200 × 536, 960 × 432)
• Video compression: Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
• Bitrate: 32 Kb/s to 16 Mb/s
• H.264 type: Baseline profile, main profile, high profile
• H.265 type: Main profile
• Bitrate control: CBR, VBR
• SVC: H.264 and H.265 encoding
• ROI: 1 fixed region for main stream
• Audio type: Mono
• Audio compression: G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
• Audio bitrate: 64 Kb/s (G.711)/16 Kb/s (G.722.1)/16 Kb/s (G.726)/32–160 Kb/s (MP2L2)/16–64 Kb/s (AAC-LC)
• Audio sampling: 8 kHz/16 kHz
• Audio noise reduction: Yes
• Network protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPv4, IPv6, IGMP, UDP, QoS, FTP, SMTP
• Live view: Up to 6 channels
• API: ONVIF (Profile S, T, G), ISAPI, SDK
• Users: Up to 32 users, 3 levels: administrator, operator, user
• Security: Password protection, complex password, watermark, HTTP basic and digest authentication, WSSE, audit log, host authentication (MAC)
• Clients: VMS-4200, Hik-Connect
• Browser: IE11 (plugin), Chrome 80+, Firefox 80+, Edge 89+
• Image settings: Rotate, saturation, brightness, contrast, sharpness, gain, white balance
• Day/night mode: Day, night, auto, schedule
• WDR: 120 dB
• SNR: ≥ 52 dB
• Image enhancement: BLC, HLC, 3D DNR
• Privacy mask: 4 polygonal masks
• Ethernet: 1 × RJ45 10/100 Mb/s
• Storage: microSD/microSDHC/microSDXC up to 512 GB
• Microphone: Yes, built-in
• Speaker: Yes, 2 W, 97 dB
• Audio interface: 1 line input, 1 line output
• Alarm interface: 1 input, 1 output (max. 12 VDC, 30 mA)
• Reset: Yes
• Basic events: Motion detection (human/vehicle), tampering, exception
• Smart events: Line crossing, intrusion
• Event linkage: FTP/card, email, recording, snapshot, audio alarm, strobe light
• Power: 12 VDC ±25%, PoE 802.3af
• Power consumption: Max. 10–11.5 W
• Material: Metal

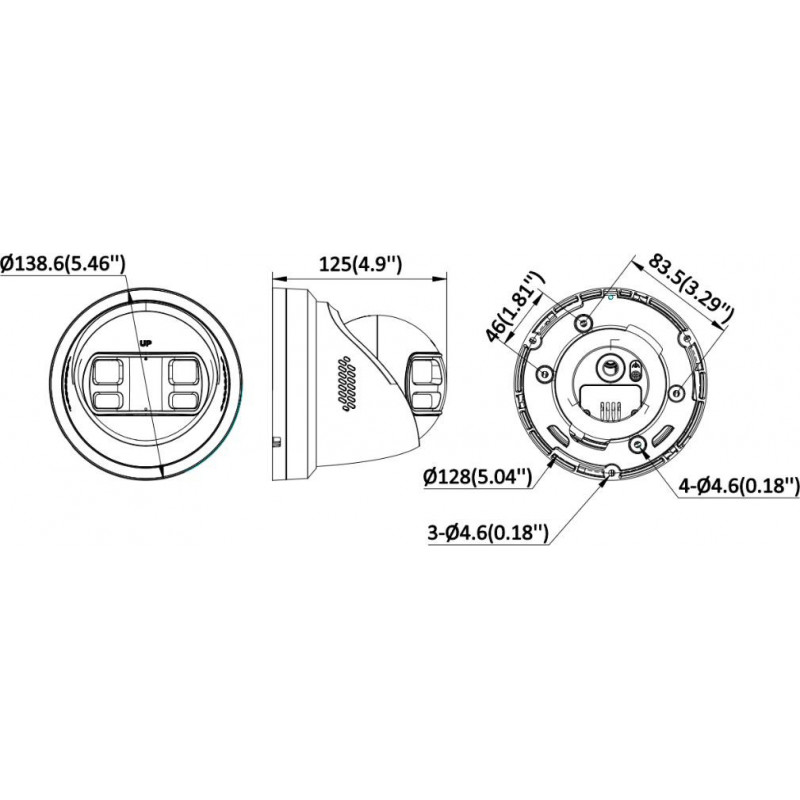

• Dimensions: Ø138.6 mm × 125 mm
• Weight: Approx. 808 g
