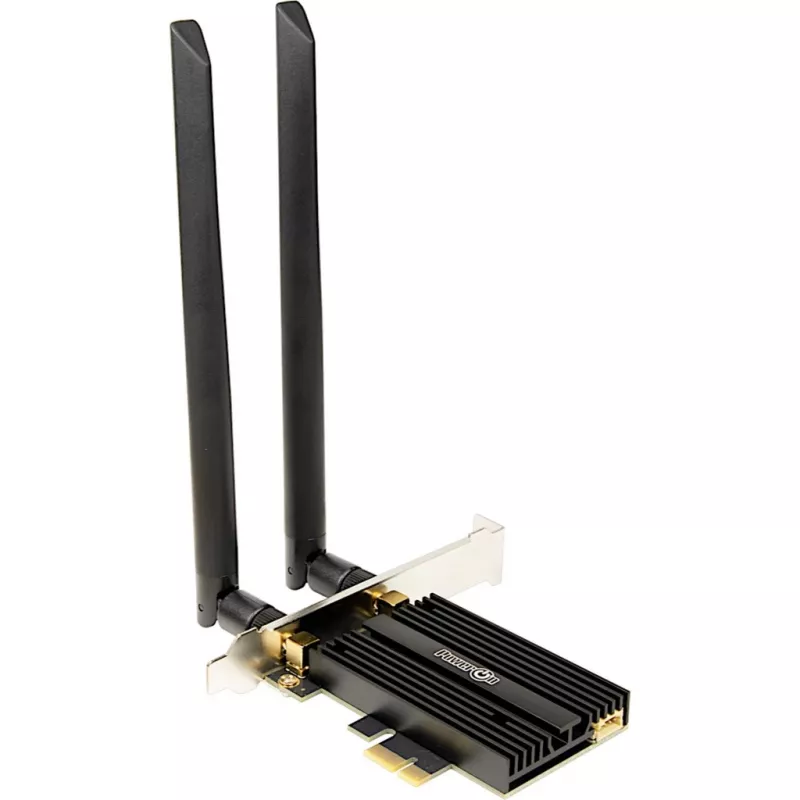

Internal WLAN Bluetooth Card Inter-Tech DMG-36 5400 Mbit/s Wi-Fi 6

The Inter-Tech DMG-36 is an internal PCIe WLAN and Bluetooth adapter based on the Intel® AX210 chipset. It provides tri-band Wi‑Fi 6E connectivity (2.4 GHz, 5 GHz and 6 GHz) with combined speeds up to 5400 Mbps and integrates Bluetooth 5.2. The card includes two external 6 dBi antennas and installs in a desktop PC via a PCI Express slot to enable high-speed wireless network access and Bluetooth device pairing.

Advantages

The DMG-36 supports the latest Wi‑Fi 6E standard and a dedicated 6 GHz band for reduced interference and higher throughput in compatible networks. With Bluetooth 5.2 included, the adapter allows simultaneous Wi‑Fi and Bluetooth operation. The Intel® AX210 chipset and external 6 dBi antennas improve signal quality and range, while the PCI Express interface provides direct internal connection to the motherboard.

Suitable for

• Desktop PC upgrades to add Wi‑Fi 6E connectivity
• High-bandwidth tasks such as streaming UHD video and large file transfers
• Wireless gaming and low-latency online applications on tri-band networks
• Connecting Bluetooth peripherals (headphones, speakers, smartphones)

Key specifications

• Maximum throughput: up to 5400 Mbps (tri-band: 2.4 / 5 / 6 GHz)
• Wireless standard: 802.11 a/b/g/n/ac/ax (Wi‑Fi 6 / 6E)
• Bluetooth: version 5.2
• Chipset: Intel® AX210
• Antennas: 2 × external 6 dBi
• Interface: PCI Express
• Form factor: internal card; product colours: black, silver

How to use

Power off the desktop PC, open the case and insert the DMG-36 into an available PCI Express slot. Secure the card to the chassis, attach and position the external antennas for best reception, then close the case and power on the system. Install the appropriate drivers for the Intel® AX210 chipset via the operating system or the manufacturer’s website. After driver installation, configure Wi‑Fi network settings and pair Bluetooth devices through the OS network and Bluetooth settings.

Recommendations

For best performance, use the DMG-36 in systems with up-to-date drivers and place the antennas clear of large metal objects. Use a compatible Wi‑Fi 6E router to take full advantage of the 6 GHz band and tri-band throughput; for Bluetooth audio, keep the paired device within a typical indoor range to avoid dropouts.
