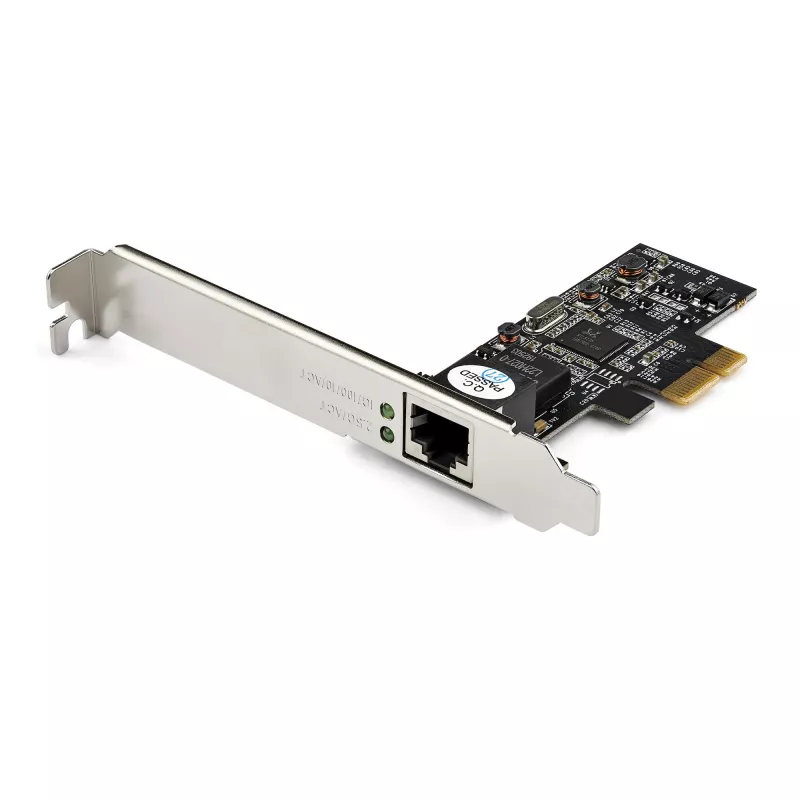

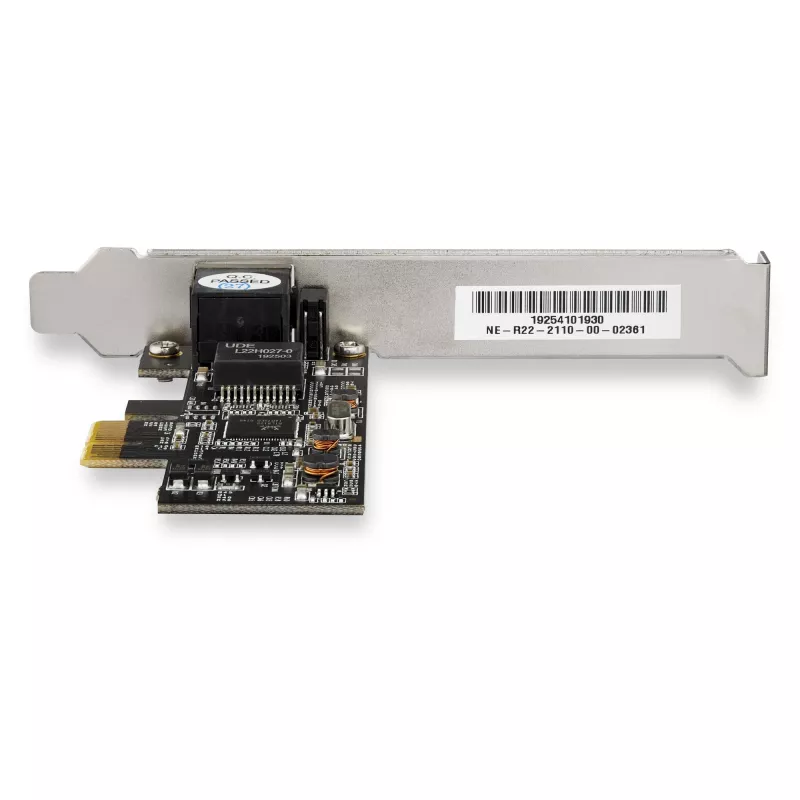

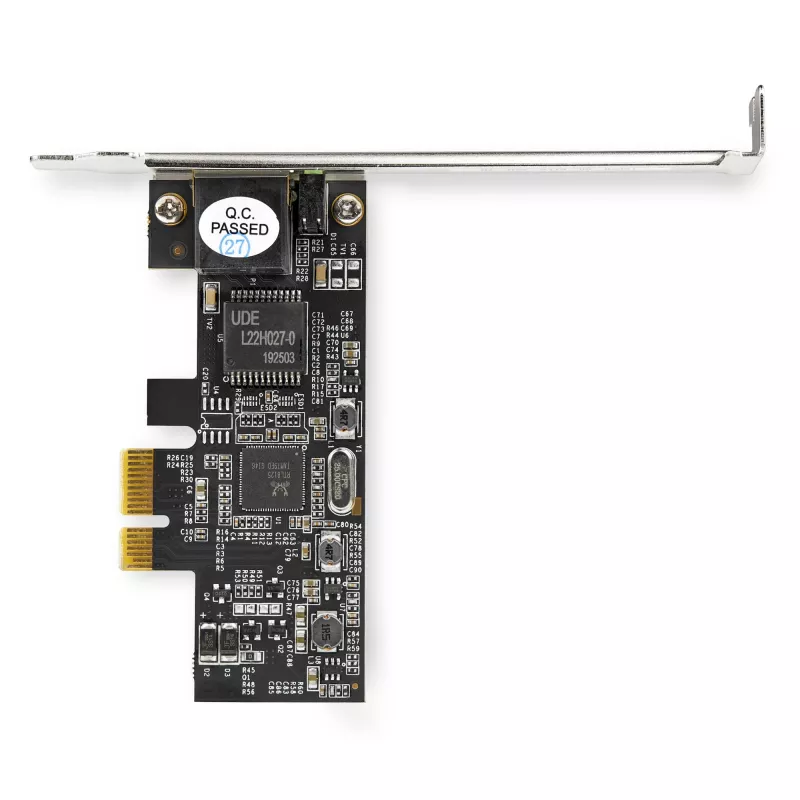

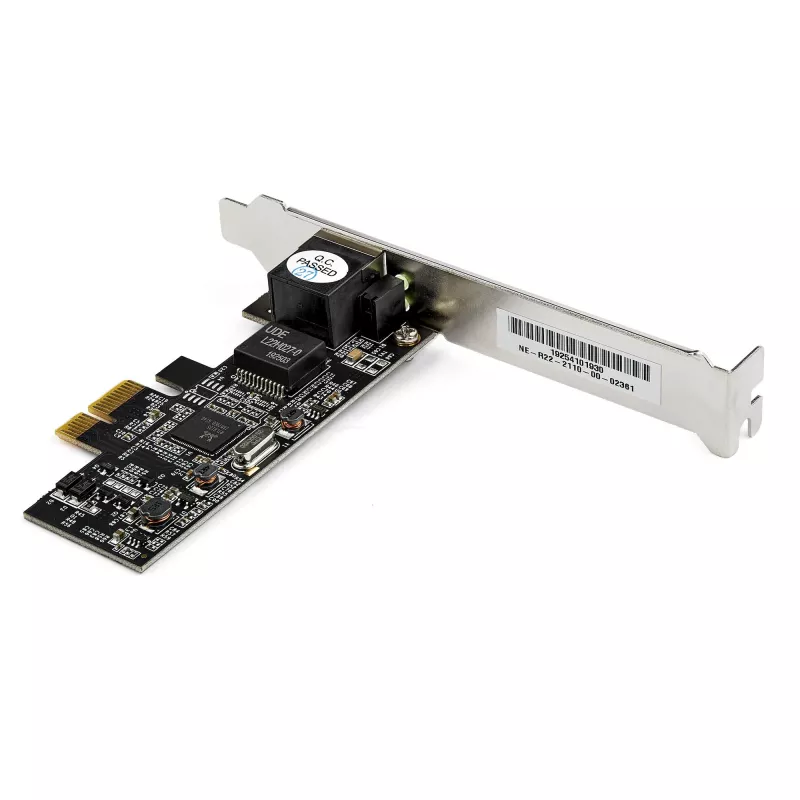

StarTech.com 2.5Gbps 2.5GBASE-T PCIe Network Card, Internal, Wired, PCI Express, Ethernet, 2500 Mbit/s, Black

Name: StarTech.com 2.5Gbps 2.5GBASE-T PCIe Network Card, Internal, Wired, PCI Express, Ethernet, 2500 Mbit/s, Black
Brand: StarTech
SKU: 368602
Price: 1023.00 ZAR
Availability: InStock

StarTech.com 2.5Gbps 2.5GBASE-T PCIe Network Card, Internal, Wired, PCI Express, Ethernet, 2500 Mbit/s, Black

R1,023

+R3 store credit

PDF

Qty

Add to Cart

Add to Wish List Compare this Product

PDF

Stock 9 Code 368602 Model ST2GPEX Warranty 2 Years

DepartmentNetworking Equipment

CategoryPCIe Network Cards

BrandStarTech

Shipping & Returns

Estimated delivery Friday, November 20

You will be kept updated through our detailed tracking system

Payment options

EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

Ask a question – the AI assistant answers instantly.

html .tab-container.product_extra.product_tabs.product_tabs-default:not(.dn-product-info-ready)>*{opacity:1!important;visibility:visible!important;pointer-events:auto!important}html .tab-container.product_extra.product_tabs.product_tabs-default:not(.dn-product-info-ready)::before,html .tab-container.product_extra.product_tabs.product_tabs-default:not(.dn-product-info-ready)::after{display:none!important}html .tab-container.product_extra.product_tabs.product_tabs-default:not(.dn-product-info-ready){min-height:0!important}

Description

PCI Express LAN Card | Windows ®, MacOS & Linux | Realtek RTL8125| x4 PCIe

This single-port 2.5Gbps PCIe network card offers a versatile and low-cost way to deploy 2.5GbE network connectivity. It adds one copper Ethernet port to your server or desktop computer and provides Multi-Gigabit Ethernet access to your network at four speeds: 2.5 Gbps, 1G, 100Mbps, 10Mbps.

Cost-Effective Multi-Gigabit Ethernet Solution

The 2.5GBASE-T NIC provides additional bandwidth using your existing Ethernet infrastructure to help reduce the cost of cabling upgrades. The card enables you to connect to 2.5GBASE-T and NBASE-T equipment at network speeds of 10Mbps, 100Mbps, 1Gbps, 2.5Gbps over your CAT5e cabling (up to 100 m depending on the network configuration).

Optimal Technology for Optimal Performance

The network adapter card adds one Ethernet port to your workstation through a x4 PCIe slot. It features 2.5GBASE-T technology, supporting advanced Multi-Gigabit systems, including Cisco campus switches and Aruba Networks access points. The network card also supports NBASE-T and additional features including 16K Jumbo Frames, Auto-MDIX and Wake-on-LAN (WoL).

Efficient Ethernet

The Realtek RTL8125 chipset, compliant with IEEE 802.3az and IEEE802.3u supports the PCIe 2.0 interface for PC embedded applications. It provides up to a 250% increase in data rate over Gigabit Ethernet and requires no changes to existing cable infrastructure.

The ST2GPEX is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- Multi-Gigabit Ethernet connectivity with four network speeds: 2.5G, 1G, 100Mbps, 10Mbps
- Compatible with both 2.5GBASE-T and NBASE-T specifications
- Supports 2.5Gbps network speeds on CAT5e cabling and CAT6a

StarTech.com 2.5Gbps 2.5GBASE-T PCIe Network Card. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 2500 Mbit/s. Product colour: Black

Key Highlights

Multi-Gigabit Ethernet connectivity with four network speeds: 2.5G, 1G, 100Mbps, 10Mbps
Compatible with both 2.5GBASE-T and NBASE-T specifications
Supports 2.5Gbps network speeds on CAT5e cabling and CAT6a
IEEE 802.3az and IEEE802.3u compliant energy efficient Realtek™ RTL8125 chipset

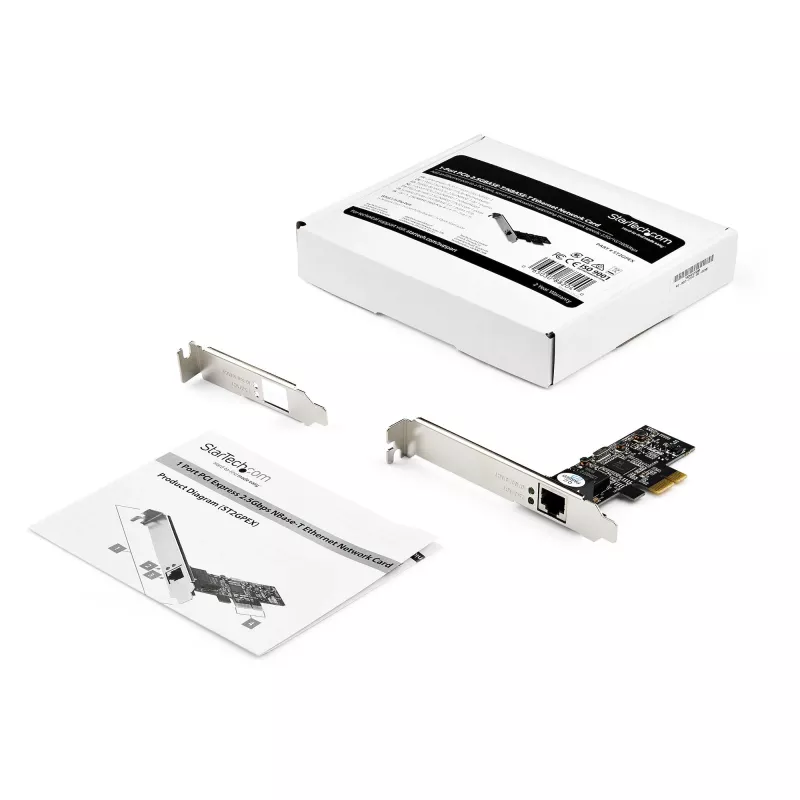

Flexible installation with both standard and low-profile brackets included
Wired
PCI Express Ethernet
2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet 2500 Mbit/s
Internal Component for: PC Chipset: Realtek RTL8125

Specifications

Auto MDIX IEEE

Yes

Certification

CE, FCC, REACH

Chipset

Realtek RTL8125

Compliance certificates

RoHS

Component for

Connectivity technology

Wired

Depth

80 mm

Ethernet interface type

2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

Ethernet LAN data rates

10,100,1000,2500 Mbit/s

Full duplex

Yes

Harmonized System (HS) code

85176990

Height

20 mm

Host interface

PCI Express

Interface

Ethernet

Internal

Yes

LED indicators

Yes

Linux operating systems supported

Yes

Low-profile bracket

Yes

Maximum data transfer rate

2500 Mbit/s

Networking standards

IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u

Operating relative humidity (H-H)

20 - 80%

Operating temperature (T-T)

5 - 50 °C

Package depth

142 mm

Package height

30 mm

Package width

170 mm

Product colour

Black

Quick start guide

Yes

Server operating systems supported

Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2016

Storage temperature (T-T)

-20 - 60 °C

Weight

138 g

Width

120 mm

Windows operating systems supported

Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
