Internal RS-232 Adapter DeLOCK 89592

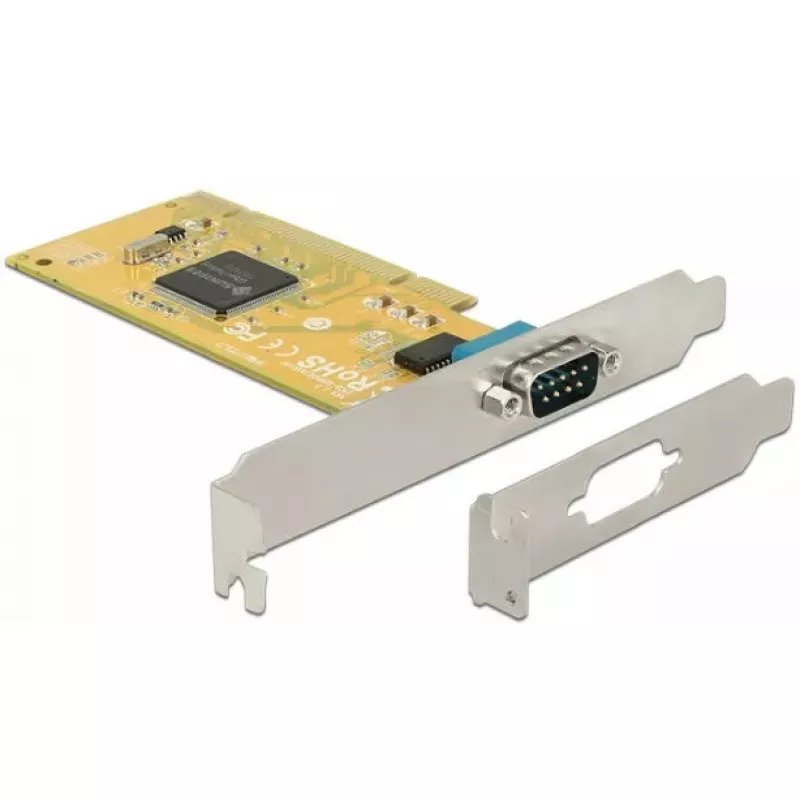

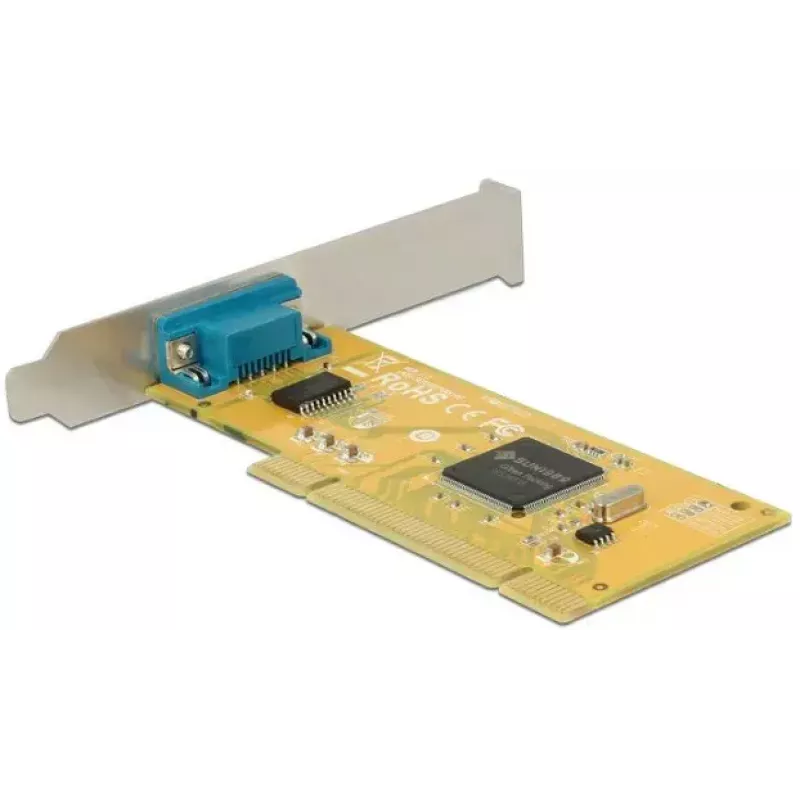

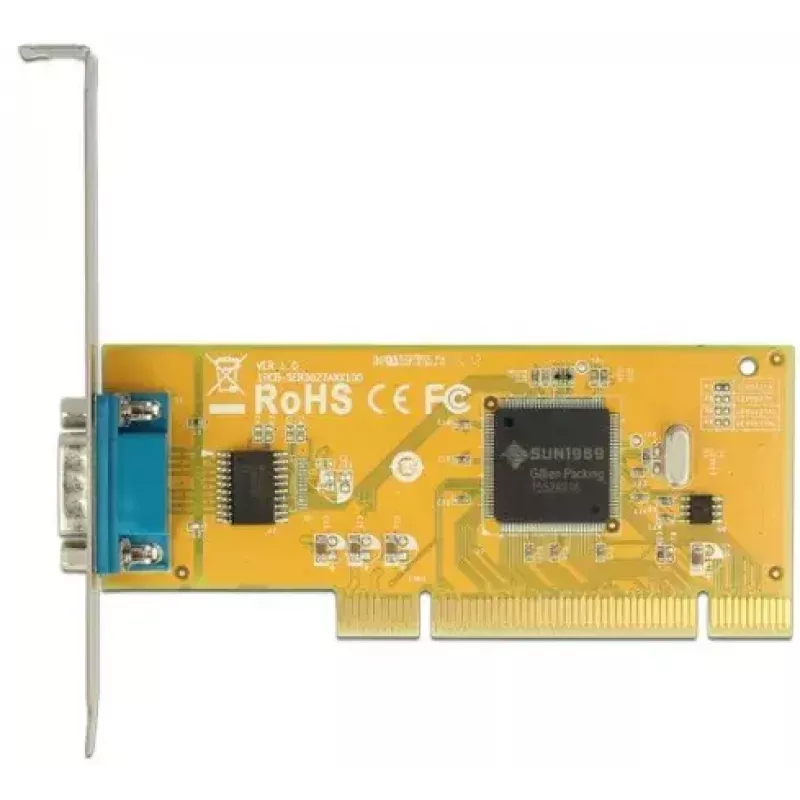

The Internal RS-232 Adapter DeLOCK 89592 adds one external serial RS-232 port to a PC via a 32-bit PCI interface. The card uses the SUN1989 chipset, provides a DB9 male external connector and includes a low profile bracket for installation in compact systems. It supports standard serial signals and offers ESD protection and a FIFO buffer for reliable data transmission.

Advantages

The adapter supports PCI 3.0/2.3/2.2/2.1 specifications at 33 MHz and is compatible with both 32-bit and 64-bit PCI slots as well as 3.3 V and 5 V power. It features ±2 kV ESD protection on all serial signals, a 128-byte FIFO buffer, and compatibility with the 16C950 UART standard. The card delivers data transfer rates up to 115.2 kb/s and operates in typical PC temperature and humidity ranges.

Suitable for

Key specifications

How to use

Install the card into an available 32-bit PCI slot on the motherboard, secure the bracket and connect the external RS-232 device to the DB9 male connector. If installing in a compact case, replace the full-height bracket with the included low profile bracket before mounting. After hardware installation, boot the system and install any necessary drivers for your operating system (the product is compatible with Windows 10, 8.1 and 7). Verify the COM port appears in the device manager and configure serial parameters (baud rate, parity, data bits, stop bits) according to the connected device's requirements.

Recommendations

For stable serial communication, use shielded RS-232 cables and ensure proper grounding of connected equipment. Avoid exposing the card to temperatures or humidity outside the specified ranges and handle the board using anti-static precautions during installation.
