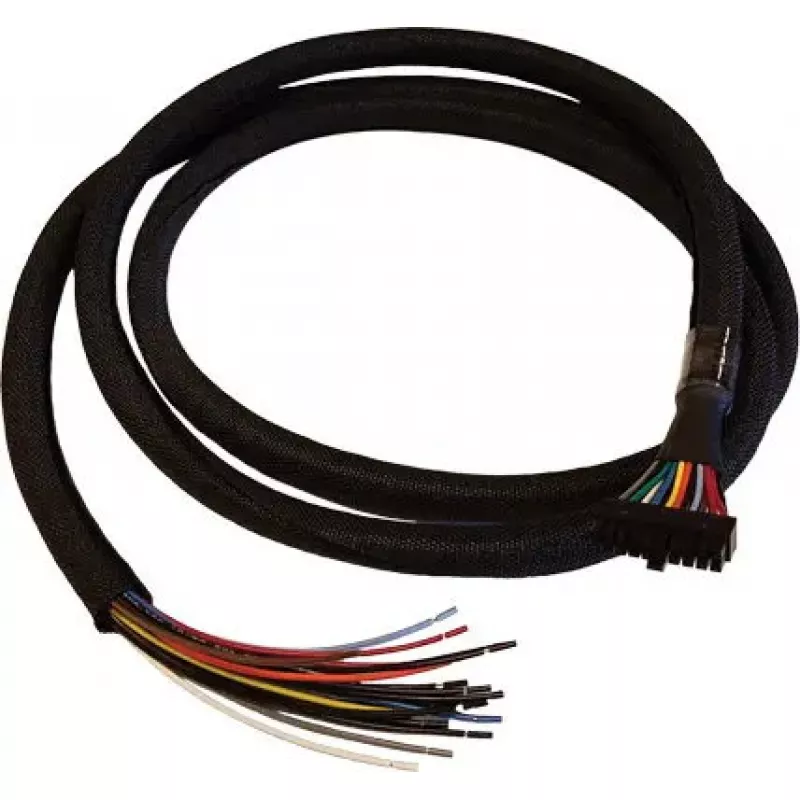

Internal power cable CradlePoint 170712-000 — ATX 20-pin, 1.98 m, black

CradlePoint 170712-000 is an internal power cable designed for devices that accept a 20-pin ATX connection. The single-piece, black cable measures 1.98 m and provides an internal wiring solution for network equipment, small form-factor systems, or computing hardware that use an ATX 20-pin power interface. It is intended for replacing, extending or reinstalling internal ATX power leads in compatible devices.

Advantages

The cable offers a standard ATX 20-pin interface for straightforward compatibility with equipment that uses this connector format. With a 1.98 m length, it provides additional reach for flexible internal routing and component placement inside chassis or docking solutions. The single-piece construction reduces the number of connection points and potential failure locations, and the black finish supports a neutral, professional appearance inside most enclosures.

Suitable for

• Internal power routing in network appliances and routers with a 20-pin ATX input
• Replacing worn or damaged ATX 20-pin leads in computing or embedded systems
• Extending reach for internal installations where original wiring is too short
• Test benches and service environments requiring a reliable internal power connection

Key specifications

• Connector type: ATX 20-pin (dual row)
• Length: 1.98 m
• Color: black
• Construction: single-piece internal power cable

How to use

Ensure power is removed from the host device before connecting or disconnecting the cable. Align the ATX 20-pin connector with the matching header on the device and press evenly until fully seated. Route the cable inside the chassis to avoid sharp edges, moving parts and high-temperature components. If replacing an existing lead, verify pin orientation and any keyed features to prevent misalignment. After installation, restore power and verify that the device powers on and operates normally.

Recommendations

Use the cable only with compatible equipment designed to accept a 20-pin ATX internal power connector. Avoid excessive bending or pinching and secure the cable with appropriate ties or clips to prevent strain. If uncertain about compatibility or wiring, consult device documentation or a qualified technician before use.
