Braided Cable Extension Kit Kolink Core Adept — 6-piece PSU & motherboard extensions, PET jacket, copper conductors, lengths 300–350 mm

Kolink Core Adept braided cable extension kit provides six sleeved power extensions to simplify cable routing and improve the visual layout of a desktop PC. The set includes one 20+4‑pin ATX (300 mm), one 8‑pin CPU (300 mm), one 4+4‑pin CPU (300 mm) and three 6+2‑pin PCIe (350 mm) extensions. Each cable uses 16AWG copper conductors and a PET (polyethylene terephthalate) braided jacket, with male-to-female connectors designed to connect between a power supply and components or modular PSU cables.

Advantages

The PET braided jacket offers a clean, flexible finish without heatshrink and resists wear while maintaining bendability for tighter routing. Copper conductors with 16AWG gauge provide improved conductivity and higher temperature tolerance compared with thinner wire, making these extensions suitable for high-wattage components. Pre-installed cable combs and an included spare per cable aid neat, consistent cable alignment and faster installation. The kit supports modular setups by extending PSU-to-component connections where original cables are short or difficult to route.

Suitable for

• Custom PC builds requiring extended reach between PSU and motherboard or graphics cards
• Systems with modular power supplies where connectors need tidier routing
• Showcase or windowed cases where sleeved cables improve aesthetics
• High-wattage GPU and CPU configurations that benefit from 16AWG conductors

Key specifications

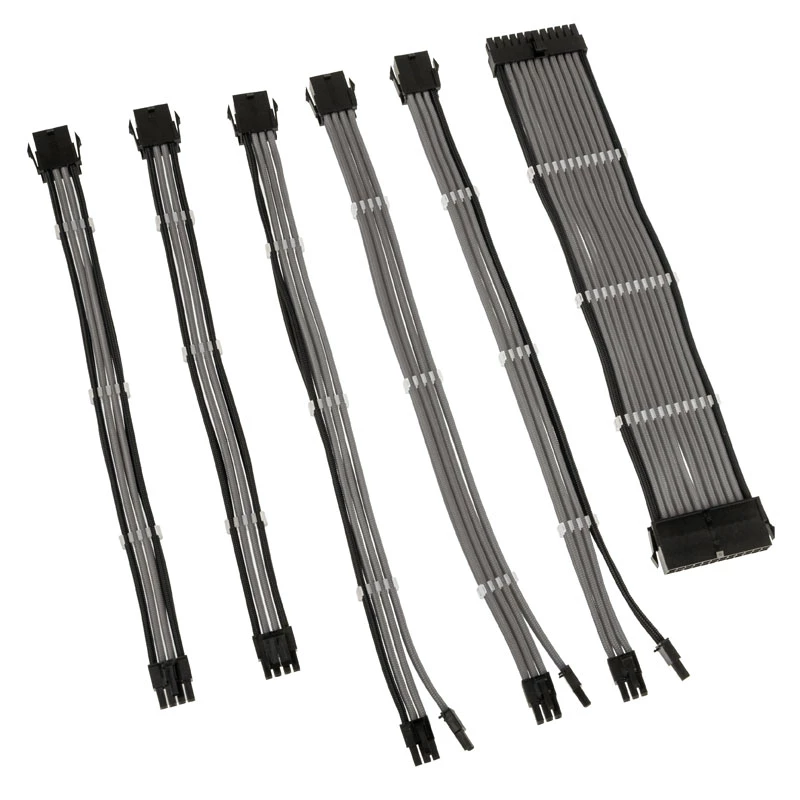

• Contents: 1 × 20+4‑pin ATX (300 mm), 1 × 8‑pin CPU (300 mm), 1 × 4+4‑pin CPU (300 mm), 3 × 6+2‑pin PCIe (350 mm)
• Conductor material and gauge: copper, 16AWG
• Jacket material: PET braided sleeving (polyethylene terephthalate)
• Connector orientation: male-to-female extensions for PSU-to-component connections

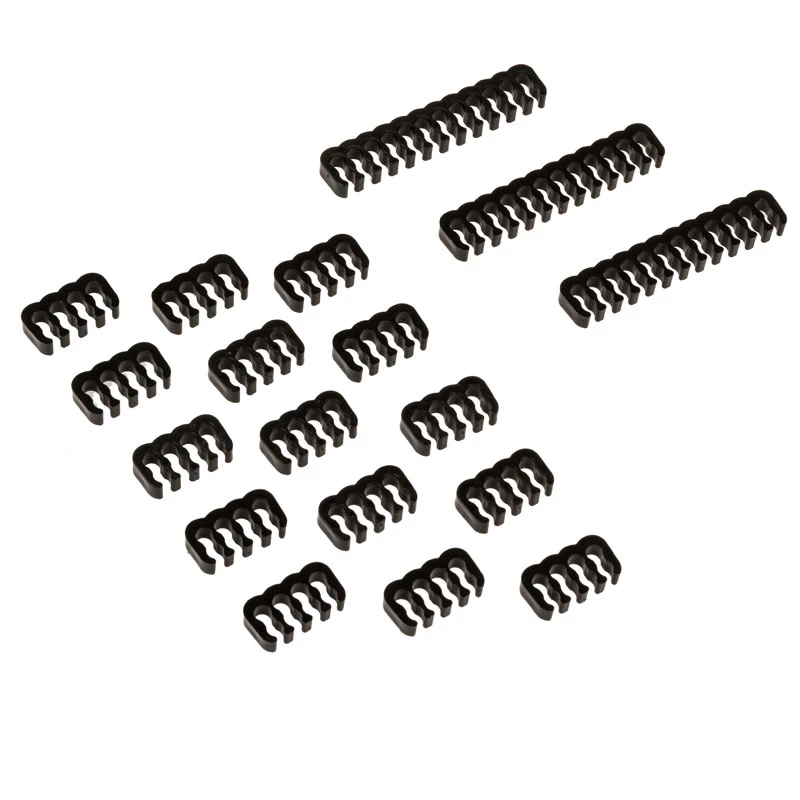

• Cable management: three pre-installed combs per cable plus one spare comb per cable included
• Lengths: 300 mm for ATX and CPU cables, 350 mm for PCIe cables

How to use

Power down the system and disconnect the power supply from mains before installing these extensions. Connect the male end of each extension to the corresponding cable or port on the power supply or modular PSU cable, then connect the female end to the motherboard, CPU power connector, or graphics card as required. Ensure each connector seats fully and that pin orientation matches the device header. Route the braided cables through case channels or behind the motherboard tray and use the included combs to align individual conductors for a tidy appearance. Reconnect mains power only after confirming all connections are secure.

Recommendations

Use these extensions with power supplies and components that match standard ATX/PCIe pinouts. For high-current systems, verify that the PSU and cables meet the total power requirements of the CPU and GPU. Avoid excessive bending or sharp kinks near connector ends and maintain secure seating to prevent intermittent power delivery.
