Internal mSATA Adapter DeLOCK 62434

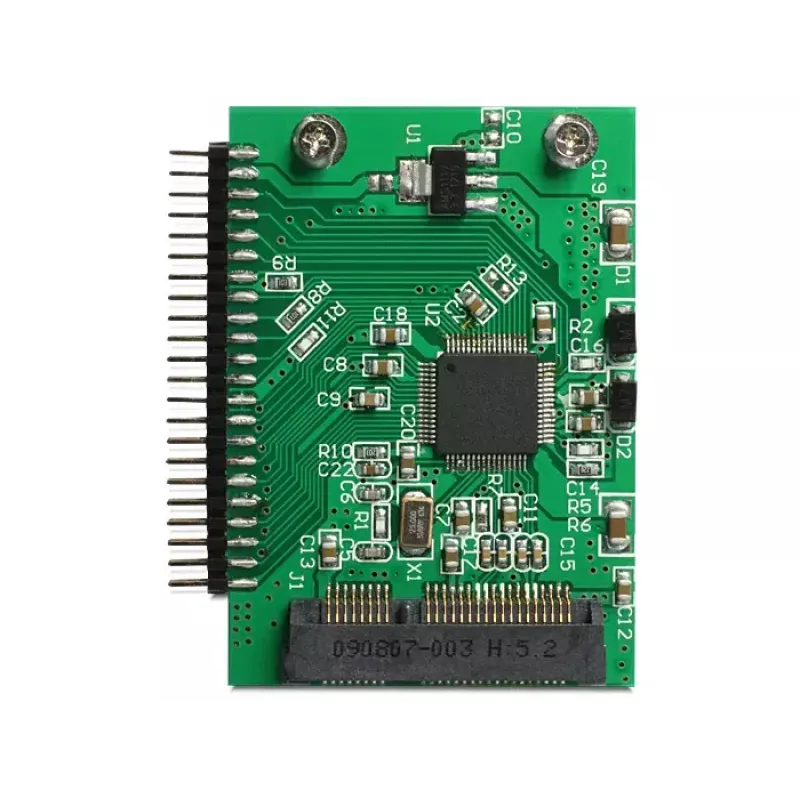

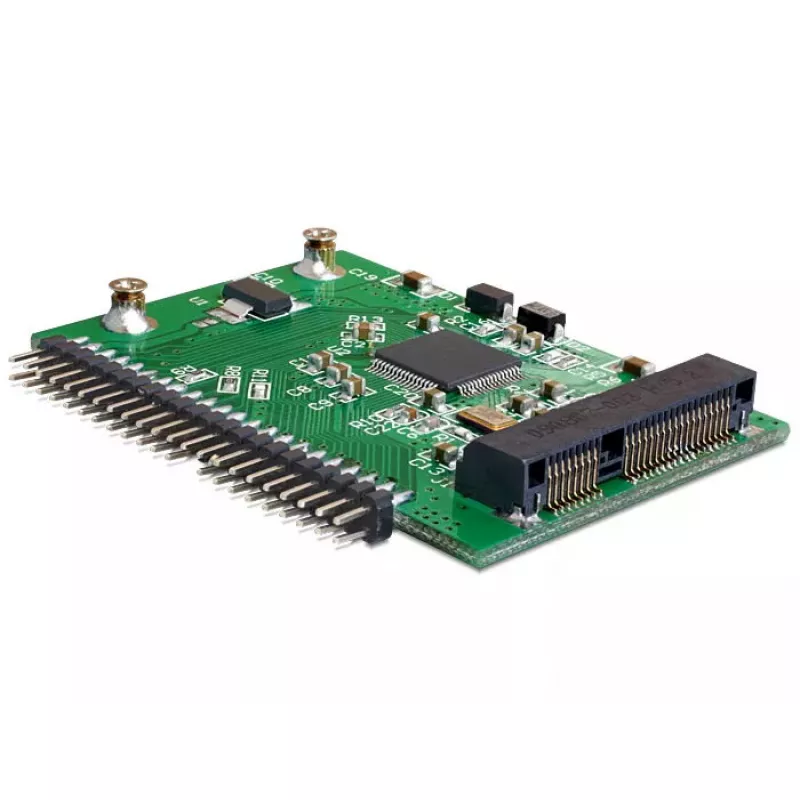

The DeLOCK 62434 internal mSATA adapter with JM20330 chipset allows installation of an mSATA SSD into systems that provide an IDE (44‑pin) interface. The compact green PCB (57 mm x 40 mm) converts the IDE connection to an mSATA output, enabling use of an mSATA drive in place of a 2.5" HDD for systems that require an IDE interface.

Advantages

This adapter offers a reliable wired connection between an IDE host and an mSATA SSD, supporting straightforward installation into internal drive bays. Its small form factor and standard 44‑pin IDE connector make it compatible with legacy systems that lack native mSATA or SATA ports. The built‑in JM20330 chipset handles the protocol conversion without additional cables.

Suitable for

• Upgrading legacy systems to use mSATA SSDs where only IDE (44‑pin) is available
• Replacing a 2.5" HDD with an mSATA drive in IDE‑based devices
• Embedded systems and industrial PCs with internal IDE connectors

Key specifications

• Model: DeLOCK 62434
• Chipset: JM20330
• Host interface: IDE (44‑pin)
• Output interface: mSATA
• Form factor / dimensions: 57 mm x 40 mm
• Internal installation: Yes
• Colour: Green

How to use

Install the mSATA SSD onto the adapter's mSATA connector according to the drive's mounting instructions. Insert the adapter into the device's IDE 44‑pin socket and secure it as required by the system. Power on the device and verify that the BIOS/firmware detects the connected mSATA drive as a storage device. No additional drivers are typically required for basic detection, though consult the system documentation for specific BIOS settings or jumper configurations.

Recommendations

Use the adapter only in systems that provide a standard 44‑pin IDE internal connector. Ensure proper grounding and power off the host before installation. For best performance, choose an mSATA SSD with appropriate endurance and capacity for the intended application, and back up data before migrating from an existing drive.
