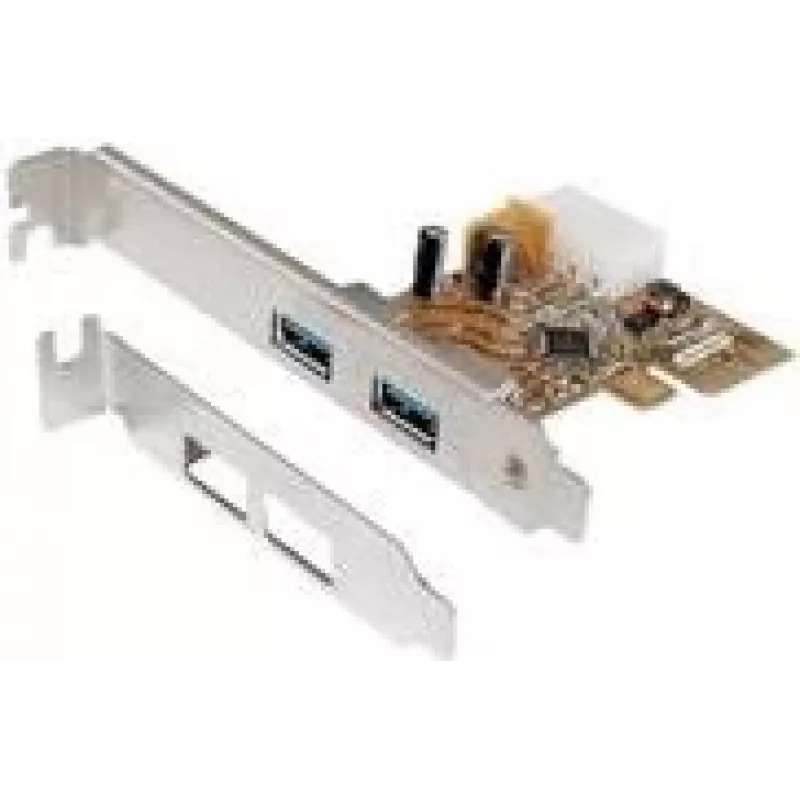

Interface Card EXSYS EX-11082-2 Internal USB 3.2 Gen 1

The EXSYS EX-11082-2 Internal USB 3.2 Gen 1 interface card provides two external SuperSpeed USB 3.0 ports via a PCI-Express slot. It is designed to add two additional USB 1.1, 2.0 or 3.0 devices to a workstation, desktop or server, supporting USB 1.1 Low-Speed (1.5 Mbps), Full-Speed (12 Mbps), USB 2.0 High-Speed (480 Mbps) and USB 3.0 SuperSpeed (5 Gbps). The card is suitable for external storage enclosures, digital cameras, webcams, scanners and other USB peripherals. For full 900 mA power on the external USB 3.0 ports, a connection to the PC power supply is required. A low-profile bracket is included for installation in slim cases up to 8 cm internal height.

Advantages

The EX-11082-2 is compatible with USB 3.0 and Intel xHCI specifications and supports standard USB transfer types including control, bulk, interrupt and isochronous. It supports up to 123 devices, complies with PCI-Express Gen2 specifications, and offers hot-swapping and plug-and-play functionality. Its internal design and included low-profile bracket enable flexible installation in a variety of desktop and server systems.

Suitable for

• Adding external storage drives and enclosures
• Connecting webcams, digital cameras and scanners
• Expanding USB ports on workstations, desktops and servers
• Systems requiring additional SuperSpeed USB connectivity

Key specifications

• Model: EXSYS EX-11082-2
• Interface: PCI-Express (PCIe Gen2 compatible)
• External ports: 2 × USB 3.0 SuperSpeed (backward compatible with USB 2.0/1.1)
• USB rates: 1.5 Mbps (Low), 12 Mbps (Full), 480 Mbps (High), 5 Gbps (SuperSpeed)
• Power: requires PC power-supply connection to provide 900 mA on external ports
• Device support: up to 123 USB devices
• Includes: low-profile bracket for slim cases (max internal height 8 cm)
• Weight: approximately 120 g
• Brand/MPN/EAN: Exsys / EX-11082-2 / 4718359118296

How to use

Install the EX-11082-2 into an available PCI-Express slot on your desktop or server following the system manufacturer's safety procedures. If your case is slim, replace the full-height bracket with the included low-profile bracket. Connect the card to the PC power supply if you need to supply up to 900 mA to external USB 3.0 devices. After hardware installation, power on the system and allow the operating system to detect the card; it should operate as a plug-and-play USB controller if drivers are present or supported by the OS.

Recommendations

Use high-quality USB 3.0 cables for best SuperSpeed performance and connect the power lead when using bus-powered external drives to ensure reliable operation. Keep device drivers up to date and insert or remove devices while the system is powered on only when supported by your operating system to avoid data loss.
