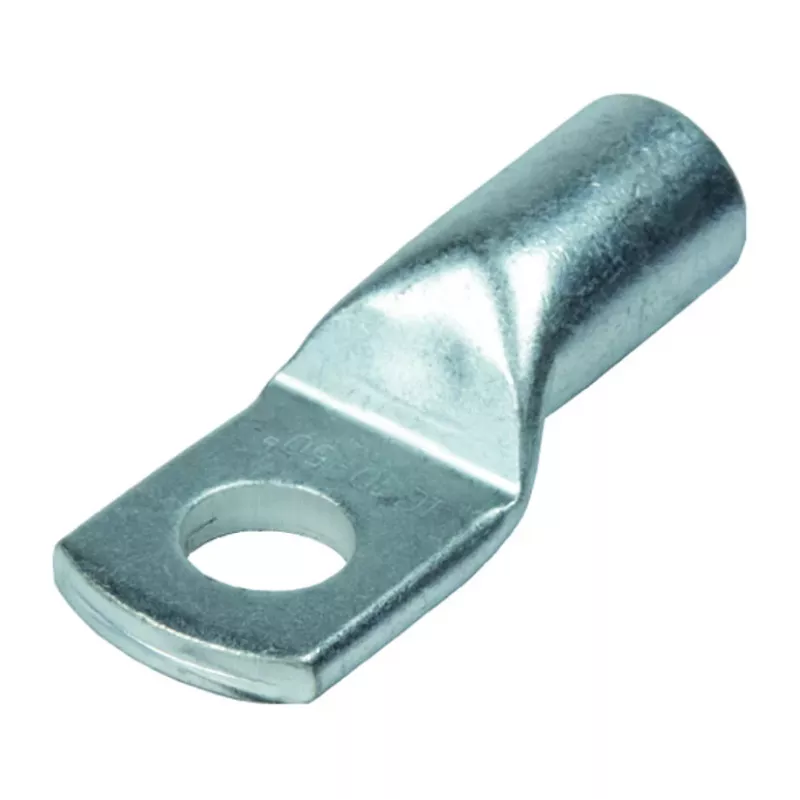

Intercable ICR12016 Tubular Cable Lug, 120mm², M16 Bolt Hole, Tinned, R-Series

For electricians and industrial maintenance teams, achieving a reliable, low-resistance connection on high-current cables is non-negotiable. The Intercable ICR12016 tubular cable lug provides exactly that for 120mm² stranded copper conductors, with a secure M16 bolt hole and a protective tin plating that ensures long-term performance in demanding environments.

Key specifications

• Product Type: Tubular Cable Lug
• Cable Cross-Section Area: 120 mm²
• Bolt Hole Diameter: M16 (16 mm)
• Material: Electrolytic Copper
• Surface Finish: Tin-plated (Tinned)
• Series: R-Series
• Connection Method: Crimp
• Conductor Compatibility: Stranded Copper Conductors
• Operating Temperature Range: -40°C to +125°C
• Standards Compliance: DIN 46235
• Manufacturer Part Number: ICR12016
• EAN: 8014212192134

Why choose it

This cable lug is manufactured from high-quality electrolytic copper and fully tinned, offering excellent corrosion resistance and stable electrical conductivity. It meets DIN 46235 standards, ensuring dimensional accuracy and reliable crimping performance. Whether for power distribution, industrial wiring, or heavy-duty electrical installations, the Intercable ICR12016 delivers a durable, maintenance-free connection.

Ideal use cases

• Power distribution panels and switchgear
• Industrial machinery and control cabinets
• Electrical installations with high current requirements
• Grounding and bonding applications

Good to know

Use a compatible crimp tool (hexagonal or indent type) with the appropriate die for 120mm² conductors. The M16 bolt hole fits standard metric bolts and studs. Always follow manufacturer instructions and applicable electrical codes when terminating cables.
