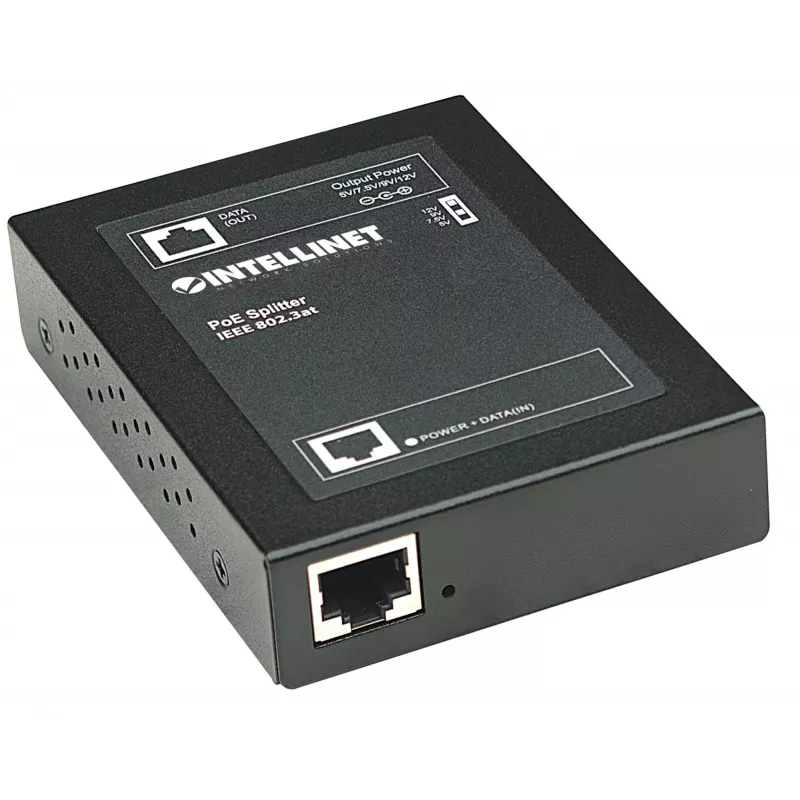

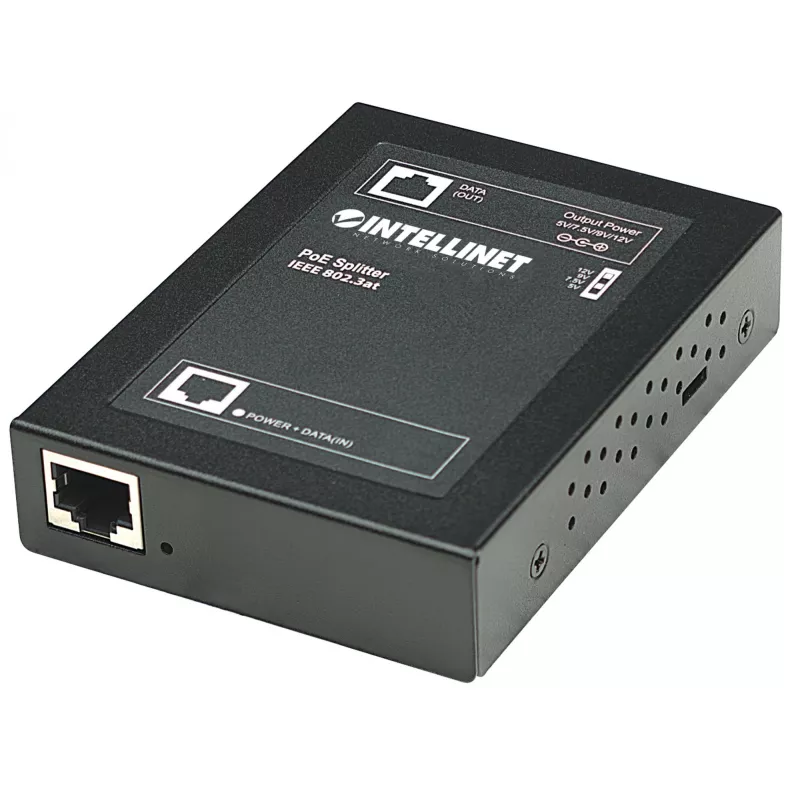

Intellinet Power over Ethernet (PoE+) Splitter, IEEE802.3at, 5, 7.5, 9 or 12 V DC output voltage

Deliver Power over Ethernet to remote devices.

The INTELLINET NETWORK SOLUTIONS PoE+ Splitter allows you to deliver both data and electrical power to non-PoE Ethernet-enabled products using the Cat5 Ethernet cable. Using the PoE Splitter, you can take advantage of Power over Ethernet and place Ethernet-enabled products, such as Network Cameras and Wireless Access Points*, where power outlets are not readily available.

Simplify Installation for an Ethernet-based Device
Having to manage only an Ethernet cable simplifies the physical installation of the device. Without having to worry about the availability of a power source, you can mount Ethernet-enabled products on a ceiling or outdoors, up to 100m (328 feet)** from a power source. The PoE Splitter is simple to install and requires no tools or software.

802.3af Compliant Power over Ethernet
The PoE Splitter can be used to complement any PoE injector unit or midspan switch to provide small to medium-sized businesses a complete end-to-end PoE solution. This unit supports 802.3af and 802.3at, ensuring compatibility with other 802.3af/t PoE-compliant injector units or PSE switches.

Adjustable Power Output

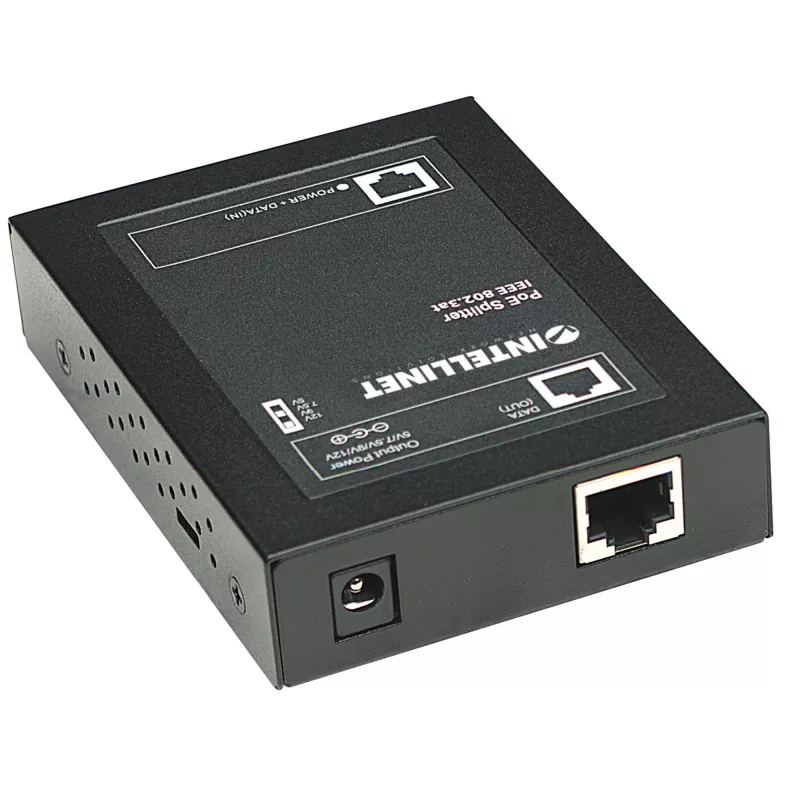

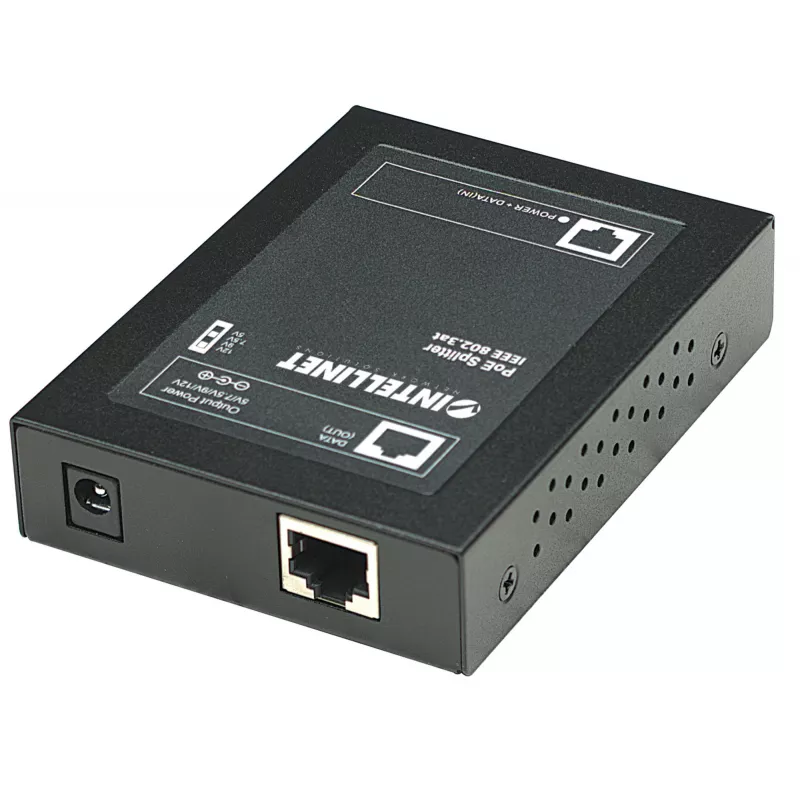

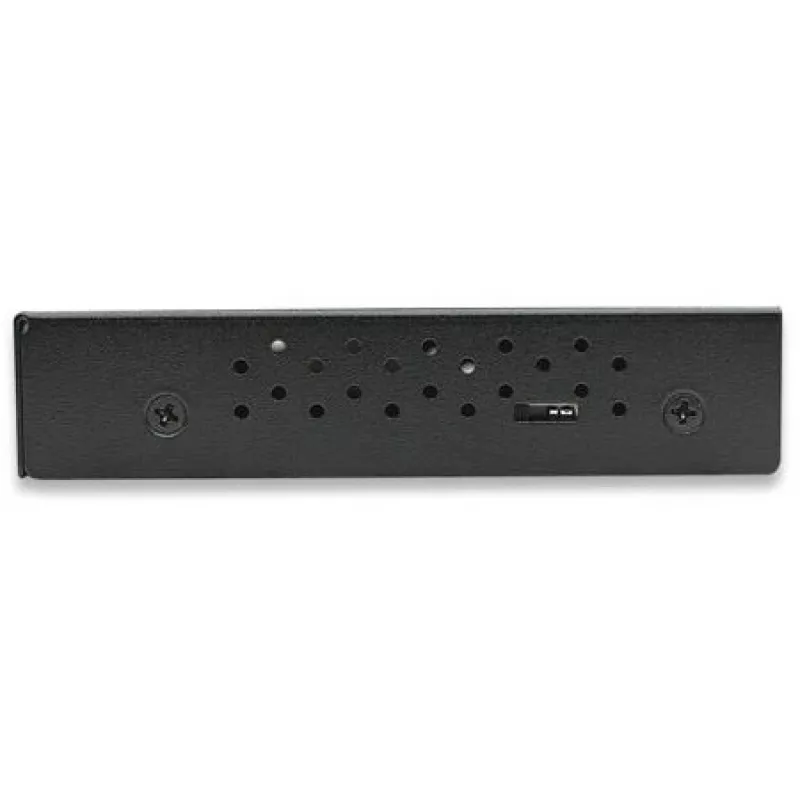

During the setup, the PoE Splitter can be set to power any compatible 5 V, 7.5 V, 9 V or 12 V Ethernet-enabled device via the volt selector located on the side.

* Contact your INTELLINET NETWORK SOLUTIONS reseller for ordering information.
** Maximum distance per 802.3u specifications.

Intellinet Power over Ethernet (PoE+) Splitter, IEEE802.3at, 5, 7.5, 9 or 12 V DC output voltage. Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, Cabling technology: 10Base-T, 100Base-TX, Cable standard: Cat5. Connector gender: Female. Compliance certificates: CE, Federal Communications Commission (FCC), Certification: FCC Class A, CE. Width: 74 mm, Depth: 102 mm, Height: 22 mm. Cables included: AC, Quantity per pack: 1 pc(s)
