Intellinet 19 inch 1U Rackmount 9-Way PDU 16A On/Off 2m Power Cord

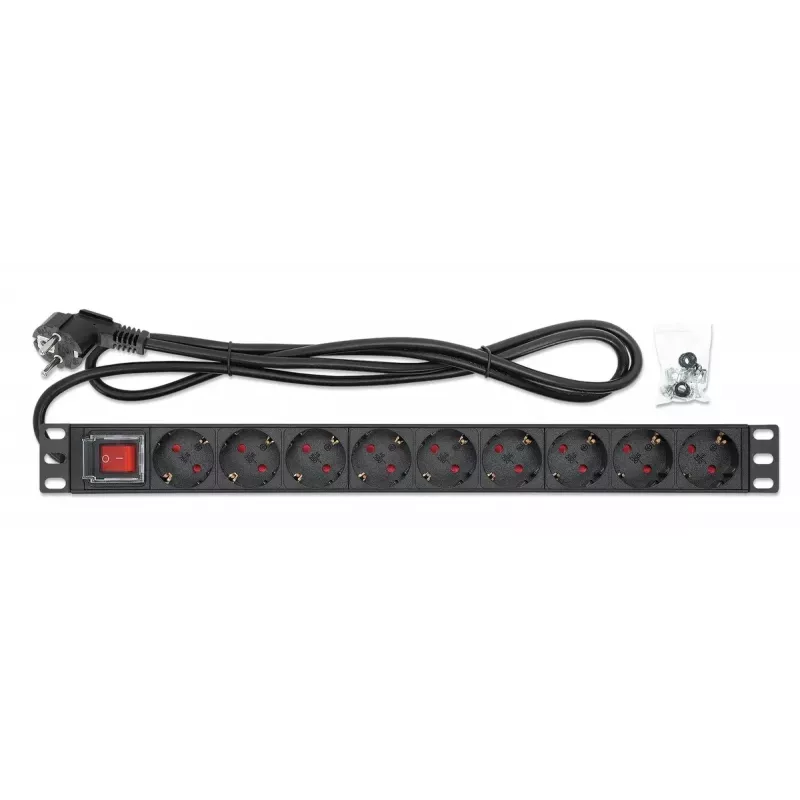

Intellinet 19" 1U Rackmount 9-Way PDU provides centralized AC power distribution for 19-inch equipment racks. The unit offers nine EU Type E/F outlets in a black aluminium housing and occupies 1U of rack space. It includes a 2 m power cord and an illuminated on/off switch with a hinged protective cover for controlling all connected devices.

Advantages

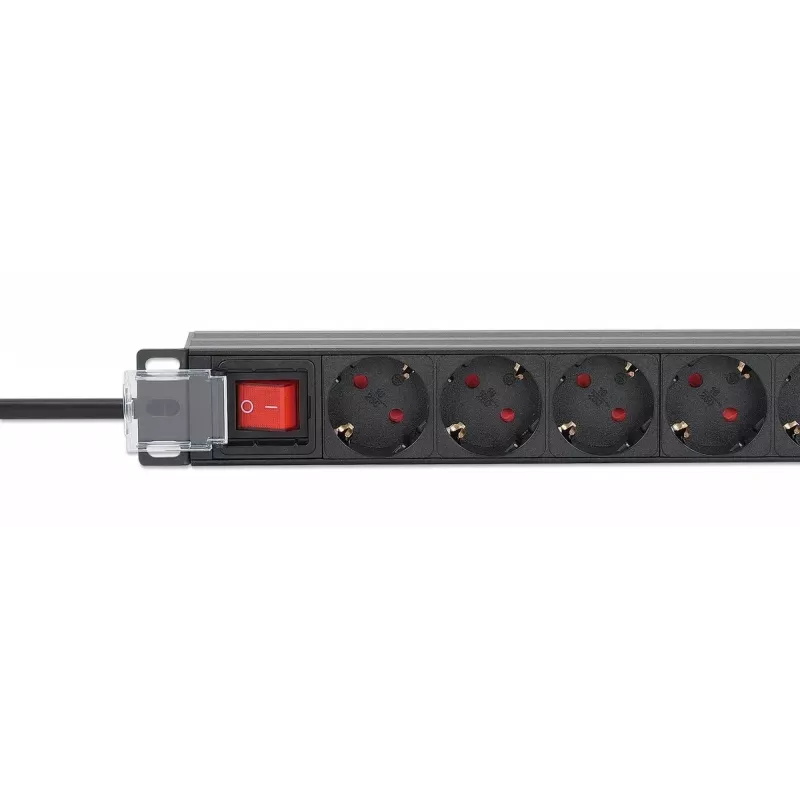

The PDU supports up to 16 A and distributes power to nine AC outlets, making it suitable for networking, telecom, surveillance and AV equipment. Its 1U rackmount format and durable aluminium construction optimize space and provide reliable mounting in standard 19" racks. The illuminated switch with protective cover allows one-touch control while reducing the risk of accidental shutdowns.

Suitable for

• Data center and server racks
• Networking closets and telecom cabinets
• Surveillance and security system installations
• Audio-visual racks and control systems
• Small office or lab equipment racks

Key specifications

• Brand: INTELLINET
• Model / MPN: 715133
• EAN: 0766623715133
• Form factor: 19" 1U rackmount
• AC outlets: 9 (EU Type E/F)
• Nominal input voltage: 220–250 V
• Maximum current: 16 A
• Power cord length: 2 m
• Colour: Black
• Weight: 0.8 kg
• Certifications: CE, RoHS

How to use

Install the PDU into a standard 19" rack using the 1U mounting space and secure it with appropriate screws. Connect the PDU's mains cord to a compatible grounded outlet supplying 220–250 V. Plug devices into the nine EU Type E/F outlets. Use the illuminated on/off switch with hinged cover to power all connected equipment simultaneously; keep the cover closed to avoid accidental operation.

Recommendations

Do not exceed the maximum current rating of 16 A. Distribute high-power devices across multiple outlets or PDUs if necessary. Ensure proper grounding and compliance with local electrical codes. Periodically inspect the power cord and outlets for damage and avoid overloading a single outlet.
