Intellinet 19 inch 1U Rackmount 8-Output C19 Power Distribution Unit (PDU) With Removable Power Cable and Rear C20 Input

The Intellinet 19" 1U Rackmount Power Distribution Unit provides reliable power distribution in server racks and network cabinets. It features eight C19 outlets, a removable power cable that plugs into the rear C20 input, and a compact 1U rack form factor designed to save space in 19" racks. The unit supports a nominal input voltage range of 110–250 V and a maximum current of 16 A, with a 2 m cable for flexible installation.

Advantages

The PDU offers eight C19 outputs for high-current devices while maintaining a low 1U profile suitable for dense rack installations. A removable power cable simplifies replacement and routing, and the rear C20 input keeps front access clear. Its wide input voltage range (110–250 V) and 16 A maximum current make it compatible with diverse IT equipment and international power environments.

Suitable for

• Server racks and network cabinets
• High-density rack installations with limited space
• Powering servers, switches, PDUs or other equipment requiring C19 outlets
• Environments requiring a removable power cable for maintenance or replacement

Key specifications

• Form factor: 19" 1U rackmount

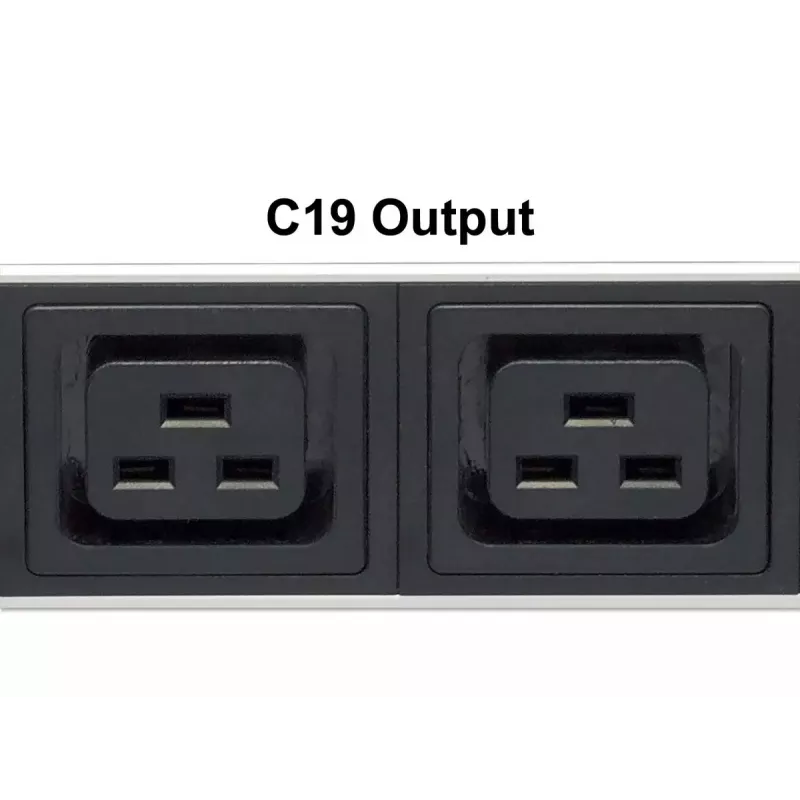

• AC outlets quantity: 8 C19 outlets
• Nominal input voltage: 110 - 250 V
• Maximum current: 16 A

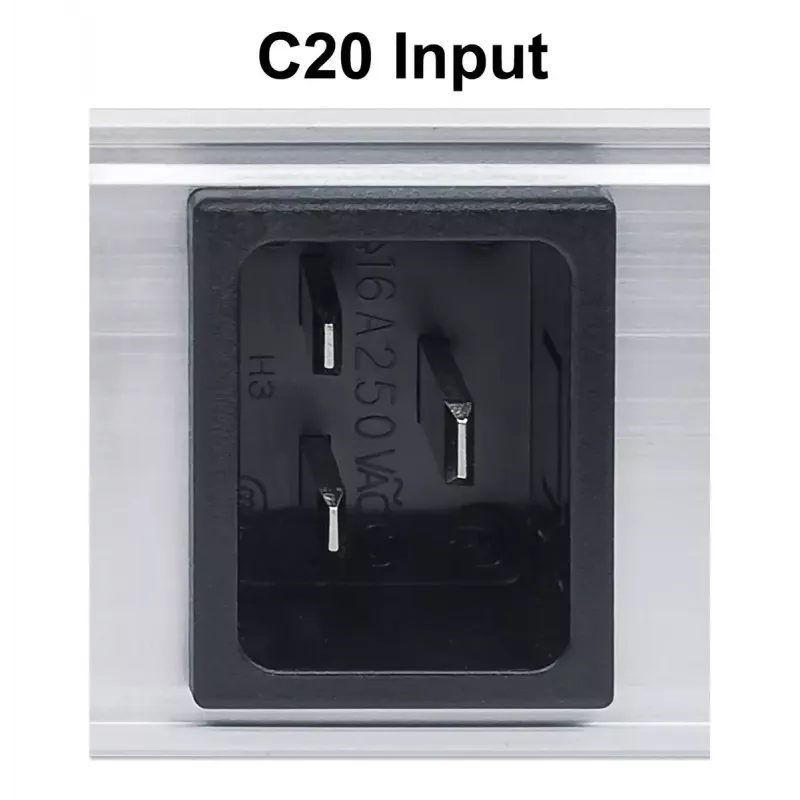

• Rear input: C20 (removable power cable included, 2 m)
• Dimensions (width × height × depth): 485.2 mm × 45 mm × 45 mm
• Product colour: Black, Silver
• Brand: INTELLINET, MPN: 163613

How to use

Mount the unit in a standard 19" rack occupying one U of space. Connect the removable power cable to a compatible mains source via the rear C20 input, then plug devices into the eight C19 outlets. Distribute connected equipment to avoid exceeding the 16 A maximum current and verify nominal input voltage compatibility (110–250 V) before operation. Secure cable routing to prevent strain on connectors.

Recommendations

Balance load across outlets, avoid surpassing the 16 A rating, and perform regular visual inspections of the removable power cable and connectors. Use the PDU in well-ventilated racks and follow local electrical codes when integrating the unit into your infrastructure.
